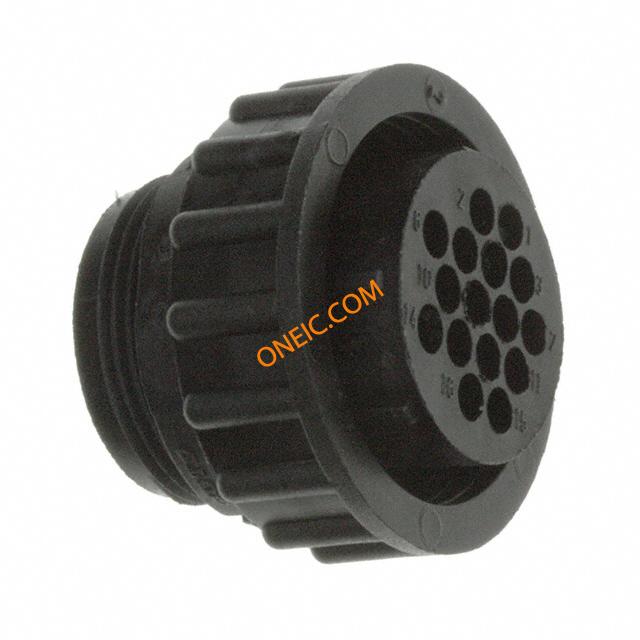

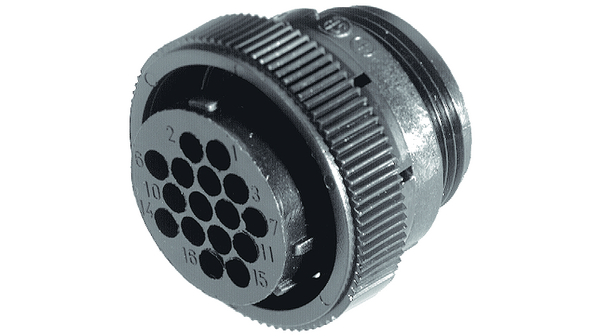

182642-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn CPC SKT 16 POS Crimp ST Cable Mount 16 Terminal 1 Port CPC Connectors CONN PLUG CPC 16POS FREE HANGING 16 Pole Male Straight Cable Mount Industrial & Automation Circular Connector with Female Contacts Standard Circular Connector 17-16 PLUG Conn CPC SKT 16 POS Crimp ST Cable Mount 16 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 16PlugFor Use With Socket ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC PLUG, FREE, SOCKET CONTACT, 16WAY 16waycablesktcontactmntplug13A,ser1 Connector: circular; Series: CPC Series 1; plug; female; PIN:16 Plug CPC 1 16P Male 17, 182642-1, TE Connectivity TE Connectivity 16路 自由悬挂 直向 连接器 插座 17-16 CPC PLUG |
| 分类 |
商业参数
| 商标名 | CPC Series 1 | 产品类别 | Standard Circular Connector |
| 标准包装数量 | Bulk | 工厂包装数量 | 100 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 合规性 | No | UL列名 | Recognized |
| 抗辐射加固 | No | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 认证机构标志 | Yes |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 额定电压 | :250V | 工作电压 | :250V |
| 通道数量 | 16 | 最大额定电流 | :13A |
| 绝缘电阻 | :5000Mohm | 连接器类型 - 电压输入 | w/o terminals |
机械参数
| 密封型 | No | 重量 | 0.014 |
| 包装方式 | Bulk | 出线方向 | No |
| 外壳尺寸 | 17 | 方向 | Keyed |
| 外壳样式 | Plug | 端接方式 | Crimp |
| 螺纹尺寸 | 15/16-20 UNEF-2A | 触点形式 | 16Signal |
| 触点尺寸 | 16 | 触头类型 | Crimp |
| 外壳颜色 | Black | 安装类型 | Cable Mount |
| 连接器类型 | Plug for Female Contacts | 紧固类型 | Threaded |
| 安装样式 | Free Hanging | 封装形式 | size 17 |
| 连接器样式 | Plug | 插入角度 | :17-16 |
| 锁定特性 | threaded joint, internal thread | 本体材料 | :Glass Filled Nylon (Polyamide) |
| 壳体材料 | Thermoplastic | 包装数量 | 25 |
| 连接器 - 电缆 | plug | 端接样式 | Wire |
| 第一触头极性 | Female | 连接器颜色 | :Black |
| 配接方向 | Keyed | 触点数 | 16 |
| 位数 | 16 | 外壳尺寸-插件 | All Plastic |
| 外壳材料及表面处理 | Thermoplastic | 外壳与棱镜材料 | thermoplastic |
| 第一连接器安装类型 | :Free | 第二连接器安装特性 | Standard |
产品信息
| SPG | 25 | 备注 | Contacts Not Provided |
| 类型 | CPC | 连接器性别 | PL |
| 系列 | Series 1 | 预加载 | No |
| CAD图纸 | 3D CAD Model | 产品子类型 | Connector |
| 适配器系列 | CPC Series 1 | 单元数量 | 1 |
| 射频系列/标准 | 182642 | 其他规格 | Without |
| 适用产品/相关产品 | Socket Contacts | ||
环境参数
| 工作温度 | :105°C | ||
