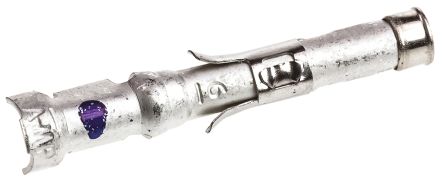

163084-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | 062 SOC.ASS. TYP3+ Multimate CONN SOCKET 18-16AWG CRIMP TIN Size 16 Female Circular Connector Contact, Crimp,Wire size 18 to 15AWG Standard Circular Contacts 062 SOC.ASS. TYP3+ Contact SKT Crimp ST Cable Mount Loose Piece Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:SocketTin Contact Mating Area PlatingWire Range = 0.75-1.50² [18.5-15.5] mm [AWG]Insulation Diameter = 2.01 - 2.49 mmBrass Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CRIMP SOCKET, 18-16AWG FEMALECRIMPCONTACTIII+ Contact; female; 0.75÷1.5mm2; 15÷18AWG; Type III+; tinned; crimped Crimp contact female, 163084-1, TE Connectivity TE Connectivity Type III + 系列 母 压接端接 圆形 连接器 触芯, 使用于III+ 型系列连接器, 18 → 15 AWG 线规格 RECEPTACLE |
| 分类 |
商业参数
| 商标名 | Multimate | 产品类别 | Standard Circular Contacts |
| 标准包装数量 | 200 | 工厂包装数量 | 200 |
合规参数
| RoHS | Compliant | 海关税号 | 85369010 |
| 抗辐射加固 | No | ||
电气参数
| 最大额定电流 | 13 A | 连接器类型 - 电压输入 | CPC Series 1, CPC Series 4 |
机械参数
| 深度 | 3.7 mm | 高度 | 3 mm |
| 长度 | 21mm | 重量 | 0.038 |
| 镀层 | Tin | 材料（通用） | Brass |
| 包装方式 | Bulk | 出线方向 | No |
| 导线线规 | 16-18 AWG | 端接方式 | Crimp |
| 触点形式 | 1Signal | 触点尺寸 | 16 |
| 安装类型 | Cable Mount | 插针或插孔 | Socket |
| 电缆直径 | 2...2.5mm | 连接器类型 | female |
| 接触镀层 | Tin | 安装样式 | Cable |
| 封装形式 | in bulk | 触头材料 | Brass |
| 总长度 | 21 mm | 包装数量 | 1 |
| 连接器 - 电缆 | contact | 第一触头极性 | Socket (Female) |
| 触点数 | 1 POS | 接触件端接 | Crimp |
| 镀层厚度（通用） | 78.7µin (2.00µm) | 线规或范围 - AWG | :18AWG |
| 线规或范围 - mm² | :1.5mm² | 触点材料 - 镀层 | tinned |
| 外径-未扩张 | :2.5mm | ||
产品信息
| SPG | 1 | 类型 | Stamped |
| 连接器性别 | Female | 系列 | Multimate Type III |
| 适配器系列 | Type III+ | 单元数量 | 1 |
| 适用产品/相关产品 | :Type III+ Series Connectors | ||
