点击放大查看

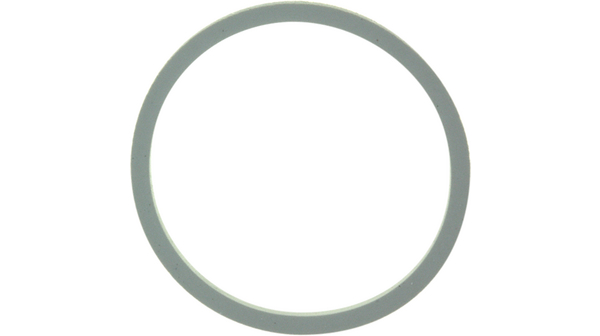

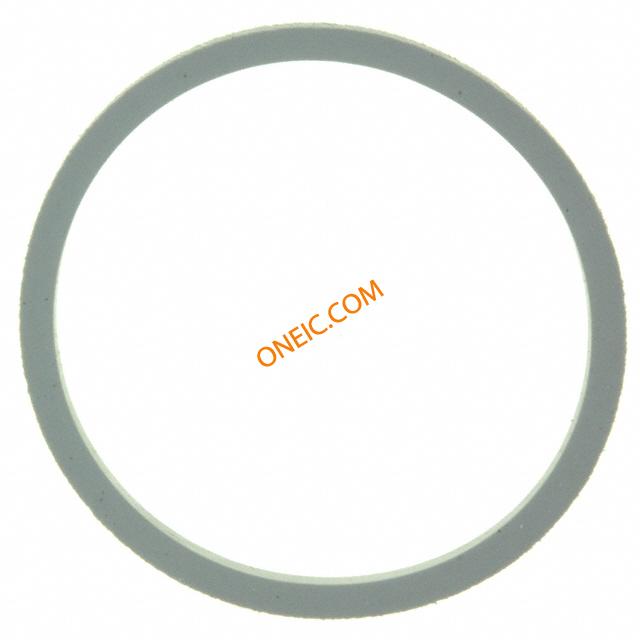

206403-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Connector Accessories Peripheral Seal Elastomer CPC Accessories CONN SEAL PERIPHERAL SIZE 17 Series 3 interfacial seal,Size 17 Standard Circular Connector PERIPHERAL SEAL 17 Connector Accessories Peripheral Seal Elastomer Product Highlights:Peripheral SealShell Size = 17Search Keywords:Circular Plastic, Metal Shell CPC, cabled power, Lighting Interconnection, input/output, box to box, PERIPHERAL SEAL, SIZE 17 CPCPERIPHERALSEAL(FORRECEPTACLESONLY),SHELLSZ.17 Peripheral Seal,Housing size 17, 206403-2, TE Connectivity TE Connectivity 电线密封 PERIPHERAL SEAL |
| 分类 |
商业参数
| 商标名 | CPC Accessories | 产品类别 | Standard Circular Connector |
| 标准包装数量 | Bulk | 工厂包装数量 | 1000 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
机械参数
| 颜色 | Gray | 重量 | 0.013 |
| 直径 | 22.22 mm | 材料（通用） | Elastomer |
| 外壳尺寸 | 17 | 外壳镀层 | :Elastomer |
| 壳体材料 | Elastomer | 外壳尺寸-插件 | 17 |
产品信息
| 类型 | Seal | 系列 | CPC |
| CAD图纸 | 3D CAD Model | 产品子类型 | Peripheral Seal |
| 附件类型 | Peripheral Seal | 射频系列/标准 | 206403 |
| 适用产品/相关产品 | CPC Receptacle | ||
环境参数
| 工作温度 | :105°C | ||
