179228-4
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 4 POS 2mm Crimp ST Cable Mount 2mm AMP CT CONN RCPT 4POS SGL CRIMP 2MM Headers & Wire Housings RCPT 4 POS CRIMP 2mm Conn Housing RCP 4 POS 2mm Crimp ST Cable Mount Product Highlights:ConnectorConnector Type = CrimpMating Type = ReceptacleNumber of Positions = 4Number of Rows = 1Search Keywords:Common Termination, wire-to-wire, hybrid power, discrete wire, flat shielded cable, Input/Output, NIC, Network Interface Cards, PC Cards, drawer, hybrid power, signal, pcb connectors, RECEPTACLEHOUSING,4POSITION,2MMPITCH,CRIMPTYPEII TE Connectivity AMP CT 系列 2mm 节距 4 路 直 母 压接连接器外壳 CT CRIMP-2 REC HSG 4P NATURAL |
| 分类 |
商业参数
| 商标名 | Common Termination | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | 工厂包装数量 | 4000 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 无铅定义 | Not relevant for lead free process | UL档案号 | E28476 |
| 认证机构 | CSA,UL | CSA档案号 | LR 7189 |
| 标准编号 | CSA, UL | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 供电电压 | 125 VAC, 125 VDC | 输入电阻 | 1000 |
| 连接器阻抗 | 压接 | 最大额定电流 | 4/Contact A |
| 最小输入电压 | 125VDC|125VAC | 最小供电电压 | 125VDC/125VAC |
| 保护额定电压（VPR） | 2000 VAC | ||
机械参数
| 颜色 | Natural | 深度 | 6.6 mm |
| 间距 | 2 mm | 形状 | 矩形 |
| 宽度 | 6.6mm | 高度 | 4.6 mm |
| 长度 | 10mm | 包装方式 | Bulk |
| 壳体颜色 | 自然 | 导线线规 | 22-30 AWG |
| 方向 | 直 | 端接方式 | Crimp |
| 触头类型 | Female Socket | 第二连接器 | Without |
| 外壳颜色 | Natural | 安装类型 | Straight |
| 行程角度 | Straight | 连接器类型 | Crimp |
| 安装样式 | Wire | 排数 | 1 |
| 连接器用途 | Receptacle | 壳体材料 | Nylon 66 |
| 总长度 | 10 mm | 包装数量 | 4000 |
| 面板安装类型 | Without | 主要材料 | InterconnectSystem |
| 插针孔直径 | 0.079" | 端接样式 | Crimp |
| 第一触头极性 | Pin (Male) | 触点数 | 4 |
| 接触件端接 | Crimp | 位数 | 4 |
| 触头长度-柱 | 信号（数据） | 安装孔直径 | 带有 |
| 中心触点材料 | 2.00 [0.079] | 典型触点布局 | 同轴 |
| 静电放电屏蔽 | 不带 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 系列 | AMP CT |
| 产品特性 | TypeII | 可密封 | 否 |
| 制造商全称 | CTSeries | 产品子类型 | Connector |
| 连接类型 | Wire | ||
环境参数
| 测试温度 | 标准部件 - 非辉光导线 | 工作温度 | -30C to 105C |
文档与媒体
相关型号
292172-4
te connectivity / amp

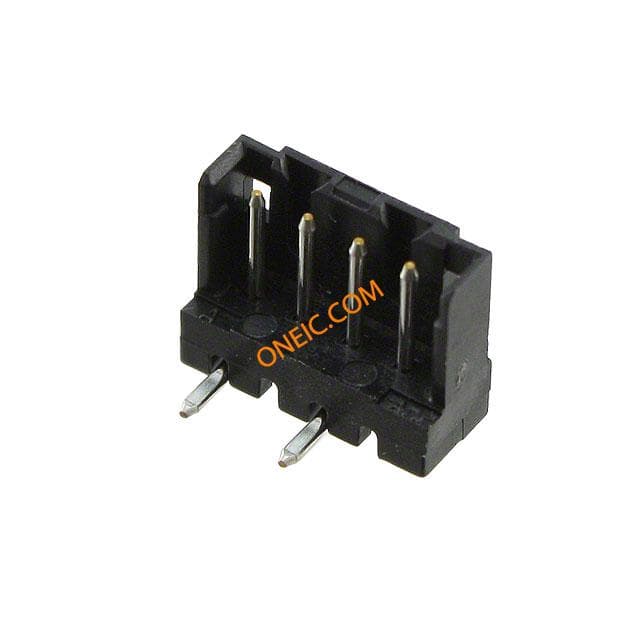

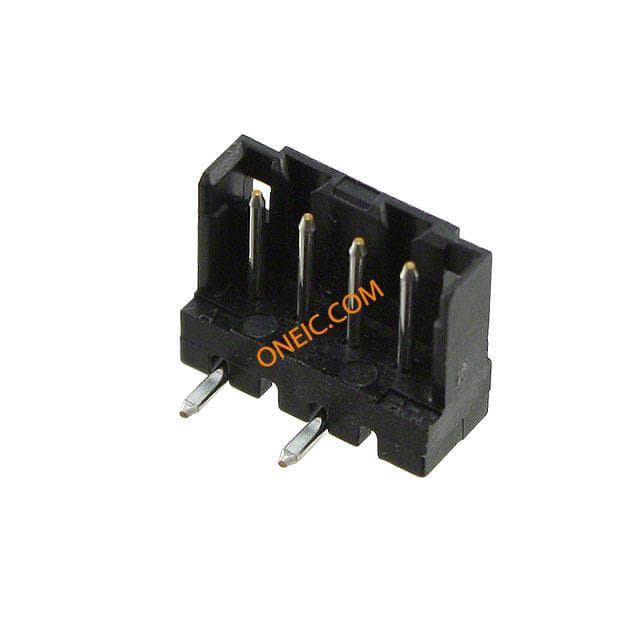

Conn Shrouded Header HDR 4 POS 2mm Solder ST SMD Tube 2mm AMP CT CONN HEADER 4POS SMD VERT TIN Headers & Wire Housings CT POST HDR ASSY 4P IN-TUBE BL 2mm AMP CT Product Highlights:ConnectorConnector Type = MT (Mass Termination)Mating Type = HeaderNumber of Positions = 4Number of Rows = 1Search Keywords:Common Termination, wire-to-wire, hybrid power, discrete wire, flat shielded cable, Input/Output, NIC, Network Interface Cards, PC Cards, drawer, hybrid power, signal, pcb connectors, CT POST HDR ASSY 4P IN-TUBE BL
179227-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip 2mm AMP CT CONN CONT RCPT 26-22AWG CRIMP Crimp socket contact, 22-26 AWG, CT Headers & Wire Housings CONTACT CRIMP RECPT Reel of 10000 Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactConnector Type = CrimpMating Type = ReceptacleTerminate To WireWire Range = 0.12-0.40² [26-22] mm [AWG]Search Keywords:Common Termination, wire-to-wire, hybrid power, discrete wire, flat shielded cable, Input/Output, NIC, Network Interface Cards, PC Cards, drawer, hybrid power, signal, pcb connectors, CONTACT, SKT GOLD CRIMP CONTACT, CRIMP, SOCKET, 26-22AWG, REEL CONTACT,RECEPTACLE,CRIMPTYPEII TE Connectivity AMP CT 系列 母 压接接线端子, 压接, 镀锡触点 CRIMP TYPE II REC CONTACT
179609-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip 2mm AMP CT CONN CONT RCPT 30-26AWG CRIMP Crimp socket contact, 26-30 AWG, CT Headers & Wire Housings RCPT CONTACT Reel of 10000 Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactConnector Type = CrimpMating Type = ReceptacleTerminate To WireWire Range = 0.05-0.15 [30-26] mm [AWG]Search Keywords:Common Termination, wire-to-wire, hybrid power, discrete wire, flat shielded cable, Input/Output, NIC, Network Interface Cards, PC Cards, drawer, hybrid power, signal, pcb connectors, CONTACT, CRIMP, SOCKET, 30-26AWG, REEL AMPCTCRIMPType2ReceptacleContact TE Connectivity AMP CT 系列 母 压接接线端子, 压接, 镀锡触点 AMP CT CRIMP TTYPE-2 REC CONT.
179228-4
te connectivity / amp

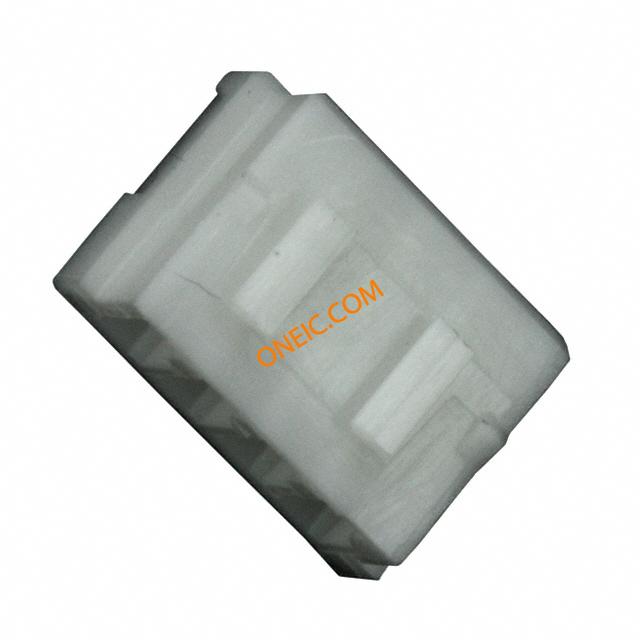

Conn Housing RCP 4 POS 2mm Crimp ST Cable Mount 2mm AMP CT CONN RCPT 4POS SGL CRIMP 2MM Headers & Wire Housings RCPT 4 POS CRIMP 2mm Conn Housing RCP 4 POS 2mm Crimp ST Cable Mount Product Highlights:ConnectorConnector Type = CrimpMating Type = ReceptacleNumber of Positions = 4Number of Rows = 1Search Keywords:Common Termination, wire-to-wire, hybrid power, discrete wire, flat shielded cable, Input/Output, NIC, Network Interface Cards, PC Cards, drawer, hybrid power, signal, pcb connectors, RECEPTACLEHOUSING,4POSITION,2MMPITCH,CRIMPTYPEII TE Connectivity AMP CT 系列 2mm 节距 4 路 直 母 压接连接器外壳 CT CRIMP-2 REC HSG 4P NATURAL
292161-4
te connectivity / amp

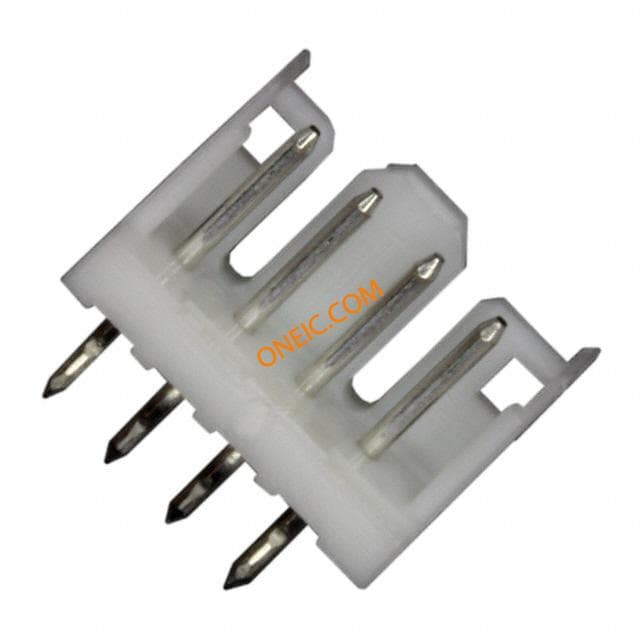

Conn Shrouded Header HDR 4 POS 2mm Solder ST Thru-Hole 2mm AMP CT CONN HEADER 4POS VERT 2MM T/H TE Connectivity 292161 Series 2mm Pitch 4 Way 1 Row Straight PCB Header, Solder Termination, 2A Headers & Wire Housings 4P VERT HDR ASSY Conn Shrouded Header HDR 4 POS 2mm Solder ST Thru-Hole Product Highlights:ConnectorConnector Type = MT (Mass Termination)Mating Type = HeaderNumber of Positions = 4Number of Rows = 1Search Keywords:Common Termination, wire-to-wire, hybrid power, discrete wire, flat shielded cable, Input/Output, NIC, Network Interface Cards, PC Cards, drawer, hybrid power, signal, pcb connectors, PostHeaderAssembly,4Position,Vertical,2mmPitch,DIPStandardType Pin header straight Pitch2 mm Poles 4 CT, 292161-4, TE Connectivity TE Connectivity AMP CT 系列 2mm节距 4路 (1排) 直 PCB 针座, 焊接端接, 2A , 通孔 CT P/HDR ASSY V 4P W/KINK NAT
2-292175-4
te connectivity / amp

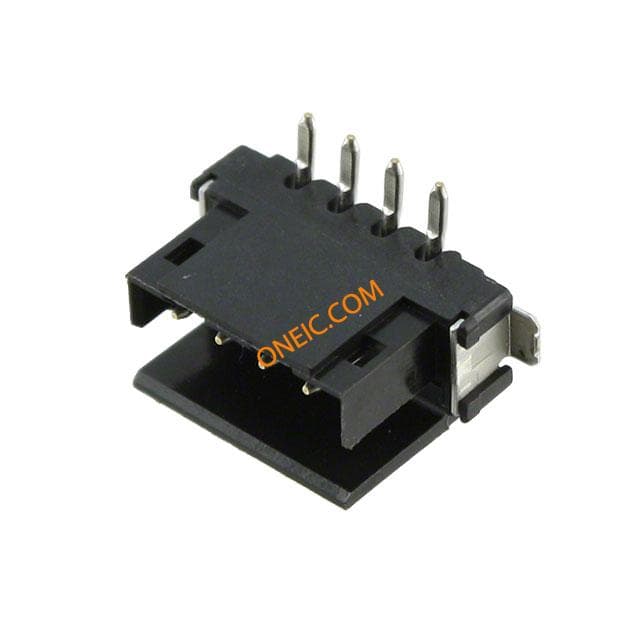

Conn Shrouded Header HDR 4 POS 2mm Solder ST SMD Embossed T/R 2mm AMP CT CONN HEADER 4POS SMD TIN BLK Headers & Wire Housings CT BOX HDR V SMT 4P Conn Shrouded Header HDR 4 POS 2mm Solder ST SMD Embossed T/R Product Highlights:ConnectorConnector Type = Crimp, MT (Mass Termination)Mating Type = HeaderNumber of Positions = 4Number of Rows = 1Search Keywords:Common Termination, wire-to-wire, hybrid power, discrete wire, flat shielded cable, Input/Output, NIC, Network Interface Cards, PC Cards, drawer, hybrid power, signal, pcb connectors, CT BOX HDR V SMT 4P O/TAPE BLA
292133-4
te connectivity / amp

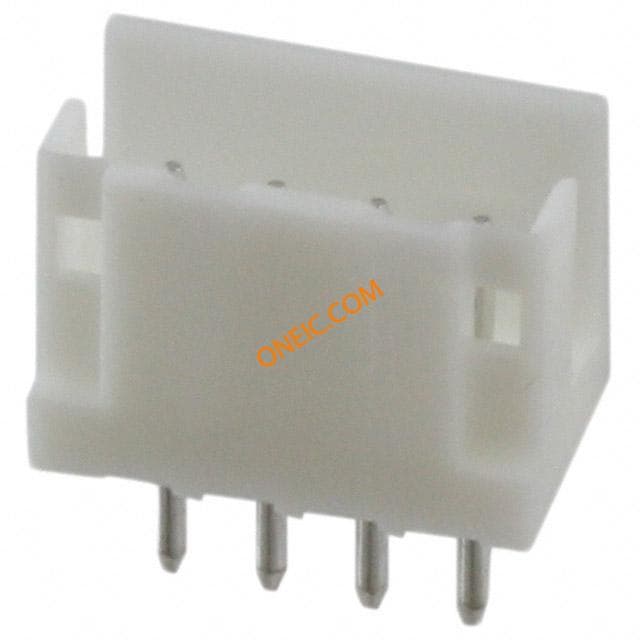

Conn Shrouded Header HDR 4 POS 2mm Solder ST Thru-Hole 2mm AMP CT CONN HEADER 4POS VERT 2MM Headers & Wire Housings CT P/HDR ASSY BOX V 4P W/O KIN Conn Shrouded Header HDR 4 POS 2mm Solder ST Thru-Hole Product Highlights:ConnectorConnector Type = Crimp, MT (Mass Termination)Mating Type = HeaderNumber of Positions = 4Number of Rows = 1Search Keywords:Common Termination, wire-to-wire, hybrid power, discrete wire, flat shielded cable, Input/Output, NIC, Network Interface Cards, PC Cards, drawer, hybrid power, signal, pcb connectors, CT P/HDR ASSY BOX V 4P W/O KIN
179227-4
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip 2mm AMP CT CONN SOCKET 2MM 22-26AWG Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactConnector Type = CrimpMating Type = ReceptacleTerminate To WireWire Range = 0.12-0.40² [26-22] mm [AWG]Search Keywords:Common Termination, wire-to-wire, hybrid power, discrete wire, flat shielded cable, Input/Output, NIC, Network Interface Cards, PC Cards, drawer, hybrid power, signal, pcb connectors, AMP CT CRIMP-2 REC CONT AU
2-292173-4
te connectivity / amp

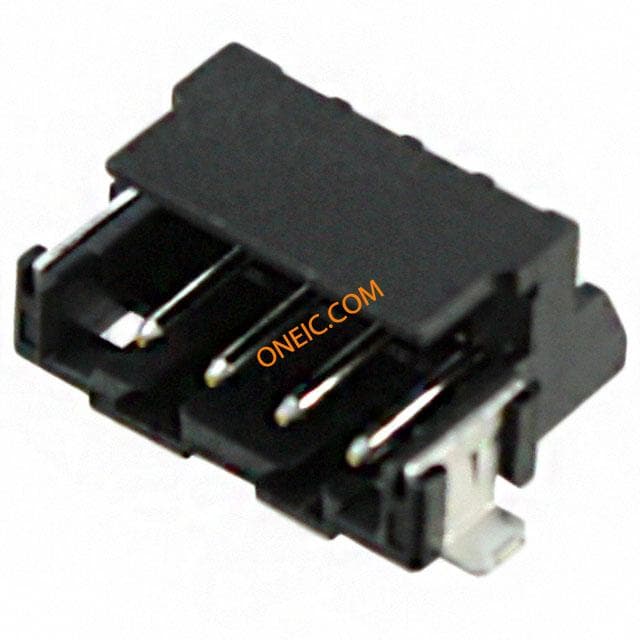

Conn Shrouded Header HDR 4 POS 2mm Solder RA SMD Embossed T/R 2mm AMP CT CONN HEADER 4POS SMD R/A TIN BLK TE Connectivity 2-292173 Series 2mm Pitch 4 Way 1 Row Right Angle PCB Header, Solder Termination, 2A Headers & Wire Housings HDR 4P SMT R/A TIN BLK Conn Shrouded Header HDR 4 POS 2mm Solder RA SMD Embossed T/R Product Highlights:ConnectorConnector Type = Crimp, MT (Mass Termination)Mating Type = HeaderNumber of Positions = 4Number of Rows = 1Search Keywords:Common Termination, wire-to-wire, hybrid power, discrete wire, flat shielded cable, Input/Output, NIC, Network Interface Cards, PC Cards, drawer, hybrid power, signal, pcb connectors, CONNECTOR, 4WAY, R/A, 2 HEADERHORIZ4WAYSMT TE Connectivity 2-292173 系列 2mm节距 4路 (1排) 直角 PCB 针座, 焊接端接, 2A CT BOX HDR H SMT 4P O/TAPE BLA
292156-4
te connectivity / amp
Conn Coupler Header M/M 4 POS 2mm ST Panel Mount 2mm AMP CT CONN HEADER CT 4POS FREE HANGING Header plug, 2mm, 4 way,free hanging, CT Headers & Wire Housings CT RELAY HDR ASSY FREE HANGING 2mm AMP CT Product Highlights:ConnectorConnector Type = Crimp, MT (Mass Termination)Mating Type = HeaderNumber of Positions = 4Number of Rows = 1Search Keywords:Common Termination, wire-to-wire, hybrid power, discrete wire, flat shielded cable, Input/Output, NIC, Network Interface Cards, PC Cards, drawer, hybrid power, signal, pcb connectors, Headerplug,2mm,4way,freehanging,CT TE Connectivity AMP CT 系列 1 行 2mm 节距 4 路 直 公/公 面板安装 PCB 壳体 CT RELAY HDR ASSY FREE HANGING
179518-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece 2mm AMP CT CONN CONT RCPT 22-26AWG CRIMP Crimp socket contact, 22-26 AWG, CT Headers & Wire Housings CRIMP RCPT 26-22 AWG 2mm Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactConnector Type = CrimpMating Type = ReceptacleTerminate To WireWire Range = 0.12-0.40² [26-22] mm [AWG]Search Keywords:Common Termination, wire-to-wire, hybrid power, discrete wire, flat shielded cable, Input/Output, NIC, Network Interface Cards, PC Cards, drawer, hybrid power, signal, pcb connectors, CONTACT,RECEPTACLE,CRIMPTYPEII TE Connectivity AMP CT 系列 母 压接接线端子, 压接, 镀锡触点 CT CRIMP-2 REC CONT. L/P
292134-4
te connectivity / amp

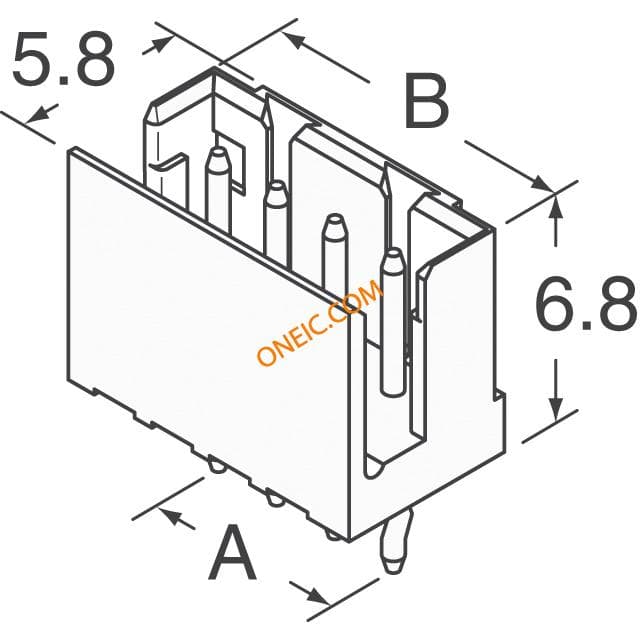

Conn Shrouded Header HDR 4 POS 2mm Solder ST Thru-Hole Bag 2mm AMP CT CONN HDR 4POS VERT 2MM WHT T/H Headers & Wire Housings BOX HDR V 4P AU W/KINK 2mm AMP CT Product Highlights:ConnectorConnector Type = BlindmateMating Type = HeaderNumber of Positions = 4Number of Rows = 1Search Keywords:Common Termination, wire-to-wire, hybrid power, discrete wire, flat shielded cable, Input/Output, NIC, Network Interface Cards, PC Cards, drawer, hybrid power, signal, pcb connectors, CT BOX HDR ASSY V 4P AU W/KINK
