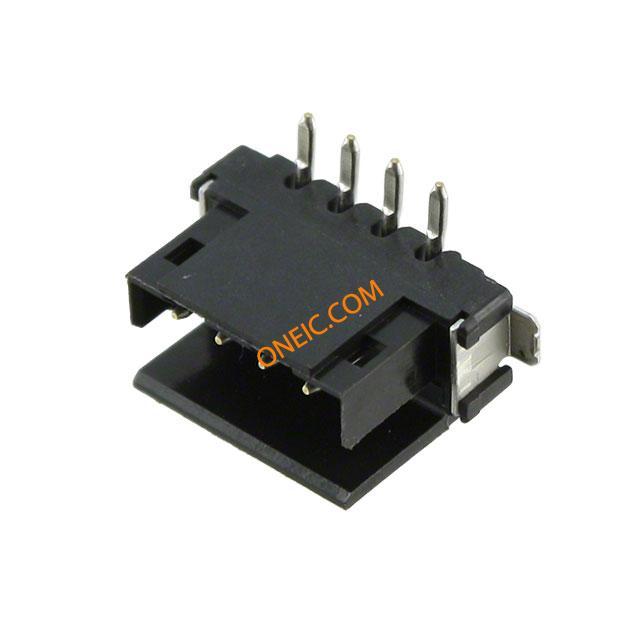

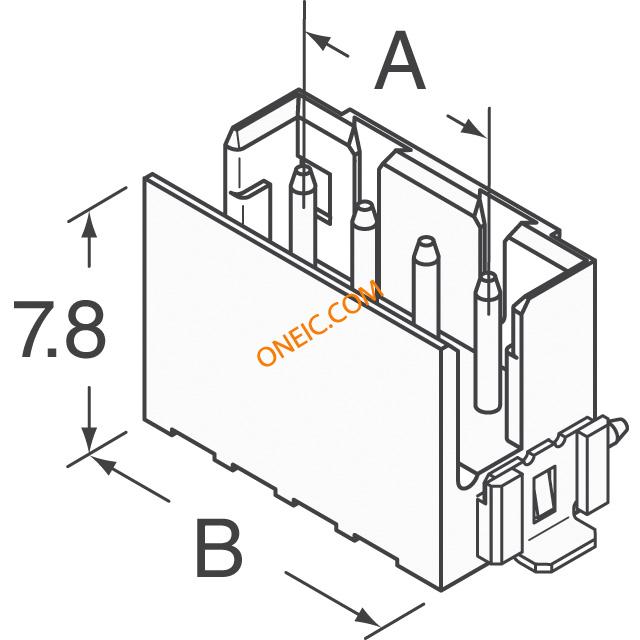

2-292175-4

点击放大查看

2-292175-4

制造商
TE Connectivity Ltd.
描述Conn Shrouded Header HDR 4 POS 2mm Solder ST SMD Embossed T/R 2mm AMP CT CONN HEADER 4POS SMD TIN BLK Headers & Wire Housings CT BOX HDR V SMT 4P Conn Shrouded Header HDR 4 POS 2mm Solder ST SMD Embossed T/R Product Highlights:ConnectorConnector Type = Crimp, MT (Mass Termination)Mating Type = HeaderNumber of Positions = 4Number of Rows = 1Search Keywords:Common Termination, wire-to-wire, hybrid power, discrete wire, flat shielded cable, Input/Output, NIC, Network Interface Cards, PC Cards, drawer, hybrid power, signal, pcb connectors, CT BOX HDR V SMT 4P O/TAPE BLA
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

商标名Common Termination其他名称A100989DKR
产品类别Headers & Wire Housings标准包装数量Tape & Reel

合规参数

RoHSLead free / RoHS Compliant零件状态CSA, UL
无铅定义Reflow solder capable to 245°CUL档案号E28476
CSA档案号LR 7189-133标准编号CSA, UL 94V-0
RoHS/ELV合规状态RoHS compliant, ELV compliant材料阻燃等级UL 94V-0

电气参数

开关功能No供电电压125
最大额定电流4/Contact A最小供电电压125V
连接器类型 - 电压输入圆柱体

机械参数

颜色Black深度5.8 mm
间距2 mm形状矩形
宽度5.8 mm [ .228 in ]高度7.85 mm
长度9.8 mm [ .386 in ]包装方式Tape & Reel (TR)
尾部类型Inline壳体颜色黑色
电缆类型分离式导线导线线规28 – 22
端接方式Solder触头类型Male Pin
触点形状Round外壳颜色Black
安装类型Vertical连接器类型Crimp, MT (Mass Termination)
接触镀层Tin触点时序With
安装样式Surface Mount排数1
连接器用途Header插入件材料黄铜
触头材料Brass壳体材料Polyphenylene Sulfide (PPS)
总长度14.4 mm安装特性焊钉
包装数量Tape Mounted面板安装类型Without
端接样式SMD第一触头极性Pin (Male)
排针方向Box触点数4
端接表面处理带有绝缘直径.93 mm [ .0366 – .041 in ]
位数4触头长度-柱信号（数据）
安装孔直径带有中心触点材料2.00 [0.079]
接触件表面处理 - 配合锡典型触点布局同轴
接触长度 - 配合0.177" (4.50mm)表面贴装焊盘尺寸Internal
端子柱长度4.5 mm [ .177 in ]接触镀层厚度1 – 2 µm [ 39.37 – 78.73 µin ]
静电放电屏蔽不带

产品信息

类型Shrouded Header连接器性别HDR
系列AMP CT产品特性Solder Retention
可密封否卷轴尺寸700
产品子类型Connector连接类型Printed Circuit Board
加载位置数All

环境参数

工作温度-30C to 105C封装热阻.8 mm [ .031 – .063 in ]

文档与媒体

在线文档
2-292175-4?RQPN=2-292175-4
