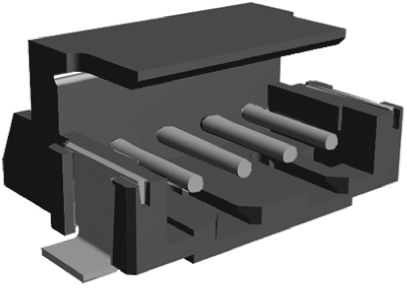

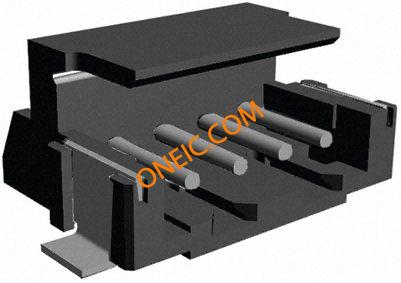

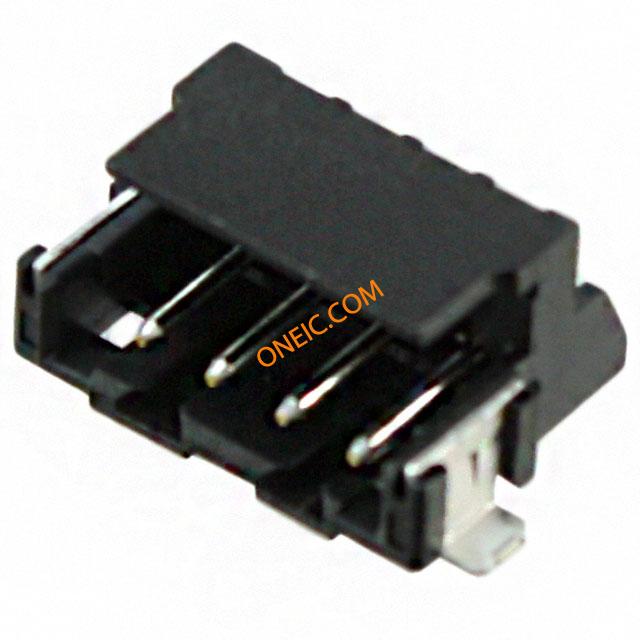

2-292173-4
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Shrouded Header HDR 4 POS 2mm Solder RA SMD Embossed T/R 2mm AMP CT CONN HEADER 4POS SMD R/A TIN BLK TE Connectivity 2-292173 Series 2mm Pitch 4 Way 1 Row Right Angle PCB Header, Solder Termination, 2A Headers & Wire Housings HDR 4P SMT R/A TIN BLK Conn Shrouded Header HDR 4 POS 2mm Solder RA SMD Embossed T/R Product Highlights:ConnectorConnector Type = Crimp, MT (Mass Termination)Mating Type = HeaderNumber of Positions = 4Number of Rows = 1Search Keywords:Common Termination, wire-to-wire, hybrid power, discrete wire, flat shielded cable, Input/Output, NIC, Network Interface Cards, PC Cards, drawer, hybrid power, signal, pcb connectors, CONNECTOR, 4WAY, R/A, 2 HEADERHORIZ4WAYSMT TE Connectivity 2-292173 系列 2mm节距 4路 (1排) 直角 PCB 针座, 焊接端接, 2A CT BOX HDR H SMT 4P O/TAPE BLA |
| 分类 |
商业参数
| 商标名 | Common Termination | 其他名称 | A100983CT |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Tape & Reel |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85369010 | 无铅定义 | Reflow solder capable to 245°C |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 额定电压 | 125 V ac/dc | 开关功能 | No |
| 接触电阻 | 20 | 最大额定电流 | 2A |
| 最小输入电压 | 125VDC|125VAC | ||
机械参数
| 颜色 | Black | 深度 | 7.45 |
| 间距 | 2 mm | 高度 | 5.8 |
| 重量 | 0.004 | 包装方式 | Embossed Tape and Reel |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 引脚间距 | :2mm | 外壳颜色 | Black |
| 安装类型 | Surface Mount | 连接器类型 | Crimp, MT (Mass Termination) |
| 接触镀层 | Tin | 安装样式 | Surface Mount |
| 排数 | 1 | 连接器用途 | Header |
| 触头材料 | Brass | 壳体材料 | Polyphenylene Sulfide |
| 总长度 | 2.00 [0.079] | 包装数量 | Tape Mounted |
| 面板安装类型 | Without | 第一触头极性 | Pin (Male) |
| 排针方向 | Box | 触点数 | 4 |
| 位数 | 4 | 接触长度 - 配合 | 0.165" (4.19mm) |
产品信息
| 类型 | Shrouded Header | 连接器性别 | HDR |
| 系列 | 2-292173 | 产品特性 | Solder Retention |
| 产品子类型 | Connector | 连接类型 | Printed Circuit Board |
| 加载位置数 | All | ||
