点击放大查看

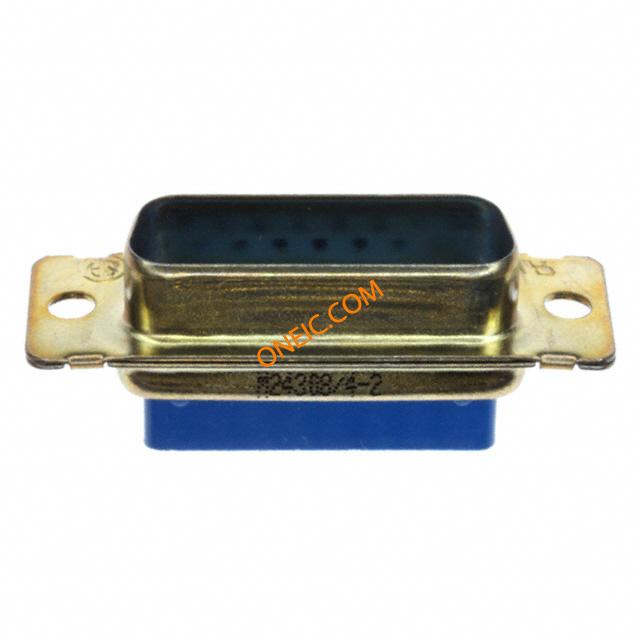

1757819-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing PL 15 POS Crimp ST D-Sub Standard Connectors PLUG 15P SERIES 109 Subminiature D Pin/Socket Connectors for MIL-C-24308 and MIL-C-39029 AMPLIMITE 109 d-sub cable plug, 15 pin Conn Housing PL 15 POS Crimp ST Panel Mount Conn Housing PL 15 POS Crimp ST Panel Mount Product Highlights:ConnectorProduct Series = 109Density = StandardTerminate To WireNumber of Positions = 15Search Keywords:AMPLIMITE, rack and panel, MIL-M24519, DIN 41652, input/output, box to box, military/aerospace, d-sub, d sub, dsub PLUG, DSUB, CRIMP, STD, 15WAY Connec CONN D-SUB HOUSING PLUG 15POS Conn;D-Sub;CablePlug;15Pos;STR;109Series;Crimp;20AWG TE Connectivity AMPLIMITE 109系列 15路 直 军用压接 D-Sub 连接器, 插头 AMPLIMITE,ASY,PLUG,STD,109,ZN,2 |
| 分类 |
商业参数
| 零件号别名 | M24308 M24308/4-260 | 产品类别 | D-Sub Standard Connectors |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | RoHS Compliant | 标准 | MIL-C-24308 |
| 海关税号 | 85369010 | 资质认证 | No |
| 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 认证机构标志 | Yes | ||
电气参数
| 连接器阻抗 | No | ||
机械参数
| 颜色 | Blue | 深度 | 12.93mm |
| 宽度 | 9.52mm | 长度 | 39.52mm |
| 重量 | 0.05 | 材料（通用） | Stainless Steel |
| 包装方式 | Bulk | 出线方向 | Straight |
| 外壳尺寸 | 2 | 导线线规 | 20 |
| 端接方式 | Crimp | 触点尺寸 | 20 |
| 触头类型 | Crimp Snap-in | 非磁性 | No |
| 安装类型 | Straight | 外壳镀层 | Zinc |
| 行程角度 | Straight | 连接器类型 | Crimp |
| 接触镀层 | Gold | 法兰特征 | Housing/Shell (Unthreaded) |
| 外壳涂层 | Zinc | 安装样式 | Wire |
| 引脚数 | Without | 排数 | 2 |
| 外壳材料（壳体） | Steel | 连接器样式 | D-Sub |
| 本体材料 | :Steel | 触头材料 | Copper Alloy |
| 壳体材料 | PET | 主要材料 | D-Subminiature |
| 尺寸/外形 | 39.52 x 9.52 x 12.93mm | 端接样式 | Crimp |
| 触点数 | 15 | 介电材料 | Polyester |
| 位数 | 15 | 外壳尺寸-插件 | :DA |
| 衬套/护套类型 | No | 安装孔直径 | 3.05 [.120] |
| 外壳镀层厚度 | 20µin (0.51µm) | 外壳材料及表面处理 | Steel, Yellow Chromate Plated Zinc |
| 外壳尺寸，连接器布局 | 2 (DA, A) | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | PL | 系列 | 109 |
| 密度 | Standard | 制造商全称 | AMP |
| 产品子类型 | Connector | 连接类型 | Wire |
| 应用细节 | TrueMil | 设备部件号 | M24308/4-260 |
| 适用产品/相关产品 | :AMPLIMITE 109 Series Connectors | ||
