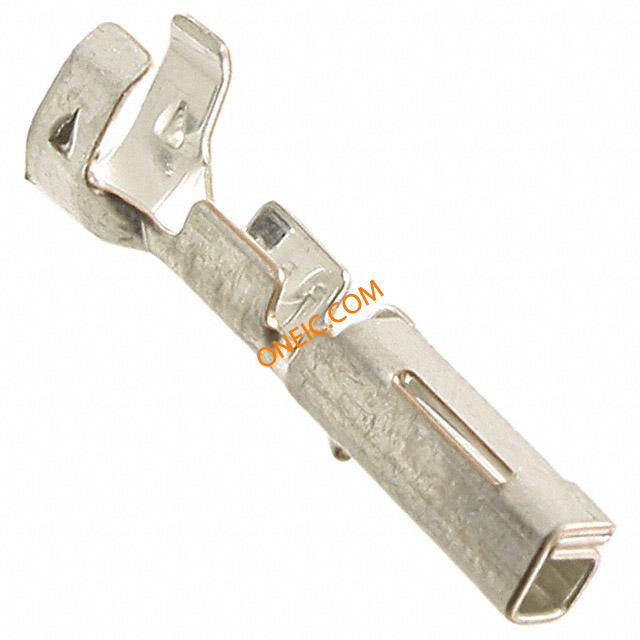

175062-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact SKT Crimp ST Cable Mount Loose Piece MULTILOCK Connectors and Contacts CONN RCPT TIN CRIMP TERM Multilock 040 socket,24-20 awg Automotive Connectors SKT 22-20 BR/SN Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactTerminate To WireTab Width = 1.02 mmReceptacleWire Range = 0.20-0.60² [24-20] mm [AWG]Search Keywords:Wire-to-wire, Wire-to-board, Hybrid, High Density, I/O, CONTACT, RECEPTACLE, 22-20AWG, CRIMP Multilock040socket,24-20awg TE Connectivity Multilock 040 系列 母 压接接线端子, 压接, 镀锡触点 040 MULTILOCK REC CONT L/P |
| 分类 |
商业参数
| 产品 | Terminals | 产品类别 | Automotive Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 1000 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
电气参数
| 接触电阻 | 20mΩ | ||
机械参数
| 深度 | 3.1 mm | 间距 | Not Required mm |
| 高度 | 4.2 mm | 重量 | 0.00023 |
| 包装方式 | Bulk | 插片宽度 | 1.02 [0.04] |
| 导线线规 | 20-22 AWG | 端接方式 | Crimp |
| 触头类型 | Signal | 外壳颜色 | Not Required |
| 安装类型 | Wire | 插针或插孔 | Socket |
| 卡扣方向（或“接线片方向”） | Receptacle | 连接器类型 | Connector Headers and PCB Receptacles |
| 接触镀层 | Pre-Tin | 安装样式 | Wire |
| 触头材料 | KLF-5 | 壳体材料 | Not Required |
| 总长度 | 14.2 mm | 包装数量 | Loose Piece |
| 端接样式 | Crimp | 第一触头极性 | :Socket |
| 触点数 | Not Required | 接触件端接 | Crimp |
| 绝缘直径 | 1.40 â 2.00 [0.055 â 0.079] | 位数 | 1 |
| 线规或范围 - AWG | 24-20 | 线规或范围 - mm² | 0.20-0.60² [24-20] |
产品信息
| 类型 | Contact | 连接器性别 | SKT |
| 系列 | 40 | CAD图纸 | 3D CAD Model |
| 产品子类型 | Contact | 连接类型 | Wire |
| 专有名称 | MULTILOCK | 适用产品/相关产品 | :MULTILOCK Series Connectors |
环境参数
| 工作温度 | +105°C | 可用温度范围 | -30to+105°C |
| 结工作温度 | 105°C | ||
