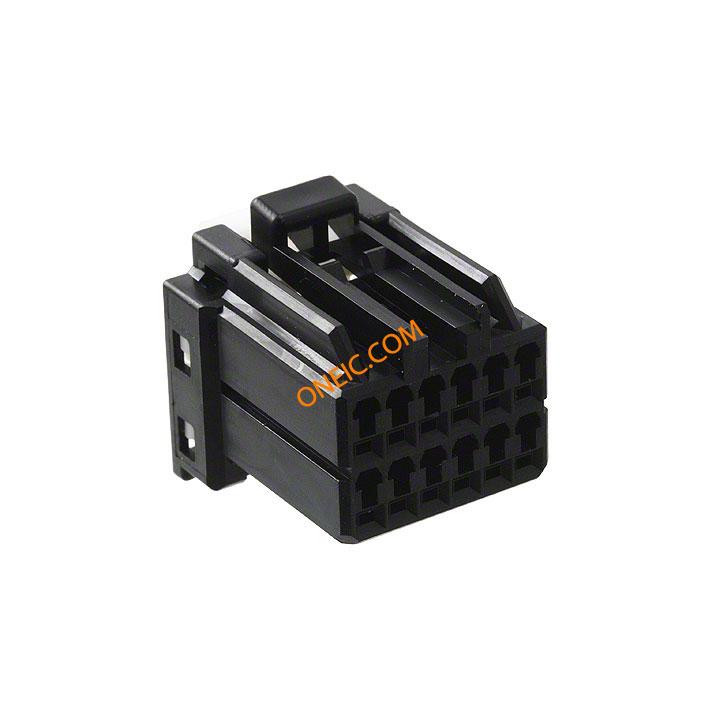

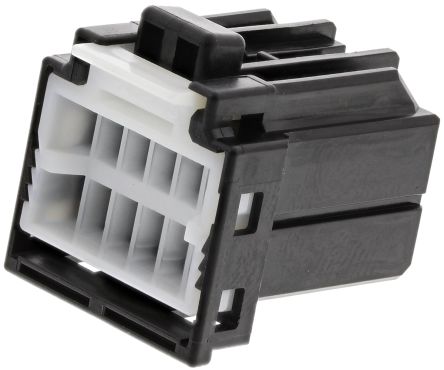

175965-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing PL 12 POS 2.5mm Crimp ST Cable Mount MULTILOCK Connectors and Contacts 040 MLC II PLUG HSG ASSY 12P Housing, 2 row, 12 way, Rec, Multilock Jones Plugs & Sockets HSG PLG 2X06P F/H Conn Housing PL 12 POS 2.5mm Crimp ST Cable Mount Product Highlights:HousingPlug040 Plug ConfigurationNumber of Rows = 2Number of Positions = 12Search Keywords:Wire-to-wire, Wire-to-board, Hybrid, High Density, I/O, Housing,2row,12way,Rec,Multilock TE Connectivity Multilock 040 II 系列 2 行 2.5mm 节距 12 路 直 公 PCB 壳体 |
| 分类 |
商业参数
| 产品类别 | Jones Plugs & Sockets | 标准包装数量 | Bulk |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94-HB |
电气参数
| 供电电压 | 12 | 标称电压 | 12 |
| 连接器阻抗 | 否 | ||
机械参数
| 颜色 | Black | 深度 | 23mm |
| 间距 | 2.5 mm | 宽度 | 18.3 mm [ .72 in ] |
| 高度 | 18 mm [ 0.709 in ] | 长度 | 18.3mm |
| 锁定类型 | 外壳集成 | 包装方式 | Bulk |
| 出线方向 | 否 | 方向 | 直 |
| 排间距 | 0.205" (5.20mm) | 触头类型 | Female Socket |
| 第二连接器 | With | 外壳颜色 | Black |
| 安装类型 | Straight | 连接器类型 | Plug |
| 紧固类型 | Latch Lock | 排数 | 2 |
| 锁定特性 | Rear Lock | 壳体材料 | PBT |
| 安装特性 | 否 | 包装数量 | 100 |
| 面板安装类型 | Without | 主要材料 | PBT |
| 触点数 | 12 | 接触件端接 | Crimp |
| 位数 | 12 | 连接器/触点类型 | 40 |
| 接触件表面处理 - 配合 | 是 | 法兰上方插针尺寸 | 1 mm [ .039 in ] |
| 第二连接器加载位数 | 12 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | PL | 系列 | 040 Mark II |
| 极性 | 是 | 可密封 | 否 |
| 可维修 | 是 | 编码、键控 | No |
| 产品子类型 | Housing | 连接类型 | Wire |
| 专有名称 | MULTILOCK | 应用细节 | Signal |
| 适用产品/相关产品 | MULTILOCK Wire-to-Wire Connector | ||
环境参数
| 工作温度 | -30 – 105 °C [ -22 – 221 °F ] | ||
