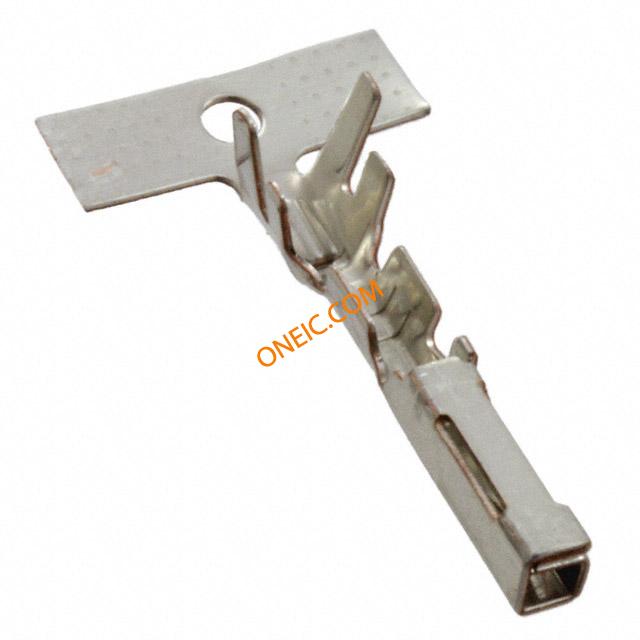

点击放大查看
175180-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact SKT Crimp ST Cable Mount Strip MULTILOCK Connectors and Contacts CONN SOCKT TIN CRIMP TERMINATION 040 Contact, Rec, Multilock, 22-20 AWG Power to the Board 040MLC SKT 22-20 BR/SN Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactTerminate To WireTab Width = 1.02 mmReceptacleWire Range = 0.30-0.60² [22-20] mm [AWG]Search Keywords:Wire-to-wire, Wire-to-board, Hybrid, High Density, I/O, CONTACT, CRIMP, RECEPTACLE, 22-20AWG 040Contact,Rec,Multilock,22-20AWG TE Connectivity Multilock 040 系列 母 压接接线端子, 压接, 镀锡触点 040 MULTILOCK REC CONT PRE-TIN |
| 分类 |
商业参数
| 其他名称 | A105152CT | 产品类别 | Power to the Board |
| 标准包装数量 | Tape & Reel | 工厂包装数量 | 5000 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
电气参数
| 接触电阻 | 20mΩ | 最大额定电流 | 5 A |
机械参数
| 重量 | 0.005 | 包装方式 | Tape & Reel (TR) |
| 插片宽度 | 1.02 [0.04] | 导线线规 | 20-22 AWG |
| 端接方式 | Crimp | 触头类型 | Signal |
| 插针或插孔 | Socket | 卡扣方向（或“接线片方向”） | Receptacle |
| 连接器类型 | Connector Headers and PCB Receptacles | 接触镀层 | Pre-Tin |
| 触头材料 | KLF-5 | 包装数量 | Strip |
| 端接样式 | Crimp | 第一触头极性 | Socket (Female) |
| 接触件端接 | Crimp | 绝缘直径 | 1.10 â 1.40 [0.043 â 0.055] |
| 线规或范围 - AWG | 22-20 | 线规或范围 - mm² | 0.30-0.60² [22-20] |
产品信息
| 连接器性别 | SKT | 系列 | 40 |
| 产品子类型 | Contact | 连接类型 | Wire |
| 专有名称 | MULTILOCK | 适用产品/相关产品 | :Multilock Connectors |
环境参数
| 工作温度 | - 30 C to + 105 C | 可用温度范围 | -30to+105°C |
| 结工作温度 | 105°C | ||
