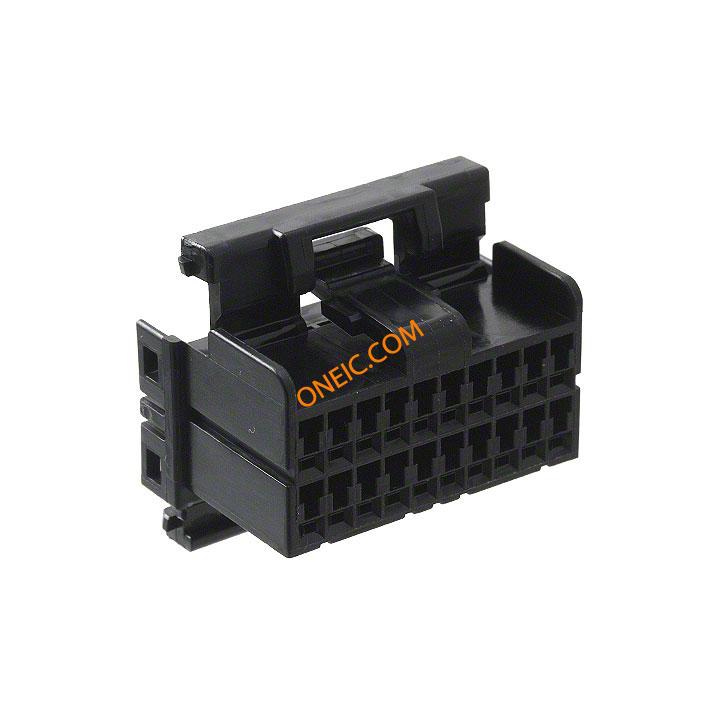

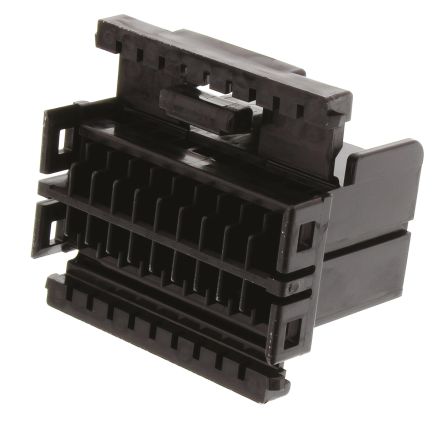

174047-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing PL 20 POS 2.5mm Crimp ST MULTILOCK Connectors and Contacts CONN PLUG HSNG 20POS DUAL BLACK 20 way Multilock 040 cable plug housing Jones Plugs & Sockets HSG PLG 2X10P F/H Conn Housing PL 20 POS 2.5mm Crimp ST Product Highlights:HousingPlug040 Plug ConfigurationNumber of Rows = 2Number of Positions = 20Search Keywords:Wire-to-wire, Wire-to-board, Hybrid, High Density, I/O, HOUSING, PLUG, HINGE LOCK, 20P 20wayMultilock040cableplughousing Connector: wire-board; .040 MULTILOCK; plug; female; PIN:20; black TE Connectivity Multilock 040 系列 2 行 2.5mm 节距 20 路 直 公 PCB 壳体 040 MULTILOCK PLUG 20P |
| 分类 |
商业参数
| 产品类别 | Jones Plugs & Sockets | 标准包装数量 | Bulk |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
电气参数
| 连接器类型 - 电压输入 | w/o terminals | ||
机械参数
| 颜色 | Black | 深度 | 18.5mm |
| 间距 | 2.5 mm | 宽度 | 26.1mm |
| 高度 | 26.1 mm | 长度 | 28.1mm |
| 重量 | 0.0042 | 包装方式 | Bulk |
| 排间距 | 0.205" (5.20mm) | 触头类型 | Female Socket |
| 第二连接器 | With | 外壳颜色 | Black |
| 安装类型 | Straight | 连接器类型 | Plug |
| 紧固类型 | Latch Holder | 安装样式 | for cable |
| 排数 | 2 | 锁定特性 | Hinge Lock |
| 壳体材料 | PBT | 总长度 | 28.1 mm |
| 包装数量 | 1 | 面板安装类型 | Without |
| 连接器 - 电缆 | plug | 连接器颜色 | black |
| 触点数 | 20 | 接触件端接 | Crimp |
| 位数 | 20 | 连接器/触点类型 | 40 |
| 第二连接器加载位数 | 20 | ||
产品信息
| SPG | 1 | 备注 | Contacts Not Provided |
| 类型 | Housing | 连接器性别 | PL |
| 系列 | 40 | 编码、键控 | No |
| 产品子类型 | Housing | 适配器系列 | .040 MULTILOCK |
| 连接类型 | Wire | 单元数量 | 1 |
| 专有名称 | MULTILOCK | 适用产品/相关产品 | MULTILOCK Wire-to-Wire Connector |
环境参数
| 工作温度 | -30C to 105C | ||
