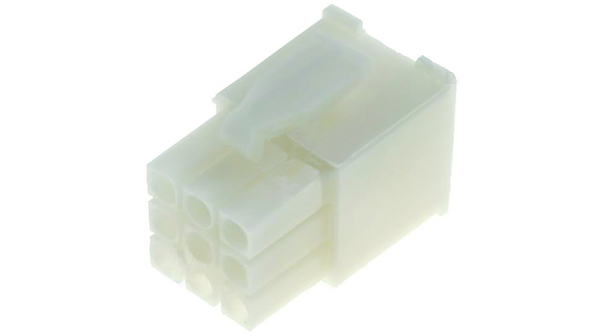

点击放大查看
172340-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing PL 9 POS 4.2mm Crimp ST Individual .163" Centerline, 600 V, 9.5 A max. CONN PLUG 9POS MINI-MATE-N-LOK Housing,plug,Mate-n-lok,9 Way,Natural Pin & Socket Connectors MINI PLG HOUS 9POS Conn Housing PL 9 POS 4.2mm Crimp ST Individual Product Highlights:HousingMini-Universal MATE-N-LOKNumber of Circuits = 94.14 x 4.14 mm Centerline, MatrixMatrix Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP PLUG HOUSING, 9WAY Connector,SoftShell;9;600VAC;Plug;Matrix;Nylon;Plug;Natural;UL94V-2 Pin housing Pitch4.14 mm Poles 3 x 3 Multi row / Free hanging/cable mount / straight / accepts male or female contacts MATE-N-LOK Mini Universal, 172340-1, TE Connectivity TE Connectivity Mini-Universal Mate-N-Lok 系列 3 行 4.2mm 节距 9 路 直 公 压接连接器外壳 MINI UMNL PLUG HOUSING 9P |
| 分类 |
商业参数
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 500 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | 认证机构 | :CSA, UL, VDE |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-2 |
电气参数
| 额定电压 | 600 V | 供电电压 | 600 |
| 工作电压 | :300V | 最大额定电流 | 9.5 A |
| 最小供电电压 | 600VDC/600VAC | 连接器类型 - 电压输入 | Mini-Universal MATE-N-LOK |
机械参数
| 颜色 | Natural | 深度 | 23.7mm |
| 间距 | 4.2 mm | 宽度 | 16mm |
| 高度 | 16 mm | 长度 | 14mm |
| 重量 | 0.002 | 材料（通用） | :Polyamid 6.6 |
| 锁定类型 | Positive Lock | 包装方式 | Bulk |
| 导线线规 | 16-30 AWG | 排间距 | 0.163" (4.14mm) |
| 触头类型 | Male or Female | 柱间距 | 4.14 x 4.14 [.163 x .163] |
| 外壳颜色 | Natural | 安装类型 | Straight |
| 释放力 | :0.5N | 连接器类型 | Plug |
| 紧固类型 | Latch Lock | 安装样式 | Free Hanging |
| 排数 | 3 | 封装形式 | :Matrix |
| 插入力 | :4N | 壳体材料 | Nylon |
| 总长度 | 14 mm | 包装数量 | One Piece Housing |
| 第一触头极性 | Pin (Male) | 连接器颜色 | :Clear |
| 触点数 | 9 | 接触件端接 | Crimp |
| 位数 | 9 | 典型触点布局 | Matrix |
| 接触镀层厚度 | 0.99 [0.039] | 线规或范围 - AWG | :26AWG |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | PL | 系列 | MATE-N-LOK |
| 产品子类型 | Housing | 模块/板类型 | No |
| 电路数 | 9 | 适用产品/相关产品 | Wire-to-Board Connector |
环境参数
| 工作温度 | -20C to 105C | ||
