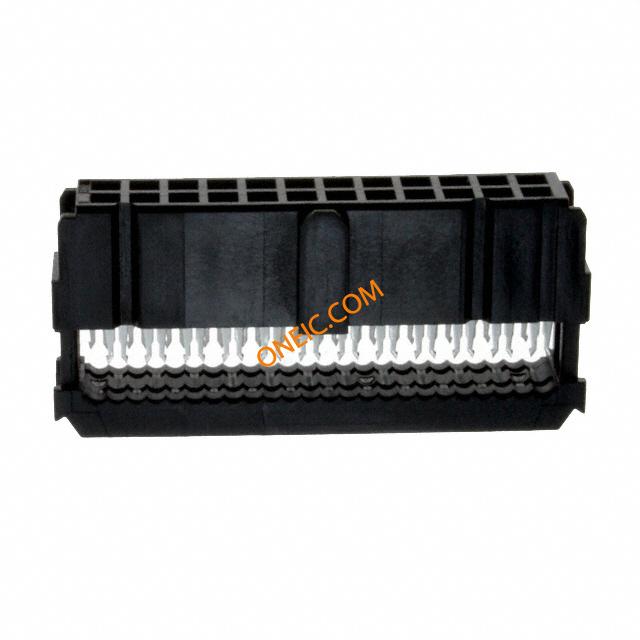

1658622-5

点击放大查看

1658622-5

制造商
TE Connectivity Ltd.
描述Conn IDC Connector RCP 24 POS 2.54mm IDT RA Cable Mount Ribbon Cable Connectors (AMP-LATCH) CONN IDC SKT 24POS W/POL GOLD AMP-LATCH Novo IDC Receptacle 24P Headers & Wire Housings .1CL IDC REC 2X12P C&M 30AU Conn IDC Connector RCP 24 POS 2.54mm IDT RA Cable Mount Product Highlights:Connector Type = NOVONumber of Positions = 24ReceptacleMating Polarization Method = Center & MilitaryWith Mating PolarizationSearch Keywords:input/output, paddleboard, paddle board WIRE-BOARD CONNECTOR RECEPTACLE 24POS, 2.54MM CONNECTOR,RECEPTACLE,NOVA,AMP-LATCH,24POSITION,WITHMATINGPOLARIZATION 24 NOVO MIL/CTR 30DP,LEAD FREE
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

商标名AMP-LATCH产品类别Headers & Wire Housings
标准包装数量Rail / Tube工厂包装数量60

合规参数

RoHSLead free / RoHS Compliant海关税号85366910
无铅定义Not relevant for lead free processRoHS/ELV合规状态RoHS compliant, ELV compliant
材料阻燃等级UL 94V-0

电气参数

量程（°/s）:TE - AMP-LATCH Novo Series最大额定电流1A
最小供电电压250VAC

机械参数

颜色Black深度7.49 mm
间距2.54 mm高度15.97 mm
重量0.005包装方式Bulk
导线类型Ribbon Cable出线方向Without
导线线规26-28 AWG排间距0.100" (2.54mm)
端接方式IDT触头类型Female Socket
极化Center & Military第二连接器Without
外壳颜色Black安装类型No
电缆端类型Without连接器类型NOVO
接触镀层Gold Over Palladium Nickel Over Nickel|Gold Over Nickel安装样式Cable
排数2触头材料Phosphor Bronze
壳体材料Thermoplastic总长度27.94 mm
安装特性Without电缆端接方式IDC
端接样式IDC第一触头极性Socket (Female)
配接方向With触点数24
接触件端接:IDC / IDT位数24
中心触点材料2.54 x 2.54 [.100 x .100]接触镀层厚度30µin (0.76µm)

产品信息

类型IDC Connector连接器性别RCP
系列AMP-LATCH, NOVO产品特性Feed Through, Polarizing Key
产品子类型Receptacles / Sockets - Housings连接类型Ribbon Cable
带调制解调器控制Yes应用细节Wire-to-Board

环境参数

工作温度+105°C

文档与媒体

PDF 文档
1599153.pdf
在线文档
1658622-5?RQPN=1658622-5

相关型号

1658694-9

1658694-9

te connectivity / amp

Conn Ejector Header HDR 24 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER VERT 24POS .100 GOLD Headers & Wire Housings 24P UNIV HDR ACT PIN Conn Ejector Header HDR 24 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 242.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, A/L UNIV HDR 24P ACT PIN

¥15.9120
详情
1-5103308-3

1-5103308-3

te connectivity / amp

Conn Shrouded Header HDR 24 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO STR 24POS GOLD AMP-LATCH IDC Header Vertical 24P Headers & Wire Housings HDR 24 POS VERT BLK LOW PRO Conn Shrouded Header HDR 24 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Pin HeadersLow ProfileNumber of Positions = 242.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE-BOARD CONN, HEADER, 24POS, 2.54MM AMPLATCH,Header-Pin,4sided,1A,24P,Vertical,Black A/L LOW PRO HDR 24P VERT BLACK

¥6.7238
详情
5104338-5

5104338-5

te connectivity / amp

Conn Shrouded Header HDR 24 POS 2.54mm Solder ST Thru-Hole Headers & Wire Housings 100X100 HDR 2X012P VERT LOW PROFILE Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO STR 24POS GOLD Conn Shrouded Header HDR 24 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Pin HeadersLow ProfileNumber of Positions = 242.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE-BOARD CONN, HEADER, 24POS, 2.54MM HEADER,PIN,AMP-LATCH,24POS,2.54X2.54,VERTICAL,LOWPROFILE,PCB TE Connectivity AMP-LATCH 系列 2.54mm节距 24路 (2排) 直 PCB 针座, 焊接端接, 1A , 通孔 A/L LOW PRO HDR 24P VERT HT

¥10.8800
详情

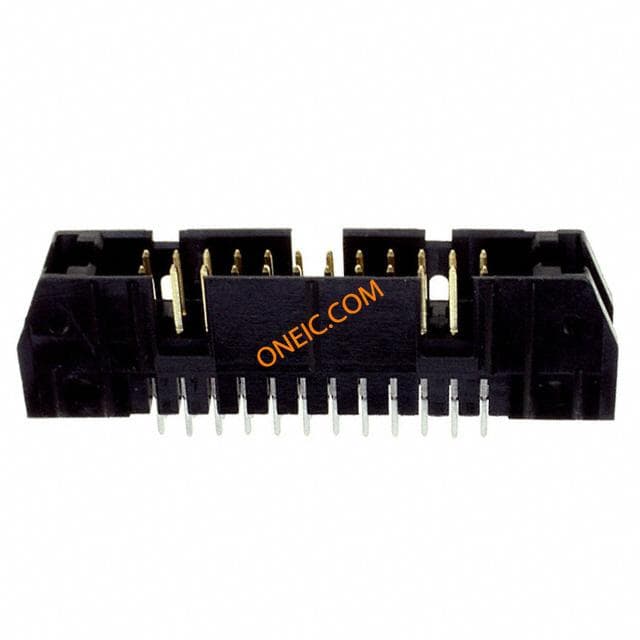

5102156-5
