点击放大查看

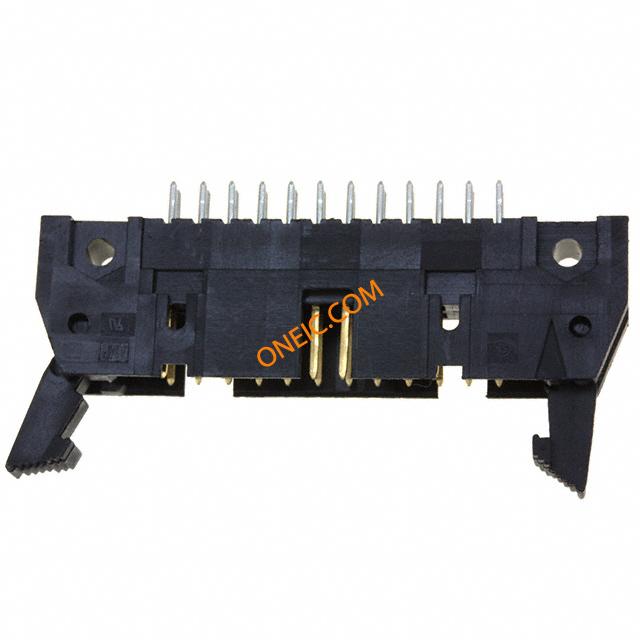

5499374-5
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Ejector Header HDR 24 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER VERT 24POS .100 GOLD Headers & Wire Housings 100X100 HDR 2X012P VERT LOW PRO W/EJECT Conn Ejector Header HDR 24 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 242.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, A/LUNIVHDR24PVERTSHTLAT A/L UNIV HDR 24P VERT SHT LAT |
| 分类 |
商业参数
| 商标名 | AMP-LATCH | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 开关功能 | Ejection | 供电电压 | 250 |
| 输入电阻 | 5000 | 连接器阻抗 | 锁闩, 锁闩 |
| 最大额定电流 | 1/Contact A | 最小供电电压 | 250VAC |
机械参数
| 颜色 | Black | 深度 | 8.53 mm |
| 间距 | 2.54 mm | 高度 | 23.09 mm |
| 长度 | 49.78 mm [ 1.959 in ] | 底座类型 | 不带 |
| 包装方式 | Tray | 遮蔽类型 | Yes |
| 壳体颜色 | 黑色 | 端部尺寸（如SMD/SMT、14mm等） | 3.81 mm [ .15 in ] |
| 引脚样式 | 直角 | 排间距 | 0.100" (2.54mm) |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 柱间距 | 2.54 x 2.54 [.100 x .100] | 极化 | Center, Dual Polarizing Bar, Military |
| 第二连接器 | With | 触点形状 | Square |
| 外壳颜色 | Black | 安装类型 | Vertical |
| 连接器类型 | Universal Ejection Pin Headers | 接触镀层 | Gold Over Palladium Nickel Over Nickel|Gold Over Nickel |
| 紧固类型 | Latch Lock/Eject Hooks | 安装样式 | Through Hole |
| 排数 | 2 | 封装形式 | 4-Sided |
| 外壳材料（壳体） | 4 面 | 驱动力 | 带有 |
| 电路板厚度 | 3.18 [0.125] | 插入件材料 | 黄铜，磷青铜 |
| 锁定特性 | Latch | 外形（宽 x 高） | Standard |
| 触头材料 | Brass/Phos Bronze | 壳体材料 | Thermoplastic |
| 总长度 | 49.78 mm | 安装特性 | 安装耳 |
| 包装数量 | 24 | 面板安装类型 | 通孔 |
| 主要材料 | InterconnectSystem | 尺寸/外形 | 0.64 [.025] |
| 端接样式 | Through Hole | 第一触头极性 | Pin (Male) |
| 外径 | .64 mm [ .025 in ] | 配接方向 | With |
| 触点数 | 24 | 位数 | 24 |
| 触头长度-柱 | 信号（数据） | 安装孔直径 | 带有 |
| 接触件表面处理 - 配合 | 锡 | 接触长度 - 配合 | 0.240" (6.10mm) |
| 端子柱长度 | 3.94 [0.155] | 接触镀层厚度 | 30µin (0.76µm) |
产品信息
| 类型 | Ejector Header | 连接器性别 | HDR |
| 系列 | AMP-LATCH | 极性 | 带有 |
| 制造商全称 | AMP-LATCH | 产品子类型 | Headers |
| 其他规格 | With | 加载位置数 | All |
环境参数
| 温度额定值 | Standard | 工作温度 | -65C to 105C |
| 封装热阻 | 3.18 mm [ .125 in ] | ||
