点击放大查看

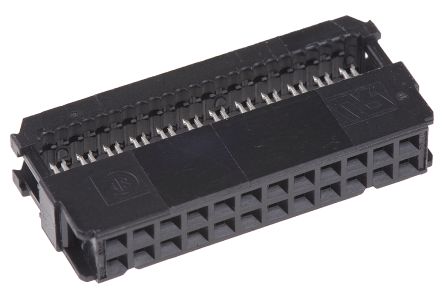

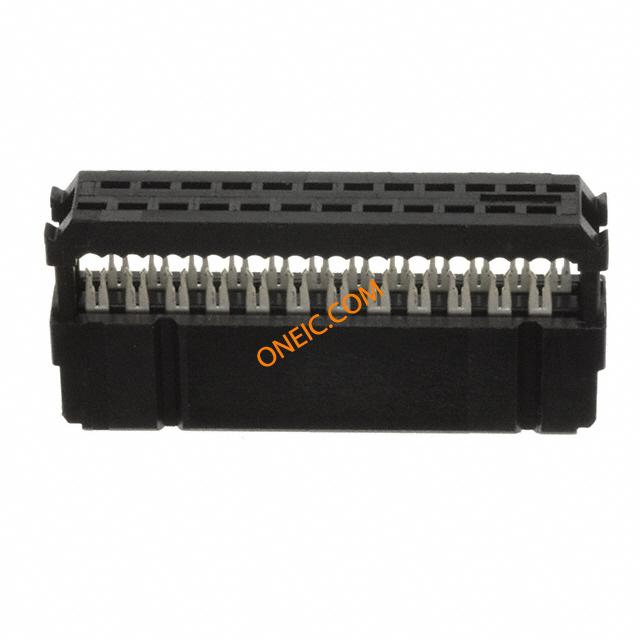

1658620-5

制造商	TE Connectivity Ltd.
描述	Conn IDC Connector F 24 POS 2.54mm IDT RA Cable Mount Ribbon Cable Connectors (AMP-LATCH) CONN IDC SOCKET 24POS 15 GOLD Headers & Wire Housings MLTRY PLRZD RECPT 24 NOVO Conn IDC Connector F 24 POS 2.54mm IDT RA Cable Mount Product Highlights:Connector Type = NOVONumber of Positions = 24ReceptacleMating Polarization Method = MilitaryWith Mating PolarizationSearch Keywords:input/output, paddleboard, paddle board WIRE-BOARD CONNECTOR RECEPTACLE 24POS, 2.54MM CONNECTOR,RECEPTACLE,NOVA,AMP-LATCH,24POSITION,WITHMATINGPOLARIZATION TE Connectivity AMP-LATCH Novo 系列 2行 24路 2.54mm节距母 IDC 连接器 , 电缆安装 24 NOVO MIL 15DP, LEAD FREE
分类	连接器解决方案板对板连接器板对板连接器

对参数有疑问？问 AI 助手

商业参数

商标名	AMP-LATCH	产品类别	Headers & Wire Housings
标准包装数量	Rail / Tube	工厂包装数量	72

合规参数

RoHS	Lead free / RoHS Compliant	海关税号	85369010
无铅定义	Not relevant for lead free process	RoHS/ELV合规状态	RoHS compliant, ELV compliant
材料阻燃等级	UL 94V-0

电气参数

量程（°/s）

:TE - AMP-LATCH Novo Series

机械参数

颜色	Black	间距	2.54 mm
重量	0.004	包装方式	Tube
导线类型	Ribbon Cable	出线方向	Without
导线线规	26-28 AWG	排间距	0.100" (2.54mm)
端接方式	IDT	触头类型	Female Socket
极化	Military	第二连接器	Without
外壳颜色	Black	安装类型	No
电缆端类型	Without	连接器类型	NOVO
接触镀层	Gold Over Palladium Nickel Over Nickel\|Gold Over Nickel	安装样式	Cable
排数	2	触头材料	Phosphor Bronze
壳体材料	Thermoplastic	安装特性	Without
主要材料	InterconnectSystem	电缆端接方式	IDC
端接样式	IDC	第一触头极性	Socket (Female)
配接方向	With	触点数	24
接触件端接	:IDC / IDT	位数	24
中心触点材料	2.54 x 2.54 [.100 x .100]	接触镀层厚度	15µin (0.38µm)

产品信息

备注	Receptacle can be used in applications requiring non-polarization, as well as m	类型	IDC Connector
连接器性别	F	系列	AMP-LATCH NOVO
产品特性	Feed Through	制造商全称	AMP-LATCH
产品子类型	Receptacles / Sockets - Housings	连接类型	Ribbon Cable
带调制解调器控制	Yes	应用细节	Wire-to-Board

文档与媒体

PDF 文档

1599153.pdf

在线文档

1658620-5?RQPN=1658620-5
