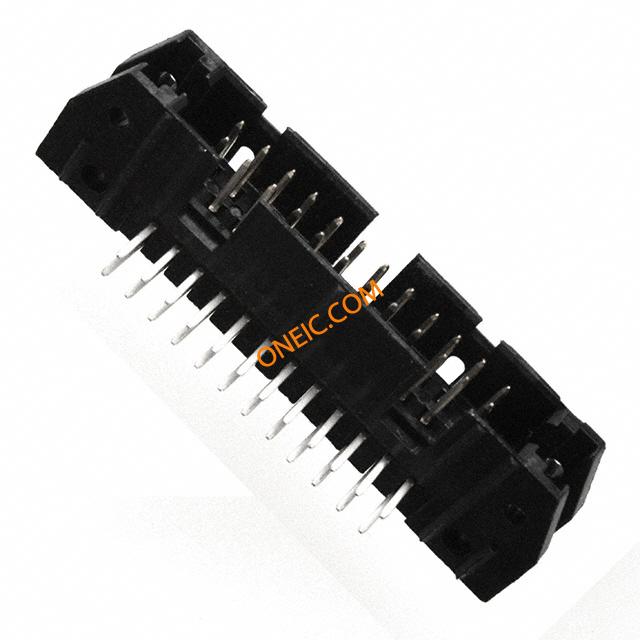

5102161-5
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Ejector Header HDR 24 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER RT/A 24POS .100 GOLD Headers & Wire Housings A/L UNIV HDR 24P RA Conn Ejector Header HDR 24 POS 2.54mm Solder RA Thru-Hole Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 242.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = Right AngleSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, A/L UNIV HDR 24P RA |
| 分类 |
商业参数
| 商标名 | AMP-LATCH | 其他名称 | AHZ24H |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 供电电压 | 250 | 输入电阻 | 1000 – 5000 |
| 连接器阻抗 | 弹出锁闩 | 最大额定电流 | 1 |
机械参数
| 颜色 | Black | 间距 | 2.54 mm |
| 高度 | 13.94 mm [ .55 in ] | 长度 | 49.78 mm [ 1.96 in ] |
| 底座类型 | 不带 | 包装方式 | Bulk |
| 遮蔽类型 | Yes | 壳体颜色 | 黑色 |
| 端部尺寸（如SMD/SMT、14mm等） | 3.81 mm [ .15 in ] | 引脚样式 | 直角 |
| 排间距 | 0.100" (2.54mm) | 端接方式 | Solder |
| 触头类型 | Male Pin | 极化 | Center, Dual Polarizing Bar, Military |
| 第二连接器 | Without | 触点形状 | Square |
| 外壳颜色 | Black | 安装类型 | Right Angle |
| 连接器类型 | Universal Ejection Pin Headers | 接触镀层 | Gold Over Palladium Nickel|Gold Over Nickel |
| 安装样式 | 标准 | 排数 | 2 |
| 封装形式 | 4-Sided | 外壳材料（壳体） | 4 面 |
| 驱动力 | 不带 | 电路板厚度 | 3.18 [0.125] |
| 插入件材料 | 磷青铜 | 外形（宽 x 高） | Standard |
| 触头材料 | Phosphor Bronze | 壳体材料 | Thermoplastic |
| 包装数量 | 60 | 面板安装类型 | 通孔 |
| 尺寸/外形 | 0.64 [.025] | 端接样式 | 插针 |
| 第一触头极性 | Pin (Male) | 外径 | .64 mm [ .025 in ] |
| 配接方向 | With | 触点数 | 24 |
| 位数 | 24 | 兼容外壳尺寸（如TM-700等） | AMP 锁闩母端 |
| 触头长度-柱 | 信号（数据） | 安装孔直径 | 带有 |
| 中心触点材料 | 2.54 x 2.54 [.100 x .100] | 接触件表面处理 - 配合 | 锡 |
| 接触长度 - 配合 | 0.240" (6.10mm) | 端子柱长度 | 3.94 [0.155] |
| 接触镀层厚度 | 15µin (0.38µm) | ||
产品信息
| 类型 | Ejector Header | 连接器性别 | HDR |
| 系列 | AMP-LATCH | 极性 | 带有 |
| 产品子类型 | Headers | 其他规格 | Without |
| 加载位置数 | All | ||
