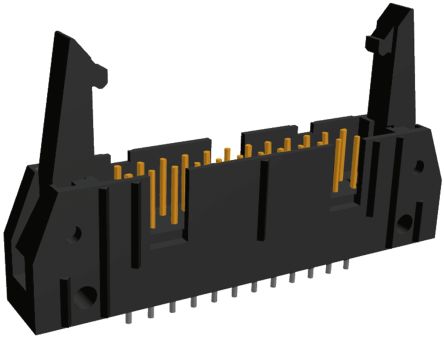

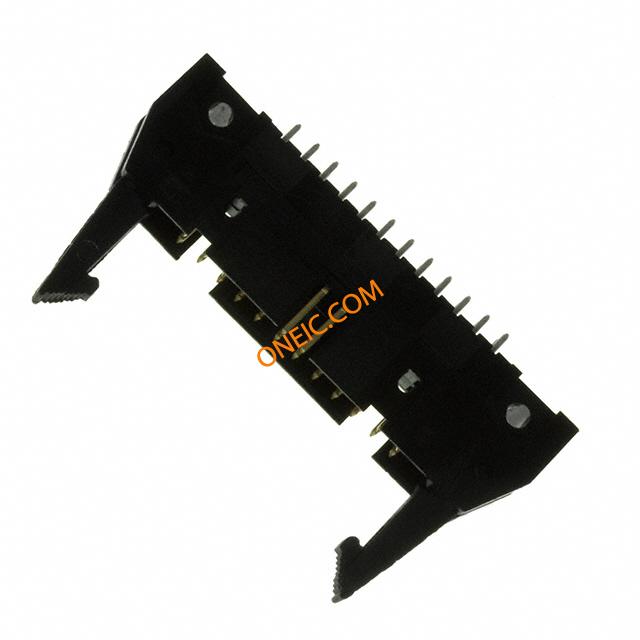

5499206-5
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Ejector Header HDR 24 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER VERT 24POS .100 GOLD Headers & Wire Housings 24 POS HDR 30AU W/LONG LATCHES Conn Ejector Header HDR 24 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 242.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE-BOARD CONN, HEADER, 24POS, 2.54MM TE Connectivity AMP-LATCH 系列 2.54mm节距 24路 (2排) 垂直 PCB 针座, 焊接端接, 1A , 通孔 A/L UNIV HDR 24P VERT LG LAT |
| 分类 |
商业参数
| 商标名 | AMP-LATCH | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Trays | 工厂包装数量 | 36 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366930 |
| 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 量程（°/s） | :TE - AMP-LATCH Series | 开关功能 | Ejection |
| 最大额定电流 | 1/Contact A | 最小供电电压 | 250VAC |
机械参数
| 颜色 | Black | 深度 | 8.53 mm |
| 间距 | 2.54 mm | 高度 | 27.3 mm |
| 重量 | 0 | 包装方式 | Tray |
| 遮蔽类型 | Yes | 排间距 | 0.100" (2.54mm) |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 柱间距 | 2.54 x 2.54 [.100 x .100] | 极化 | Center, Dual Polarizing Bar, Military |
| 第二连接器 | With | 触点形状 | Square |
| 外壳颜色 | Black | 安装类型 | Vertical |
| 连接器类型 | Universal Ejection Pin Headers | 接触镀层 | Gold Over Palladium Nickel Over Nickel|Gold Over Nickel |
| 紧固类型 | Latch Lock/Eject Hooks | 安装样式 | Through Hole |
| 排数 | 2 | 封装形式 | 4-Sided |
| 电路板厚度 | 1.57 [0.062] | 锁定特性 | Latch |
| 外形（宽 x 高） | Standard | 触头材料 | Brass/Phos Bronze |
| 壳体材料 | Thermoplastic | 总长度 | 49.78 mm |
| 尺寸/外形 | 0.64 [.025] | 端接样式 | Through Hole |
| 第一触头极性 | Pin (Male) | 配接方向 | With |
| 触点数 | 24 | 接触件端接 | :Through Hole Vertical |
| 位数 | 24 | 接触长度 - 配合 | 0.240" (6.10mm) |
| 端子柱长度 | 2.79 [0.110] | 接触镀层厚度 | 30µin (0.76µm) |
产品信息
| 类型 | Ejector Header | 连接器性别 | HDR |
| 系列 | AMP-LATCH | 产品子类型 | Headers |
| 其他规格 | With | 加载位置数 | All |
环境参数
| 温度额定值 | Standard | 工作温度 | -55C to 125C |
文档与媒体
相关型号
1658622-5
te connectivity / amp
Conn IDC Connector RCP 24 POS 2.54mm IDT RA Cable Mount Ribbon Cable Connectors (AMP-LATCH) CONN IDC SKT 24POS W/POL GOLD AMP-LATCH Novo IDC Receptacle 24P Headers & Wire Housings .1CL IDC REC 2X12P C&M 30AU Conn IDC Connector RCP 24 POS 2.54mm IDT RA Cable Mount Product Highlights:Connector Type = NOVONumber of Positions = 24ReceptacleMating Polarization Method = Center & MilitaryWith Mating PolarizationSearch Keywords:input/output, paddleboard, paddle board WIRE-BOARD CONNECTOR RECEPTACLE 24POS, 2.54MM CONNECTOR,RECEPTACLE,NOVA,AMP-LATCH,24POSITION,WITHMATINGPOLARIZATION 24 NOVO MIL/CTR 30DP,LEAD FREE
1-1658526-4
te connectivity / amp
Conn IDC Connector F 24 POS 2.54mm IDT RA Cable Mount Ribbon Cable Connectors (AMP-LATCH) CONN RCPT 24POS VERT GOLD Conn IDC Connector F 24 POS 2.54mm IDT RA Cable Mount Product Highlights:Connector Type = AMP-LATCHNumber of Positions = 24ReceptacleMating Polarization Type = Center & MilitaryWith Mating Polarization
1658621-5
te connectivity / amp
Conn IDC Connector F 24 POS 2.54mm IDT RA Cable Mount Ribbon Cable Connectors (AMP-LATCH) CONN IDC SKT 24POS W/POL 15 GOLD AMP-Latch receptacle,0.08-0.15mm²,24way Headers & Wire Housings CNTR PLRZD RECPT 24P NOVO Conn IDC Connector F 24 POS 2.54mm IDT RA Cable Mount Product Highlights:Connector Type = NOVONumber of Positions = 24ReceptacleMating Polarization Method = Center & MilitaryWith Mating PolarizationSearch Keywords:input/output, paddleboard, paddle board WIRE-BOARD CONNECTOR RECEPTACLE 24POS, 2.54MM CONNECTOR,RECEPTACLE,NOVA,AMP-LATCH,24POSITION,WITHMATINGPOLARIZATION TE Connectivity AMP-LATCH Novo 系列 2行 24路 2.54mm节距 直角 母 IDC 连接器 , 电缆安装 24 NOVO MIL/CTR 15DP,LEAD FREE
1658620-5
te connectivity / amp
Conn IDC Connector F 24 POS 2.54mm IDT RA Cable Mount Ribbon Cable Connectors (AMP-LATCH) CONN IDC SOCKET 24POS 15 GOLD Headers & Wire Housings MLTRY PLRZD RECPT 24 NOVO Conn IDC Connector F 24 POS 2.54mm IDT RA Cable Mount Product Highlights:Connector Type = NOVONumber of Positions = 24ReceptacleMating Polarization Method = MilitaryWith Mating PolarizationSearch Keywords:input/output, paddleboard, paddle board WIRE-BOARD CONNECTOR RECEPTACLE 24POS, 2.54MM CONNECTOR,RECEPTACLE,NOVA,AMP-LATCH,24POSITION,WITHMATINGPOLARIZATION TE Connectivity AMP-LATCH Novo 系列 2行 24路 2.54mm节距 母 IDC 连接器 , 电缆安装 24 NOVO MIL 15DP, LEAD FREE
1658623-5
te connectivity / amp
Conn IDC Connector RCP 24 POS 2.54mm IDT RA Cable Mount Tube Ribbon Cable Connectors (AMP-LATCH) CONN IDC SOCKET 24POS GOLD Headers & Wire Housings .1CL IDC REC 2X12P MIL 30AU Conn IDC Connector RCP 24 POS 2.54mm IDT RA Cable Mount Tube Product Highlights:PreloadedConnector Type = NOVOHousing Gender = Receptacle24 PositionsReceptacleSearch Keywords:input/output, paddleboard, paddle board 24 Position 2.54 mm Pitch Wire to Board Receptacle Assembly TE Connectivity AMP-LATCH Novo 系列 2行 24路 2.54mm节距 母 IDC 连接器 , 电缆安装 24 NOVO MIL 30DP, LEAD FREE
