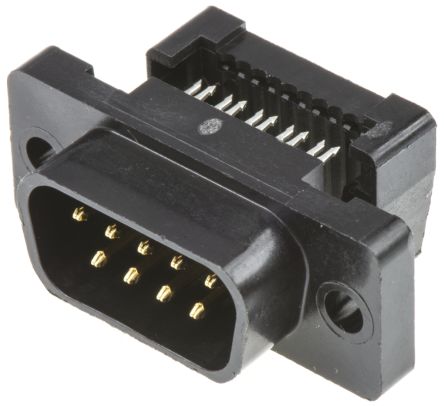

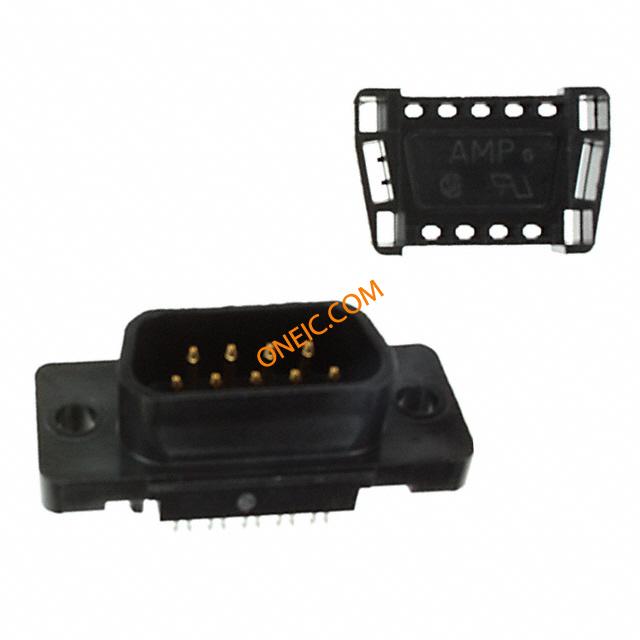

点击放大查看
1658615-4
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn D-Subminiature PIN 9 POS 2.77mm IDT RA Cable Mount 9 Terminal 1 Port D-Sub Standard Connectors LPP PLUG 9P Standard Cable Connectors CONN D-SUB PLUG 9POS GOLD AMPLIMITE HDF-20 d-sub IDC plug,9 pin Conn D-Subminiature PIN 9 POS 2.77mm IDT RA Cable Mount 9 Terminal 1 Port Product Highlights:ConnectorProduct Series = HDF-20 (Ribbon Cable)Number of Positions = 9PlugWith ContactsSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub PLUG, IDC, D, PLASTIC, 9WAY Conn;D-Ribbon;CablePlug;9Pos;STR;HDF-20Series;IDC;28-26AWG;PlasticShell D-sub plug 9P, 1658615-4, TE Connectivity TE Connectivity AMPLIMITE HDF-20 系列 2.77mm 节距 9 路 IDC D-Sub 带状电缆连接器, 插头, 热塑性外壳 09 POS HDF PLUG, AP, LEAD FREE |
| 分类 |
商业参数
| 产品类别 | D-Sub Standard Connectors | 标准包装数量 | Rail / Tube |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| 抗辐射加固 | No | 无铅定义 | Not relevant for lead free process |
| 认证机构 | :CSA, UL | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 量程（°/s） | :TE CONNECTIVITY - Amplimite HDF-20 Series | 额定电压 | 250 V ac |
| 接触电阻 | :25mohm | 最大额定电流 | 1.25A |
| 最小供电电压 | 250VAC | 触点额定电流 | :1.25A |
机械参数
| 颜色 | Black | 深度 | 12.59mm |
| 间距 | 2.77 mm | 宽度 | 18.56mm |
| 高度 | 18.56 mm | 长度 | 30.88mm |
| 重量 | 0.01 | 材料（通用） | :Black Thermoplastic |
| 包装方式 | Tube | 电缆类型 | Ribbon Cable |
| 外壳尺寸 | 1 | 端接方式 | IDT |
| 触点尺寸 | 20 | 触头类型 | Signal |
| 第二连接器 | With | 电缆开口 | 747275-4 |
| 安装类型 | Cable Mount | 外壳镀层 | Thermoplastic |
| 连接器类型 | Insulation Displacement Crimp (IDC) | 接触镀层 | Gold |
| 法兰特征 | Housing/Shell (Unthreaded) | 安装样式 | Wire |
| 排数 | 2 | 外壳材料（壳体） | Plastic |
| 连接器样式 | D-Sub | 锁定特性 | Mounting Holes |
| 本体材料 | :Plastic | 外形（宽 x 高） | Low |
| 触头材料 | Phosphor Bronze | 壳体材料 | Thermoplastic |
| 总长度 | 30.88 mm | 尺寸/外形 | 30.88 x 18.56 x 12.59mm |
| 接地凹痕 | With | 端接样式 | IDC |
| 触点数 | 9 | 接触件端接 | :IDC / IDT |
| 绝缘直径 | 0.81 â 0.97 [0.032 â 0.038] | 位数 | 9 |
| 外壳尺寸-插件 | All Plastic | 接触镀层厚度 | Flash |
| 外部壳体材料 | Thermoplastic | 线规或范围 - mm² | 0.08 - 0.15 [28-26] |
| 第一连接器安装类型 | :Cable | 外壳尺寸，连接器布局 | 1 (DE, E) |
产品信息
| 备注 | All plug assemblies are supplied with housing and cover preassembled | 类型 | D-Subminiature |
| 等级 | Standard | 连接器性别 | PIN |
| 系列 | HDF-20 | 产品特性 | Feed Through |
| 对数 | 747275-4 | 产品子类型 | Connector |
| 端口数 | 1 Port | ||
环境参数
| 工作温度 | -55°C ~ 105°C | ||
