点击放大查看

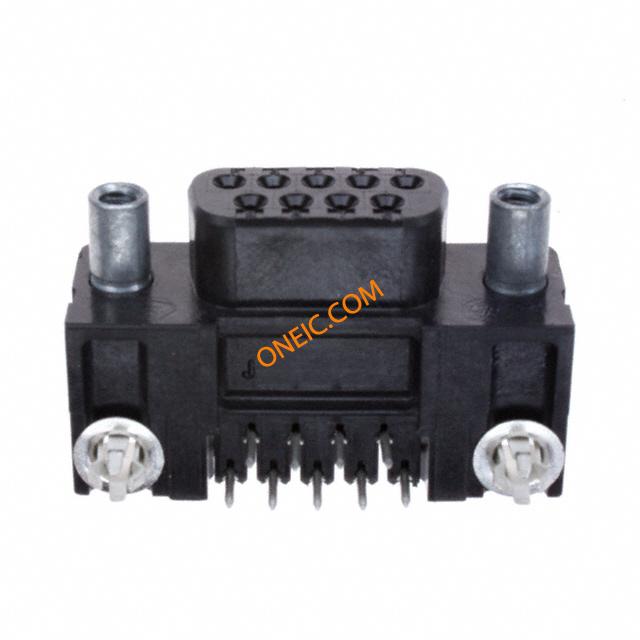

5748979-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn D-Subminiature SKT 9 POS 2.76mm Solder RA Thru-Hole 9 Terminal 1 Port D-Sub Standard Connectors DSUB E09S RA318 Standard Board Mount Connectors CONN D-SUB RECPT R/A 9POS PCB AU Conn D-Subminiature SKT 9 POS 2.76mm Solder RA Thru-Hole 9 Terminal 1 Port Product Highlights:9 PositionsHousing Gender = ReceptaclePCB Mount Angle = Right AngleProduct Series = HD 20With Mating Connector LockSearch Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub Conn;D-Sub;PCBSocket;9Pos;RTAng;HD-20Series;20AWG;AllPlasticShell TE Connectivity Amplimite HD-20 系列 9 路 直角 通孔安装 PCB D-sub 连接器 插座 AMP III RCPT 9P RA 318 FFSCRLK/BDLK |
| 分类 |
商业参数
| 产品类别 | D-Sub Standard Connectors | 标准包装数量 | Tape & Reel |
| 工厂包装数量 | 130 | ||
合规参数
| RoHS | RoHS Compliant | 抗辐射加固 | No |
| 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 接地方式 | Without | 额定电压 | 125V |
| 连接器阻抗 | 母端螺钉锁，固定 | ||
机械参数
| 颜色 | Black | 深度 | 18.87 mm |
| 间距 | 2.76 mm | 宽度 | 18.18mm |
| 高度 | 11.48 mm | 长度 | 31.04mm |
| 密封型 | No | 外形尺寸(长x宽) | 1 |
| 镀层 | Tin | 材料（通用） | Copper Alloy |
| 包装方式 | Tray | 壳体颜色 | 黑色 |
| 外壳尺寸 | 1 | 方向 | 直角 |
| 端接方式 | Solder | 触头类型 | Signal |
| 第二连接器 | With | 安装类型 | Through Hole |
| 连接器类型 | Receptacle, Female Sockets | 接触镀层 | Gold |
| 法兰特征 | Mating Side; Female Screwlock (4-40) | 接地类型 | Without |
| 尖端材料（笔尖） | Tin | 安装样式 | Through Hole |
| 排数 | 2 | 壳体镀层 | 锡 |
| 电路板厚度 | 0.062 [1.57] | 连接器样式 | D-Sub |
| 插入件材料 | 磷青铜 | 锁定特性 | Female Screwlocks, Fixed |
| 磁芯材质 | 黄铜 | 外形（宽 x 高） | Standard |
| 触头材料 | Phosphor Bronze | 壳体材料 | Thermoplastic |
| 总长度 | 31.04 mm | 安装特性 | 板锁 |
| 包装数量 | 130 | 面板安装类型 | Without |
| 尺寸/外形 | 31.04 x 18.18 x 11.48mm | 接地凹痕 | Without |
| 外形尺寸 长x宽x高 | 8.08 [.318] | 端接样式 | Solder |
| 连接器颜色 | None | 触点数 | 9 |
| 位数 | 9 | 外壳尺寸-插件 | All Plastic |
| 端子螺钉表面处理 | 透明铬酸盐 | 端子柱长度 | 3.18 [0.125] |
| 接触镀层厚度 | 30µin (0.76µm) | 螺钉材料 - 镀层 | Clear Chromate |
| 外壳与棱镜材料 | 是 | 后壳材料及镀层 | 锡 |
| 外壳尺寸，连接器布局 | 1 (DE, E) | ||
产品信息
| 类型 | D-Subminiature | 连接器性别 | SKT |
| 系列 | HD-20 | 产品特性 | Board Lock |
| 可密封 | 否 | 制造商全称 | AMP |
| 预装 | 是 | 产品子类型 | 连接器 |
| 端口数 | 1 Port | 基础产品编号 | 5748979 |
| 其他规格 | 4-40 UNC 包容式螺钉锁，板锁 | ||
环境参数
| 工作温度 | -55°C ~ 105°C | 封装热阻 | 1.57 mm [ .062 in ] |
