点击放大查看

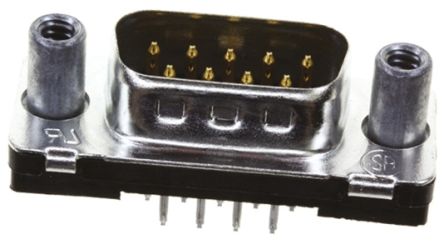

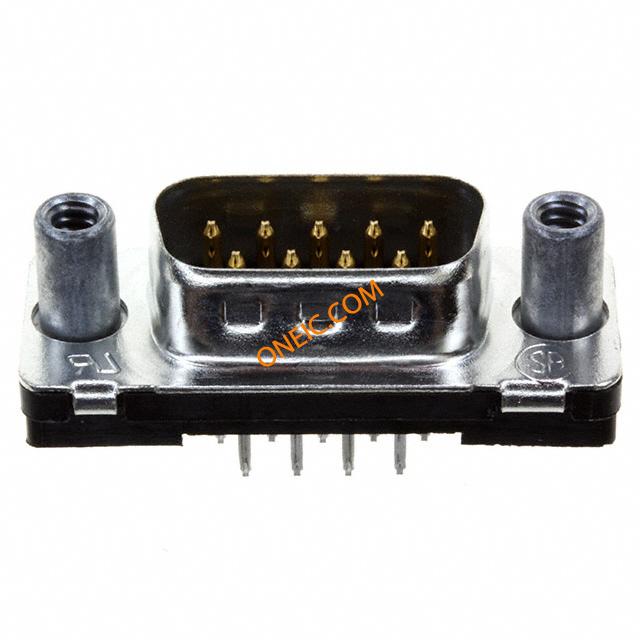

1-5747871-4
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn D-Subminiature PIN 9 POS 2.74mm Solder ST Thru-Hole 9 Terminal 1 Port D-Sub Standard Connectors PLUG FRNT MTL SHL 9P female screwlocks Standard Board Mount Connectors CONN D-SUB PLUG STR 9POS GOLD Conn D-Subminiature PIN 9 POS 2.74mm Solder ST Thru-Hole 9 Terminal 1 Port Product Highlights:9 PositionsWith ContactsHousing Gender = PlugPCB Mount Angle = VerticalProduct Series = HD 20Search Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub D SUB CONNECTOR, STANDARD, 9POS, PLUG Conn;D-Sub;PCBPlug;9Pos;STR;HD-20Series;20AWG;FrontMetalShell TE Connectivity Amplimite HD-20 系列 2.743mm 节距 9 路 直向 印刷电路板安装 PCB D-sub 连接器 插头 09 PLUG SP/FMS SCRLK |
| 分类 |
商业参数
| 产品类别 | D-Sub Standard Connectors | 标准包装数量 | Rail / Tube |
| 工厂包装数量 | 17 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85366910 |
| 抗辐射加固 | No | 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 接地方式 | Without | 量程（°/s） | :TE CONNECTIVITY - Amplimite HD-20 Series |
| 额定电压 | 125V | 最大额定电流 | 6A |
| 最小供电电压 | 250VDC/250VAC | ||
机械参数
| 颜色 | Black | 深度 | 12.54 mm |
| 间距 | 2.74 mm | 高度 | 11.96 mm |
| 密封型 | No | 重量 | 0.005 |
| 包装方式 | Tube | 外壳尺寸 | 1 |
| 端接方式 | Solder | 触头类型 | Signal |
| 第二连接器 | With | 触点形状 | Round |
| 安装类型 | Through Hole | 外壳镀层 | Tin |
| 连接器类型 | Plug, Male Pins | 接触镀层 | Gold |
| 法兰特征 | Mating Side; Female Screwlock (4-40) | 接地类型 | Without |
| 安装样式 | Through Hole | 排数 | 2 |
| 外壳材料（壳体） | Steel | 电路板厚度 | 0.062 â 0.093 [1.57 â 2.36] |
| 连接器样式 | D-Sub | 锁定特性 | Female Screwlocks, Fixed |
| 本体材料 | :Metal | 外形（宽 x 高） | Standard |
| 触头材料 | Brass | 壳体材料 | Thermoplastic |
| 总长度 | 30.81 mm | 面板安装类型 | Without |
| 尺寸/外形 | 0.66 [.026] | 接地凹痕 | With |
| 端接样式 | Solder | 连接器颜色 | None |
| 触点数 | 9 | 接触件端接 | :Through Hole Vertical |
| 位数 | 9 | 外壳尺寸-插件 | Front Metal Shell |
| 安装孔直径 | 3.07 [.121] | 外壳材料及表面处理 | Steel, Tin Plated |
| 端子柱长度 | 3.18 [0.125] | 接触镀层厚度 | Flash |
| 螺钉材料 - 镀层 | Zinc | 外壳尺寸，连接器布局 | 1 (DE, E) |
产品信息
| 备注 | Plugs are preloaded with size 20 DF posted pin contacts | 类型 | D-Subminiature |
| 连接器性别 | PIN | 系列 | HD-20 |
| 产品特性 | Grounding Indents | 制造商全称 | AMP |
| 端口数 | 1 Port | ||
环境参数
| 工作温度 | -55°C ~ 105°C | ||
