745454-2

点击放大查看

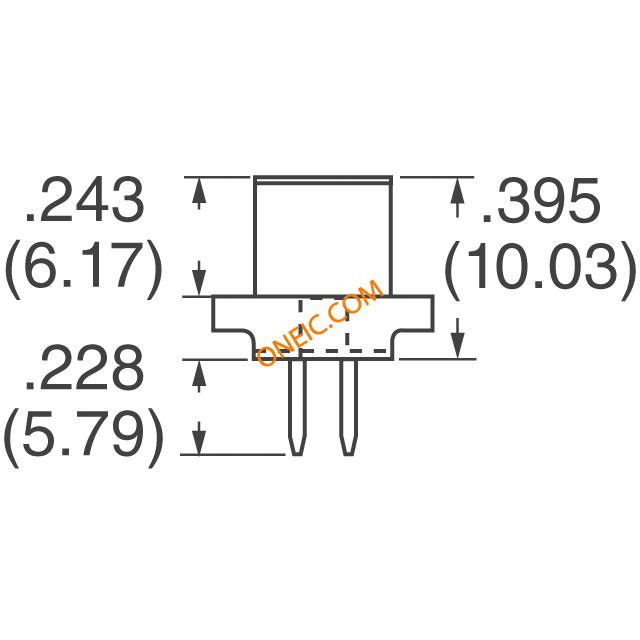

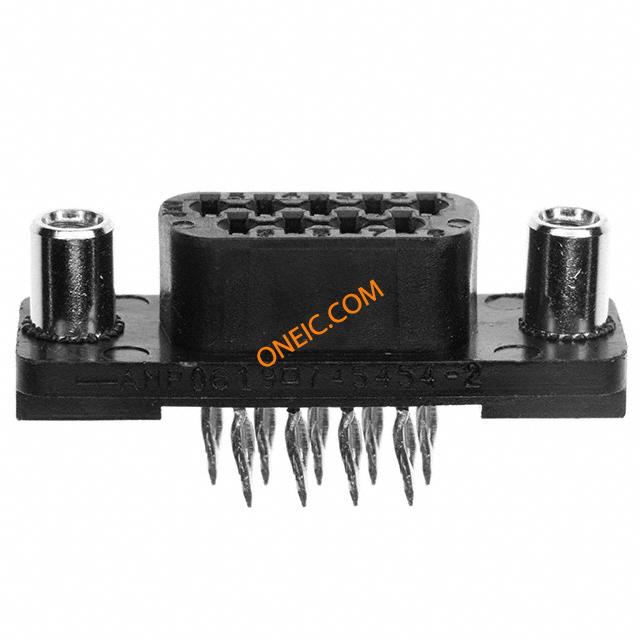

745454-2

制造商
TE Connectivity Ltd.
描述Conn D-Subminiature SKT 9 POS 2.74mm Solder ST Thru-Hole 9 Terminal 1 Port D-Sub Standard Connectors HD-20 9P SOCKET Standard Board Mount Connectors CONN D-SUB RECPT STR 9POS PCB AU Conn D-Subminiature SKT 9 POS 2.74mm Solder ST Thru-Hole 9 Terminal 1 Port Product Highlights:Number of Positions = 9ReceptaclePCB Mount Angle = VerticalProduct Series = HD 20With Mating Connector LockSearch Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub 09 RCPT ACT PIN/AP LOW SCRLK
分类
连接器解决方案D-Sub连接器
对参数有疑问？问 AI 助手

商业参数

其他名称A23136产品类别D-Sub Standard Connectors
标准包装数量Trays工厂包装数量130

合规参数

RoHSRoHS Compliant无铅定义Not suitable for lead free processing
标准编号UL E81956RoHS/ELV合规状态RoHS/Not ELV Compliant
材料阻燃等级UL 94V-0

电气参数

接地方式Without连接器阻抗母端螺钉锁，固定

机械参数

颜色Black间距2.74 mm
密封型No外形尺寸(长x宽)1
锁定类型带有包装方式Bulk
壳体颜色黑色外壳尺寸1
端接方式Solder触头类型Signal
柱间距.108第二连接器With
安装类型Through Hole连接器类型Receptacle, Female Sockets
接触镀层Gold法兰特征Mating Side; Female Screwlock (4-40)
接地类型Without安装样式Through Hole
排数2外壳材料（壳体）全塑
电路板厚度0.093 [2.36]连接器样式D-Sub
插入件材料铜镍合金锁定特性Female Screwlocks, Fixed
外形（宽 x 高）Low触头材料Copper Alloy
壳体材料Thermoplastic安装特性作用/符合标准的尾, 安装孔
包装数量130面板安装类型Without
接地凹痕Without端接样式Through Hole
连接器颜色None触点数9
位数9外壳尺寸-插件All Plastic
端子螺钉表面处理镍安装孔直径3.05 [.120]
端子柱长度5.80 [0.228]接触镀层厚度30µin (0.76µm)
螺钉材料 - 镀层Brass外壳与棱镜材料是
外壳尺寸，连接器布局1 (DE, E)

产品信息

类型D-Subminiature连接器性别SKT
系列HD-20可密封否
制造商全称AMP预装是
产品子类型连接器

环境参数

工作温度-55°C ~ 105°C封装热阻2.36 mm [ .093 in ]
