5747459-2

点击放大查看

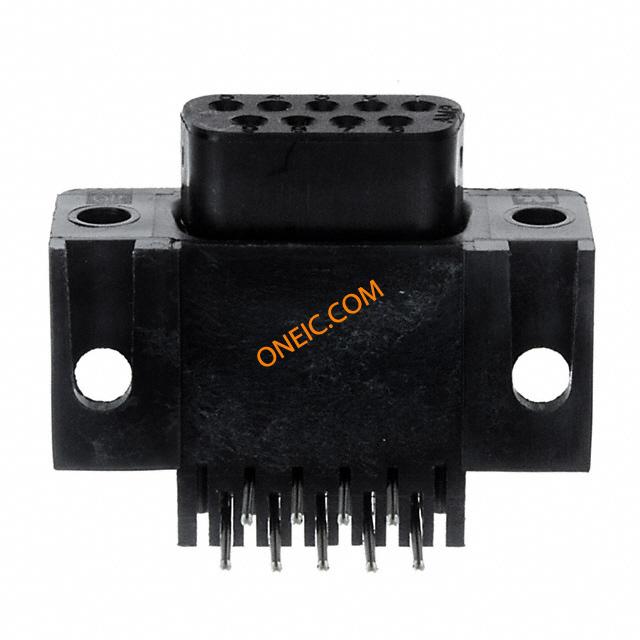

5747459-2

制造商
TE Connectivity Ltd.
描述Conn D-Subminiature SKT 9 POS 2.74mm Solder RA Thru-Hole 9 Terminal 1 Port D-Sub Standard Connectors DSUB E09S RA590 Standard Board Mount Connectors CONN D-SUB RECPT R/A 9POS PCB AU Standard Board Mount Connectors Product Highlights:Number of Positions = 9ReceptaclePCB Mount Angle = Right AngleProduct Series = HD 20Without Mating Connector LockSearch Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub Conn;D-Sub;PCBSocket;9Pos;RTAng;HD-20Series;20AWG;AllPlasticShell HD-20 RCPT 9P RA 590
分类
连接器解决方案D-Sub连接器
对参数有疑问？问 AI 助手

商业参数

标准包装规格140产品类别D-Sub Standard Connectors
标准包装数量Trays工厂包装数量140

合规参数

RoHSRoHS Compliant无铅定义Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c
RoHS/ELV合规状态RoHS compliant, ELV compliant材料阻燃等级UL 94V-0

电气参数

接地方式Without额定电压125V
最大额定电流6A

机械参数

颜色Black密封型No
外形尺寸(长x宽)1占位面积14.99 [.590]
包装方式Bulk壳体颜色黑色
引脚样式Round外壳尺寸1
端接方式Solder触头类型Signal
柱间距.108第二连接器Without
触点形状Round安装类型Right Angle
连接器类型Receptacle, Female Sockets接触镀层Gold
法兰特征Housing/Shell (Unthreaded)接地类型Without
安装样式Through Hole排数2
电路板厚度0.093 [2.36]连接器样式D-Sub
插入件材料磷青铜外形（宽 x 高）Standard
触头材料Phosphor Bronze壳体材料Thermoplastic
安装特性安装孔包装数量140
面板安装类型Without尺寸/外形0.66 [.026]
接地凹痕Without端接样式Through Hole
连接器颜色None外径.66 mm [ .026 in ]
触点数9位数9
外壳尺寸-插件All Plastic安装孔直径3.18 [.125]
端子柱长度3.18 [0.125]接触镀层厚度30µin (0.76µm)
触点材料 - 镀层锌外壳与棱镜材料是
外壳尺寸，连接器布局1 (DE, E)

产品信息

备注All receptacles are preloaded with size 20 DF posted socket contacts连接器性别Receptacle
系列HD-20可密封否
制造商全称AMP预装是
产品子类型连接器

环境参数

工作温度-55°C ~ 105°C封装热阻2.36 mm [ .093 in ]
