点击放大查看

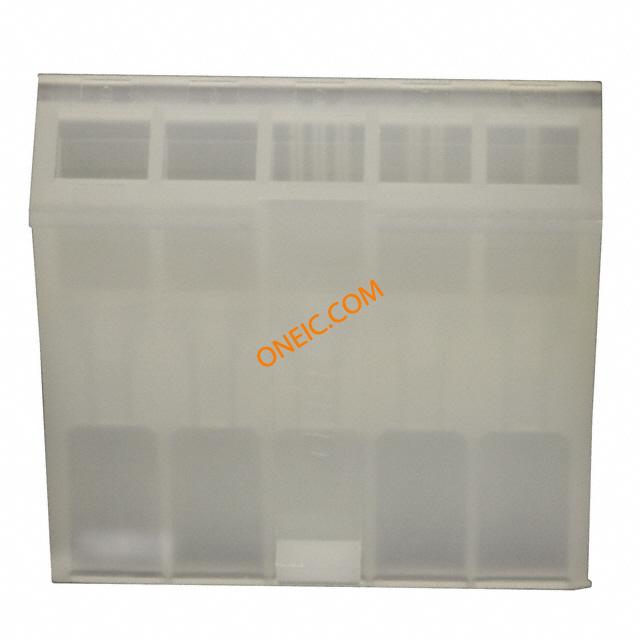

1586024-5
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing PL 5 POS 4.2mm ST VAL-U-LOK Series Connector System CONN PLUG HOUSING 5POS SGL 4.2MM 5w s/r free hanging plug Pin & Socket Connectors 5P S/R FH PLUG V2 Conn Housing PL 5 POS 4.2mm ST Search Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Cabled Power, pcb connectors, discrete wire, crimp, Power Economy, Molex Mini-Fit Jr, VAL-U-LOK, 4.2mm, PE, PE Series Connector System, .165 Centerline PE, Valulok, PWRSIGALLP PLUG HOUSING, FREE, 5WAY PLUG,FREEHANGING,VAL-U-LOK,5POS,SINGLEROW,UL94V-2 Male crimp housing Pitch4.2 mm Poles 1 x 5 VAL-U-LOK, 1586024-5, TE Connectivity 5P S/R FH PLUG VAL-U-LOK V2 |
| 分类 |
商业参数
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | Not applicable / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-2 | ||
电气参数
| 最大额定电流 | 9 A | 最小供电电压 | 600VAC |
机械参数
| 颜色 | Natural | 深度 | 23.8mm |
| 间距 | 4.2 mm | 长度 | 22.2mm |
| 重量 | 0.001 | 材料（通用） | Nylon |
| 包装方式 | Bulk | 排间距 | 0.165" (4.20mm) |
| 触头类型 | Male Pin | 外壳颜色 | Natural |
| 安装类型 | Straight | 连接器类型 | Plug |
| 接触镀层 | Tin, Gold | 紧固类型 | Locking Ramp |
| 安装样式 | Free Hanging | 排数 | 1 |
| 材料表面处理 | :- | 触头材料 | Brass, Phosphor Bronze |
| 壳体材料 | Nylon | 总长度 | 22.2 mm |
| 主要材料 | InterconnectSystem | 端接样式 | Crimp |
| 第一触头极性 | Pin (Male) | 连接器颜色 | :Clear |
| 触点数 | 5 | 接触件端接 | Crimp |
| 位数 | 5 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | PL | 系列 | PE |
| 制造商全称 | VAL-U-LOK | 产品子类型 | Housing |
| 电路数 | 5 | 适用产品/相关产品 | Wire-to-Board Connector, Wire-to-Panel Connector, Wire-to-Wire Connector |
环境参数
| 插拔次数 | :50 | ||
