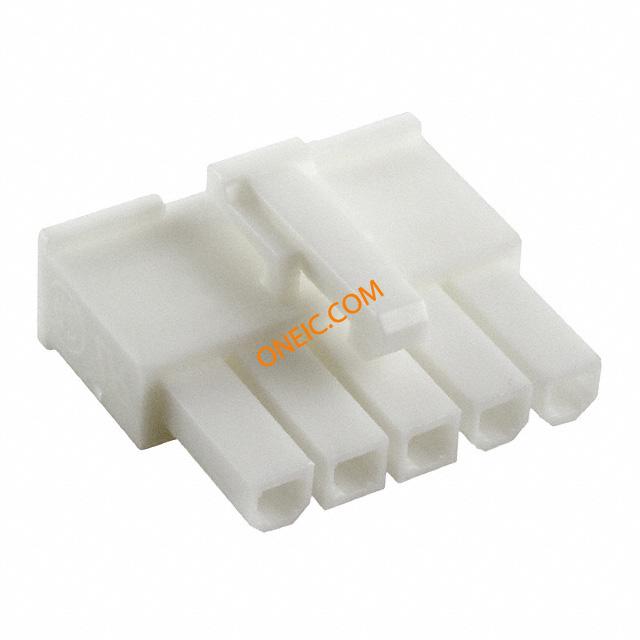

1586027-5
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 5 POS 4.2mm ST Bag VAL-U-LOK Series Connector System CONN RCPT 5POS FREE HANGING WHT Pin & Socket Connectors RECPT HSG 5P 94-V0 Conn Housing RCP 5 POS 4.2mm ST Bag Search Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Cabled Power, pcb connectors, discrete wire, crimp, Power Economy, Molex Mini-Fit Jr, VAL-U-LOK, 4.2mm, PE, PE Series Connector System, .165 Centerline PE, Valulok, PWRSIGALLP RECEPTACLE,HOUSING,VAL-U-LOK,5POS,SINGLEROW,UL94V-0 5P SR RCPT VAL-U-LOK V0 |
| 分类 |
商业参数
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | UL等级 | 获得认可 |
| 零件状态 | E28476 | 无铅定义 | Not relevant for lead free process |
| CSA档案号 | 208567 | 标准编号 | CSA, UL |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | UL阻燃等级 | UL 94V-0 |
| 认证机构标志 | 否 | 材料阻燃等级 | UL 94V-0 |
电气参数
| 供电电压 | 600 | 中心频率 | 带有 |
机械参数
| 颜色 | Natural | 间距 | 4.2 mm |
| 宽度 | 19.8 mm [ .779 in ] | 高度 | 7.5 mm [ .295 in ] |
| 长度 | 22.2 mm [ .874 in ] | 密封型 | Not Sealed |
| 材料（通用） | Nylon | 包装方式 | Bulk |
| 电缆类型 | 分离式导线 | 排间距 | 0.165" (4.20mm) |
| 触头类型 | Female Socket | 安装类型 | Straight |
| 连接器类型 | Receptacle | 接触镀层 | Without |
| 紧固类型 | Latch Lock | 排数 | 1 |
| 封装形式 | Receptacle | 插入力 | 15 |
| 壳体材料 | 尼龙 66, 尼龙 66 | 包装数量 | 1000 |
| 主要材料 | InterconnectSystem | 端接样式 | 插座 |
| 触点数 | 5 | 接触件端接 | Crimp |
| 绝缘直径 | 1.2 – 3.1 mm [ .047 – .122 in ] | 位数 | 5 |
| 典型触点布局 | 直插式 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 制造商全称 | VAL-U-LOK |
| 产品子类型 | Housing | 电路数 | 5 |
| 选择性装载 | No | 装配配置 | Without |
环境参数
| 测试温度 | 标准件 - 非灼热丝 | 工作温度 | -40 – 105 °C [ -40 – 221 °F ] |
