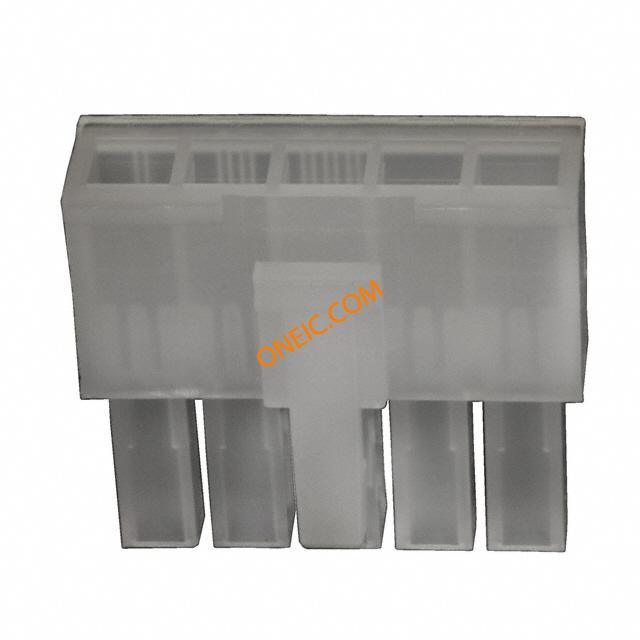

1586026-5
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 5 POS 4.2mm ST VAL-U-LOK Series Connector System CONN RCPT HOUSING 5POS SGL 4.2MM 5w s/r receptacle housing Pin & Socket Connectors 5P SR RCPT V2 Conn Housing RCP 5 POS 4.2mm ST Search Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Cabled Power, pcb connectors, discrete wire, crimp, Power Economy, Molex Mini-Fit Jr, VAL-U-LOK, 4.2mm, PE, PE Series Connector System, .165 Centerline PE, Valulok, PWRSIGALLP RECEPTACLE,HOUSING,VAL-U-LOK,5POS,SINGLEROW,UL94V-2 Female crimp housing Pitch4.2 mm Poles 1 x 5 VAL-U-LOK, 1586026-5, TE Connectivity TE Connectivity VAL-U-LOK 系列 4.2mm 节距 5 路 直 母 压接连接器外壳 5P SR RCPT VAL-U-LOK V2 |
| 分类 |
商业参数
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 1000 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | UL等级 | 获得认可 |
| 零件状态 | E28476 | 无铅定义 | Not relevant for lead free process |
| CSA档案号 | 208567 | 标准编号 | CSA, UL |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | UL阻燃等级 | UL 94V-2 |
| 认证机构标志 | 否 | 材料阻燃等级 | UL 94V-2 |
电气参数
| 额定电压 | 600 | 极数 | 1 x 5 |
| 供电电压 | 600 | 中心频率 | 带有 |
| 最大额定电流 | 9 A | 最小供电电压 | 600VAC |
机械参数
| 颜色 | Natural | 深度 | 19.8mm |
| 间距 | 4.2 mm | 宽度 | 19.8 mm [ .779 in ] |
| 高度 | 7.5 mm [ .295 in ] | 长度 | 22.2mm |
| 密封型 | Not Sealed | 材料（通用） | Nylon |
| 包装方式 | Bulk | 电缆类型 | 分离式导线 |
| 方向 | 直 | 排间距 | 0.165" (4.20mm) |
| 触头类型 | Female Socket | 外壳颜色 | Natural |
| 安装类型 | Straight | 连接器类型 | Receptacle |
| 接触镀层 | Tin, Gold | 紧固类型 | Latch Lock |
| 安装样式 | Free Hanging | 排数 | 1 |
| 封装形式 | Receptacle | 插入力 | 15 |
| 触头材料 | Brass, Phosphor Bronze | 壳体材料 | Nylon |
| 总长度 | 22.2 mm | 包装数量 | 1000 |
| 主要材料 | InterconnectSystem | 端接样式 | Crimp |
| 第一触头极性 | Socket (Female) | 触点数 | 5 |
| 接触件端接 | Crimp | 绝缘直径 | 1.2 – 3.1 mm [ .047 – .122 in ] |
| 位数 | 5 | 典型触点布局 | 直插式 |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 系列 | PE |
| 制造商全称 | VAL-U-LOK | 产品子类型 | Housing |
| 连接方式 | Wire-Board | 电路数 | 5 |
| 选择性装载 | No | 装配配置 | Without |
| 适用产品/相关产品 | Wire-to-Board Connector, Wire-to-Panel Connector, Wire-to-Wire Connector | ||
环境参数
| 测试温度 | 标准件 - 非灼热丝 | 工作温度 | -40 – 105 °C [ -40 – 221 °F ] |
