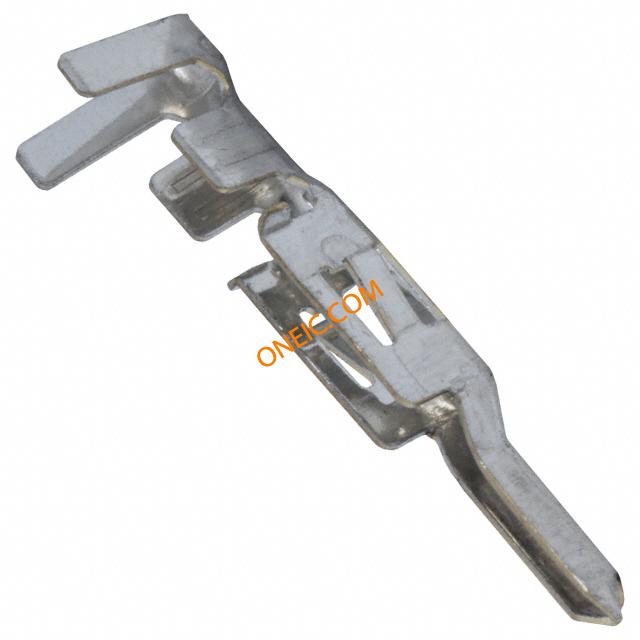

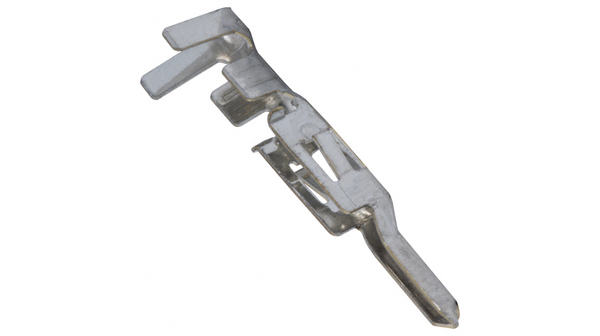

1586314-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact PIN Crimp ST Cable Mount Loose Piece VAL-U-LOK Series Connector System CONN TERM PIN 18-22AWG TIN 4.2 PE series 22-18 awg contact pin Pin & Socket Connectors 4.2MM PIN 22-18AWG BRASS-TIN Conn Contact PIN 1 POS Crimp ST Cable Mount Loose Piece Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactPinWire Range = 0.20-0.80² [24-18] mm [AWG]Brass MaterialSearch Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Cabled Power, pcb connectors, discrete wire, crimp, Power Economy, Molex Mini-Fit Jr, VAL-U-LOK, 4.2mm, PE, PE Series Connector System, .165 Centerline PE, Valulok, PWRSIGALLP CONTACT, PIN, 24-18 AWG, CRIMP Contact,Pin,VAL-U-LOK,WiretoWire,18-24AWG,600VAC,9A Crimp pin Male 22...18 AWG, 1586314-1, TE Connectivity TE Connectivity VAL-U-LOK 系列 公 压接接线端子, 压接, 镀锡触点 VAL-U-LOK PIN BR TN 24-18 LP |
| 分类 |
商业参数
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
电气参数
| 额定电压 | 600 V | 接触电阻 | 10mΩ |
| 最大额定电流 | 9 A | ||
机械参数
| 重量 | 0.013 | 镀层 | Pre-Tin |
| 材料（通用） | Brass | 包装方式 | Bulk |
| 导线线规 | 18-22 AWG | 端接方式 | Crimp |
| 触头类型 | Signal | 插针或插孔 | Pin |
| 连接器类型 | Connector Headers and PCB Receptacles | 接触镀层 | Pre-Tin |
| 材料表面处理 | :- | 触头材料 | Brass |
| 包装数量 | Loose Piece | 端接样式 | Crimp |
| 第一触头极性 | Pin (Male) | 接触件端接 | Crimp |
| 绝缘直径 | 1.50 â 2.40 [0.059 â 0.094] | 线规或范围 - AWG | 22-18 |
| 线规或范围 - mm² | 0.30-0.90² [22-18] | ||
产品信息
| 连接器性别 | PIN | 系列 | PE |
| CAD图纸 | 3D CAD Model | 产品子类型 | Contact |
| 适用产品/相关产品 | :VAL-U-LOK Series Connector System | ||
环境参数
| 工作温度 | 105°C | ||
