点击放大查看

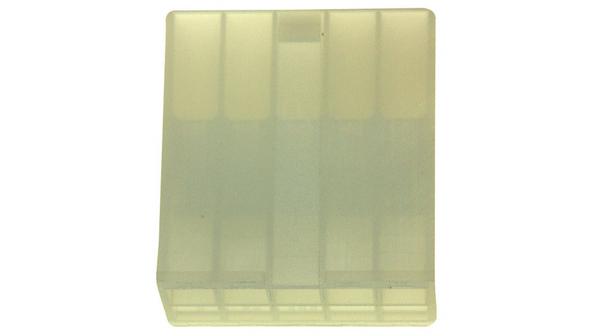

1-1586000-0
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing PL 10 POS 4.2mm Crimp ST VAL-U-LOK Series Connector System CONN PLUG 10POS FREE HANGING Pin & Socket Connectors FREE HANGING PLUG 10 Conn Housing PL 10 POS 4.2mm Crimp ST Search Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Cabled Power, pcb connectors, discrete wire, crimp, Power Economy, Molex Mini-Fit Jr, VAL-U-LOK, 4.2mm, PE, PE Series Connector System, .165 Centerline PE, Valulok, PWRSIGALLP PLUG, FREE-HANGING, 10WAY Connector,SoftShell;Nylon;Natural;Wire-to-WireandWire-to-Board;10 Male crimp housing Pitch4.2 mm Poles 2 x 5 VAL-U-LOK, 1-1586000-0, TE Connectivity 10P FH PLUG VAL-U-LOK V2 |
| 分类 |
商业参数
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 500 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 标准 | RoHSandELVCompliant,ULListedandCSACertified |
| 海关税号 | 85369010 | 无铅定义 | Not relevant for lead free process |
| 认证机构 | :CSA, UL | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-2 | ||
电气参数
| 额定电压 | 600 V | 最大额定电流 | 9 A |
机械参数
| 颜色 | Natural | 间距 | 4.2 mm |
| 重量 | 0.0279 | 材料（通用） | Nylon |
| 包装方式 | Bulk | 排间距 | 0.165" (4.20mm) |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 外壳颜色 | Natural | 安装类型 | Straight |
| 行程角度 | Straight | 连接器类型 | Plug |
| 接触镀层 | Tin/Gold | 紧固类型 | Locking Ramp |
| 安装样式 | Free Hanging | 排数 | 2 |
| 材料表面处理 | :- | 触头材料 | Brass/PhosphorBronze |
| 壳体材料 | Nylon | 总长度 | 22.2mm |
| 主要材料 | WiretoWire&WiretoBoard | 插针孔直径 | 0.17" |
| 端接样式 | Crimp | 第一触头极性 | Pin (Male) |
| 连接器颜色 | :White | 触点数 | 10 |
| 接触件端接 | Crimp | 位数 | 10 |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | PL | 系列 | PE |
| 制造商全称 | VAL-U-LOKSeries | 产品子类型 | Housing |
| 电路数 | 10 | 适用产品/相关产品 | :PE Series Connector System |
