点击放大查看

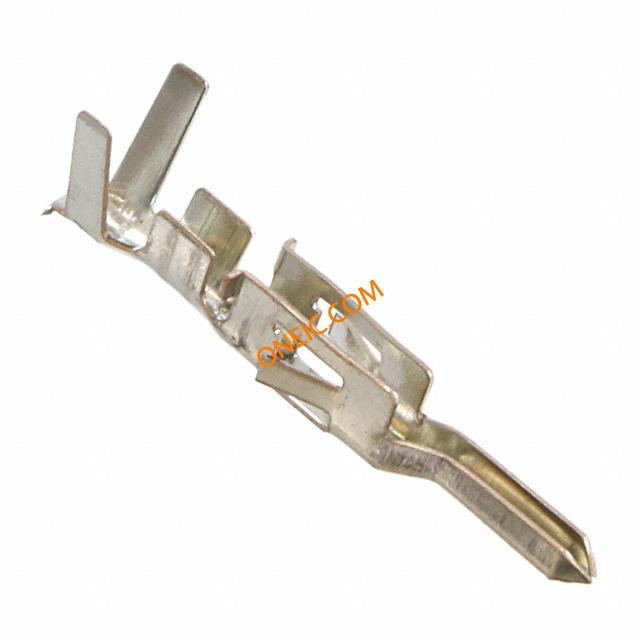

794955-3
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact PIN Crimp ST Cable Mount Strip VAL-U-LOK Series Connector System CONN PIN 18-22AWG PHOS BRZ TIN Contact male 0.2-0.8mm² Val-u-Lok Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactPinWire Range = 0.20-0.80² [24-18] mm [AWG]Phosphor Bronze MaterialSearch Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Cabled Power, pcb connectors, discrete wire, crimp, Power Economy, Molex Mini-Fit Jr, VAL-U-LOK, 4.2mm, PE, PE Series Connector System, .165 Centerline PE, Valulok, PWRSIGALLP CONTACT, PIN, 24-18AWG, CRIMP CONTACT,PIN,VAL-U-LOK,24-18AWG,TINPLATING TE Connectivity VAL-U-LOK 系列 公 压接接线端子, 压接, 镀锡触点 VAL-U-LOK PIN PHBZ SN 22-18AWG |
| 分类 |
商业参数
| 其他名称 | A111633CT | 标准包装数量 | Tape & Reel |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
电气参数
| 接触电阻 | 4.5mΩ | ||
机械参数
| 重量 | 0.0001 | 镀层 | Pre-Tin |
| 材料（通用） | Phosphor Bronze | 包装方式 | Tape & Reel (TR) |
| 导线线规 | 18-22 AWG | 端接方式 | Crimp |
| 触头类型 | Signal | 插针或插孔 | Pin |
| 连接器类型 | Connector Power | 接触镀层 | Pre-Tin |
| 触头材料 | Phosphor Bronze | 包装数量 | Strip |
| 第一触头极性 | :Pin | 接触件端接 | Crimp |
| 绝缘直径 | 1.50 â 2.40 [0.059 â 0.094] | 线规或范围 - AWG | :22AWG |
| 线规或范围 - mm² | 0.30-0.90² [22-18] | ||
产品信息
| 连接器性别 | PIN | 系列 | MATE-N-LOK 2 |
| 产品子类型 | Contact | 适用产品/相关产品 | PCB Connector |
环境参数
| 工作温度 | +105°C | ||
