点击放大查看

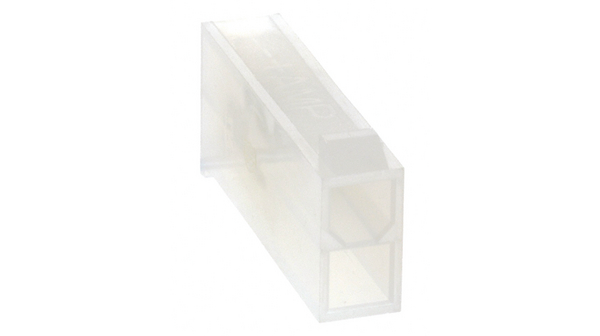

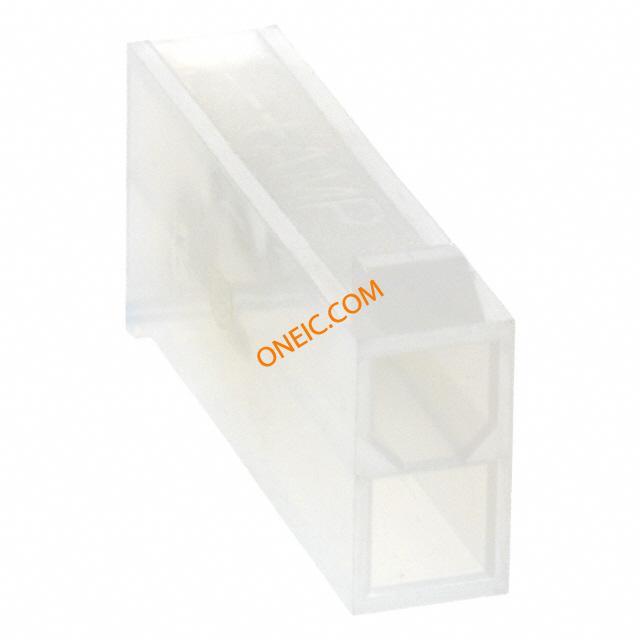

1586000-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing PL 2 POS 4.2mm Crimp ST VAL-U-LOK Series Connector System CONN PLUG 2POS FREE HANGING Housing FH 2 way Rec 4.20mm Val-u-Lok Pin & Socket Connectors FREE HANGING PLUG 2P Conn Housing PL 2 POS Crimp ST Conn Housing PL 2 POS Crimp ST Product Highlights:HousingPlugNumber of Circuits = 2UL 94V-2Number of Rows = DualSearch Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Cabled Power, pcb connectors, discrete wire, crimp, Power Economy, Molex Mini-Fit Jr, VAL-U-LOK, 4.2mm, PE, PE Series Connector System, .165 Centerline PE, Valulok, PWRSIGALLP PLUG, FREE-HANGING, 2WAY Connector,SoftShell;Nylon;Natural;Wire-to-WireandWire-to-Board;2 Male crimp housing Pitch4.2 mm Poles 2 x 1 VAL-U-LOK, 1586000-2, TE Connectivity TE Connectivity VAL-U-LOK 系列 2 行 4.2mm 节距 2 路 直 公 压接连接器外壳 2P FH PLUG VAL-U-LOK V2 |
| 分类 |
商业参数
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 500 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | 认证机构 | :CSA, UL |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-2 |
电气参数
| 额定电压 | 600 V | 最大额定电流 | 9 A |
| 最小供电电压 | 600VAC | ||
机械参数
| 颜色 | Natural | 深度 | 23.8mm |
| 间距 | 4.2 mm | 宽度 | 11.6mm |
| 高度 | 11.6 mm | 长度 | 5.4mm |
| 重量 | 0.08 | 材料（通用） | Nylon |
| 包装方式 | Bulk | 排间距 | 0.165" (4.20mm) |
| 触头类型 | Male Pin | 外壳颜色 | Natural |
| 安装类型 | Straight | 连接器类型 | Plug |
| 紧固类型 | Locking Ramp | 安装样式 | Free Hanging |
| 排数 | 2 | 材料表面处理 | :- |
| 壳体材料 | Nylon | 总长度 | 5.4 mm |
| 端接样式 | Crimp | 第一触头极性 | Pin (Male) |
| 连接器颜色 | :White | 触点数 | 2 |
| 接触件端接 | Crimp | 位数 | 2 |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | PL | 系列 | PE |
| CAD图纸 | 3D CAD Model | 产品子类型 | Housing |
| 电路数 | 2 | 适用产品/相关产品 | Wire-to-Board Connector, Wire-to-Panel Connector, Wire-to-Wire Connector |
文档与媒体
相关型号
1586314-3
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece VAL-U-LOK Series Connector System CONN TERM PIN 18-22AWG TIN Pin & Socket Connectors PIN 22-18 BULK 1586314-3 Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactPinWire Range = 0.30-0.90² [22-18] mm [AWG]Search Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Cabled Power, pcb connectors, discrete wire, crimp, Power Economy, Molex Mini-Fit Jr, VAL-U-LOK, 4.2mm, PE, PE Series Connector System, .165 Centerline PE, Valulok, PWRSIGALLP CONTACT, PIN, 24-18AWG, CRIMP CONTACT,PIN,VAL-U-LOK,24-18AWG,TINPLATING
1586314-1
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece VAL-U-LOK Series Connector System CONN TERM PIN 18-22AWG TIN 4.2 PE series 22-18 awg contact pin Pin & Socket Connectors 4.2MM PIN 22-18AWG BRASS-TIN Conn Contact PIN 1 POS Crimp ST Cable Mount Loose Piece Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactPinWire Range = 0.20-0.80² [24-18] mm [AWG]Brass MaterialSearch Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Cabled Power, pcb connectors, discrete wire, crimp, Power Economy, Molex Mini-Fit Jr, VAL-U-LOK, 4.2mm, PE, PE Series Connector System, .165 Centerline PE, Valulok, PWRSIGALLP CONTACT, PIN, 24-18 AWG, CRIMP Contact,Pin,VAL-U-LOK,WiretoWire,18-24AWG,600VAC,9A Crimp pin Male 22...18 AWG, 1586314-1, TE Connectivity TE Connectivity VAL-U-LOK 系列 公 压接接线端子, 压接, 镀锡触点 VAL-U-LOK PIN BR TN 24-18 LP

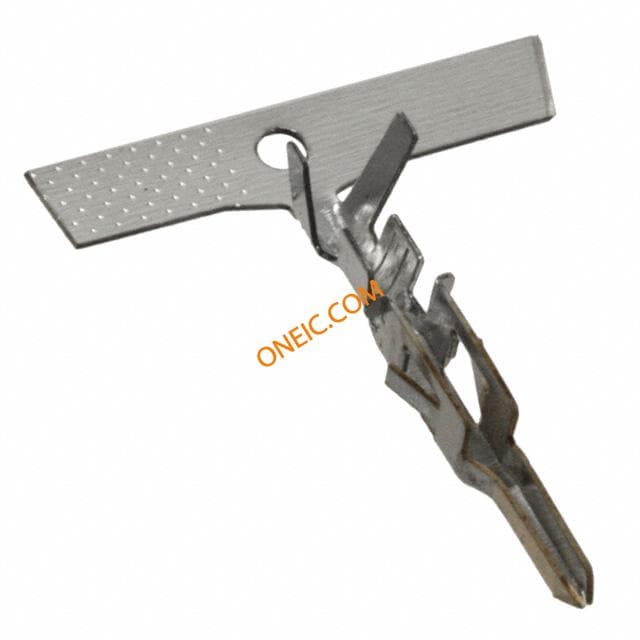

794955-2
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip VAL-U-LOK Series Connector System CONN PIN 18-22AWG BRASS GOLD 794955-2 Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactPinWire Range = 0.20-0.80² [24-18] mm [AWG]Brass MaterialSearch Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Cabled Power, pcb connectors, discrete wire, crimp, Power Economy, Molex Mini-Fit Jr, VAL-U-LOK, 4.2mm, PE, PE Series Connector System, .165 Centerline PE, Valulok, PWRSIGALLP CONTACT, PIN, 24-18AWG, CRIMP CONTACT,PIN,VAL-U-LOK,24-18AWG,GOLDPLATING VAL-U-LOK Series 18-24 AWG Insulation Crimp Strain Relief Pin Contact VAL-U-LOK PIN BR AU 22-18AWG
794957-2
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip VAL-U-LOK Series Connector System CONN PIN 22-26AWG BRASS GOLD Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactPinWire Range = 0.12-0.40² [26-22] mm [AWG]Brass MaterialSearch Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Cabled Power, pcb connectors, discrete wire, crimp, Power Economy, Molex Mini-Fit Jr, VAL-U-LOK, 4.2mm, PE, PE Series Connector System, .165 Centerline PE, Valulok, PWRSIGALLP CONTACT,PIN,VAL-U-LOK,26-22AWG,GOLDPLATING VAL-U-LOK PIN BR AU 22-26AWG

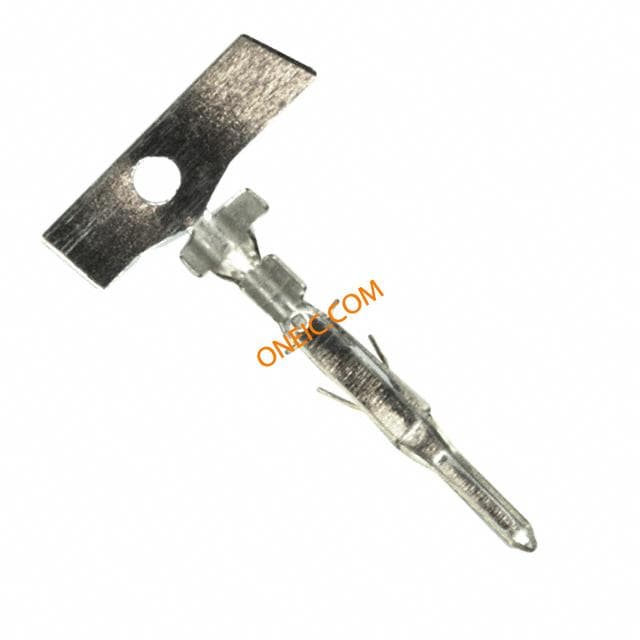

794955-1
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip VAL-U-LOK Series Connector System CONN PIN 18-22AWG BRASS TIN Crimp pin contact 22-18 awg tin Pin & Socket Connectors PIN CONTACT 22-18AWG Reel of 3500 Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactPinWire Range = 0.30-0.90² [22-18] mm [AWG]Search Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Cabled Power, pcb connectors, discrete wire, crimp, Power Economy, Molex Mini-Fit Jr, VAL-U-LOK, 4.2mm, PE, PE Series Connector System, .165 Centerline PE, Valulok, PWRSIGALLP CONTACT, PIN, 24-18AWG, CRIMP CONTACT, CRIMP, PLUG, 24-18AWG Contact,Pin,VAL-U-LOK,WiretoWire,18-24AWG,600VAC,9A Contact; male; 0.2÷0.8mm2; VAL-U-LOK; crimped; 4.2mm TE Connectivity VAL-U-LOK 系列 公 压接接线端子, 压接, 镀锡触点 VAL-U-LOK PIN BR SN 22-18AWG
1586019-2
te connectivity / amp
Conn Housing RCP 2 POS Crimp ST Cable Mount VAL-U-LOK Series Connector System CONN RCPT HOUSING 2POS 4.2MM Housing FH 2 way Rec 4.20mm Val-u-Lok Pin & Socket Connectors HSG REC 2X01C F/P V0 Conn Housing RCP 2 POS Crimp ST Cable Mount Product Highlights:HousingReceptacleNumber of Circuits = 2UL 94V-0Number of Rows = DualSearch Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Cabled Power, pcb connectors, discrete wire, crimp, Power Economy, Molex Mini-Fit Jr, VAL-U-LOK, 4.2mm, PE, PE Series Connector System, .165 Centerline PE, Valulok, PWRSIGALLP HOUSING, RECEPTACLE, CRIMP, 4.2MM, 2WAY RECEPTACLE,HOUSING,VAL-U-LOK,2POS,DUALROW,UL94V-0 2P RCPT VAL-U-LOK V0
794954-2
te connectivity / amp
Conn Housing RCP 2 POS 4.2mm Crimp ST VAL-U-LOK Series Connector System CONN RECEPT 2POS FREE HANGING 2 way receptacle 4.20mm Val-u-Lok Pin & Socket Connectors RECEPTACLE HSG 2P Conn Housing RCP 2 POS Crimp ST Conn Housing RCP 2 POS Crimp ST Product Highlights:HousingReceptacleNumber of Circuits = 2UL 94V-2Number of Rows = DualSearch Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Cabled Power, pcb connectors, discrete wire, crimp, Power Economy, Molex Mini-Fit Jr, VAL-U-LOK, 4.2mm, PE, PE Series Connector System, .165 Centerline PE, Valulok, PWRSIGALLP RECEPTACLE HOUSING, 94V-2, 2WAY Connector;Nylon;Natural;SoftShell;FreeHanging;AMPBrand/PESeries Plug; wire-board; female; PIN:2; w/o terminals; 4.2mm; for cable Female crimp housing Pitch4.2 mm Poles 2 x 1 VAL-U-LOK, 794954-2, TE Connectivity TE Connectivity VAL-U-LOK 系列 2 行 4.2mm 节距 2 路 直 母 压接连接器外壳 2P RCPT VAL-U-LOK V2

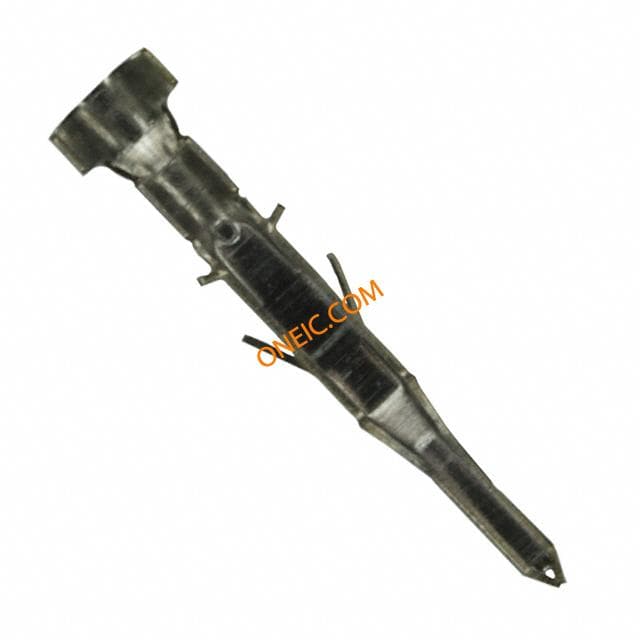

794957-1
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip VAL-U-LOK Series Connector System CONN PIN 26-22AWG BRASS TIN Pin & Socket Connectors PIN 26-22 AWG BR SN Reel of 5000 Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactPinWire Range = 0.12-0.40² [26-22] mm [AWG]Brass MaterialSearch Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Cabled Power, pcb connectors, discrete wire, crimp, Power Economy, Molex Mini-Fit Jr, VAL-U-LOK, 4.2mm, PE, PE Series Connector System, .165 Centerline PE, Valulok, PWRSIGALLP CONTACT, PIN, 26-22AWG, CRIMP Contact,Pin,VAL-U-LOK,22-26AWG,Brass VAL-U-LOK PIN BR SN 22-26AWG

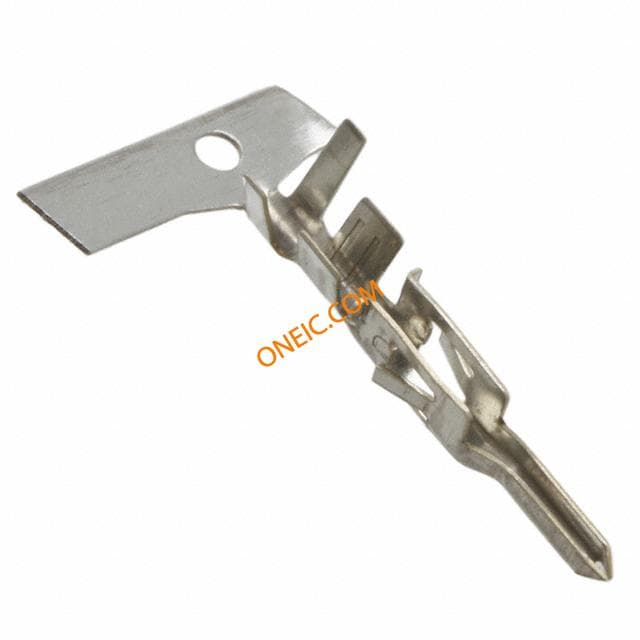

1586054-1
te connectivity / amp
Contact PIN Crimp ST Cable Mount CONN PIN 16AWG BRASS TIN Pin & Socket Connectors VAL-U-LOK PIN BR SN 1586054-1 Contact PIN Crimp ST Cable Mount Search Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Cabled Power, pcb connectors, discrete wire, crimp, Power Economy, Molex Mini-Fit Jr, VAL-U-LOK, 4.2mm, PE, PE Series Connector System, .165 Centerline PE, Valulok, PWRSIGALLP CONTACT, PIN, 16AWG, CRIMP CONTACT,PIN,VAL-U-LOK,16AWG,TINPLATING 16 AWG Pin Crimp VAL-U-LOK Connector Contact VAL-U-LOK PIN BR SN 16AWG
794957-3
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip VAL-U-LOK Series Connector System CONN PIN 22-26AWG PHOS BRZ TIN Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactPinWire Range = 0.12-0.40² [26-22] mm [AWG]Phosphor Bronze MaterialSearch Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Cabled Power, pcb connectors, discrete wire, crimp, Power Economy, Molex Mini-Fit Jr, VAL-U-LOK, 4.2mm, PE, PE Series Connector System, .165 Centerline PE, Valulok, PWRSIGALLP CONTACT, PIN, 26-22AWG, CRIMP CONTACT,PIN,VAL-U-LOK,26-22AWG,TINPLATING VAL-U-LOK PIN PHBR SN 22-26AWG
1586316-1
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece VAL-U-LOK Series Connector System CONN TERM PIN 22-26AWG TIN 4.2 PE series 26-22 awg contact pin Pin & Socket Connectors PIN 26-22 BULK Contact PIN Crimp ST Cable Mount Loose Piece Search Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Cabled Power, pcb connectors, discrete wire, crimp, Power Economy, Molex Mini-Fit Jr, VAL-U-LOK, 4.2mm, PE, PE Series Connector System, .165 Centerline PE, Valulok, PWRSIGALLP CONTACT PIN, 26-22AWG 4.2MMPIN,BR-TIN26-22AWG Crimp pin Male 26...22 AWG, 1586316-1, TE Connectivity TE Connectivity VAL-U-LOK 系列 公 压接接线端子, 压接, 镀锡触点 VAL-U-LOK PIN BR SN 26-22 LP
1586316-2
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece VAL-U-LOK Series Connector System CONN TERM PIN 22-26AWG 30GOLD Pin & Socket Connectors PIN 26-22 BULK VAL-U-LOK PIN BR AU 26-22 LP VAL-U-LOK PIN BR AU 26-22 LP Search Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Cabled Power, pcb connectors, discrete wire, crimp, Power Economy, Molex Mini-Fit Jr, VAL-U-LOK, 4.2mm, PE, PE Series Connector System, .165 Centerline PE, Valulok, PWRSIGALLP CONTACT,PIN,VAL-U-LOK,26-22AWG,GOLDPLATING
1586314-2
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece VAL-U-LOK Series Connector System CONN TERM PIN 18-22AWG 30GOLD Pin & Socket Connectors PIN 22-18 BULK Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactPinWire Range = 0.30-0.90² [22-18] mm [AWG]Search Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Cabled Power, pcb connectors, discrete wire, crimp, Power Economy, Molex Mini-Fit Jr, VAL-U-LOK, 4.2mm, PE, PE Series Connector System, .165 Centerline PE, Valulok, PWRSIGALLP CONTACT,PIN,VAL-U-LOK,24-18AWG,GOLDPLATING VAL-U-LOK PIN BR AU 24-18 LP
1586314-4
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece VAL-U-LOK Series Connector System CONN TERM PIN 18-22AWG 30GOLD Pin & Socket Connectors PIN 22-18 AWG PHS BRZ-GOLD Conn Contact PIN 1 POS Crimp ST Cable Mount Loose Piece Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactPinWire Range = 0.20-0.80² [24-18] mm [AWG]Phosphor Bronze MaterialSearch Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Cabled Power, pcb connectors, discrete wire, crimp, Power Economy, Molex Mini-Fit Jr, VAL-U-LOK, 4.2mm, PE, PE Series Connector System, .165 Centerline PE, Valulok, PWRSIGALLP CONTACT,PIN,VAL-U-LOK,24-18AWG,GOLDPLATING VAL-U-LOK PIN PHBZ AU 24-18 LP
1586316-3
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece VAL-U-LOK Series Connector System CONN TERM PIN 22-26AWG TIN Pin & Socket Connectors PIN 26-22 BULK 1586316-3 Contact PIN Crimp ST Cable Mount Loose Piece Search Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Cabled Power, pcb connectors, discrete wire, crimp, Power Economy, Molex Mini-Fit Jr, VAL-U-LOK, 4.2mm, PE, PE Series Connector System, .165 Centerline PE, Valulok, PWRSIGALLP CONTACT,PIN,VAL-U-LOK,26-22AWG,TINPLATING 26-22 AWG Pin Crimp VAL-U-LOK Series Connector System VAL-U-LOK PIN PHBZ SN 26-22 LP
1586316-4
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece VAL-U-LOK Series Connector System CONN TERM PIN 22-26AWG 30GOLD Pin & Socket Connectors PIN 26-22 BULK 1586316-4 Contact PIN Crimp ST Cable Mount Loose Piece Search Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Cabled Power, pcb connectors, discrete wire, crimp, Power Economy, Molex Mini-Fit Jr, VAL-U-LOK, 4.2mm, PE, PE Series Connector System, .165 Centerline PE, Valulok, PWRSIGALLP CONTACT,PIN,VAL-U-LOK,26-22AWG,GOLDPLATING VAL-U-LOK PIN PHBZ AU 26-22 LP

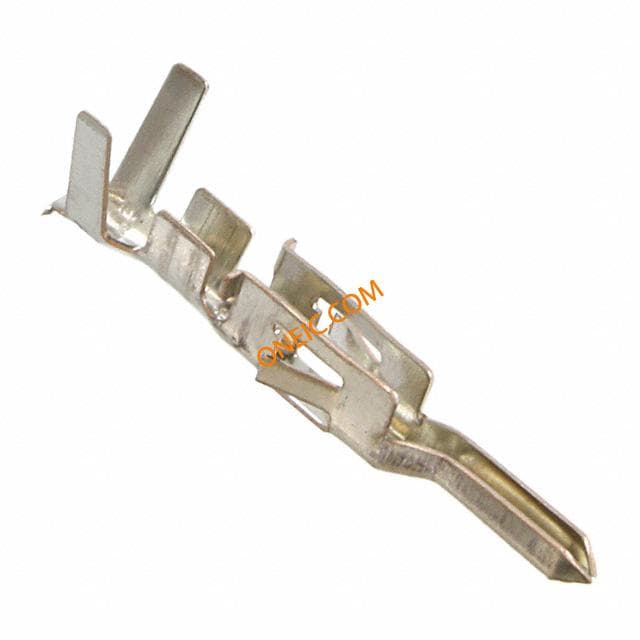

794955-3
