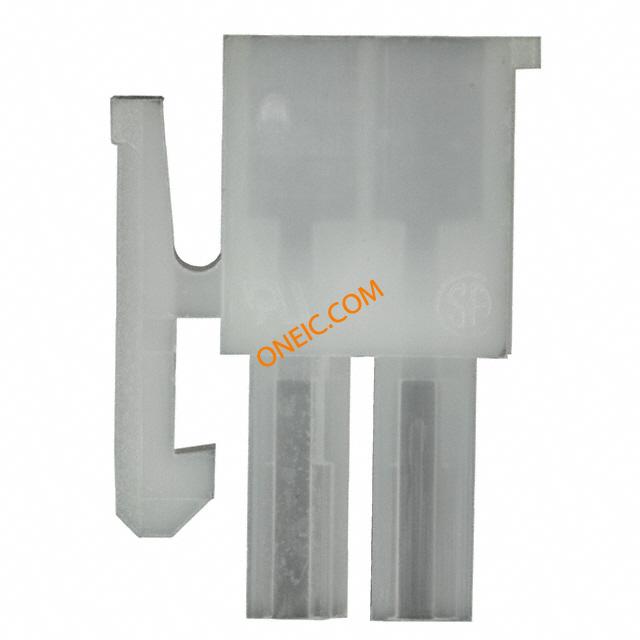

794954-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 2 POS 4.2mm Crimp ST VAL-U-LOK Series Connector System CONN RECEPT 2POS FREE HANGING 2 way receptacle 4.20mm Val-u-Lok Pin & Socket Connectors RECEPTACLE HSG 2P Conn Housing RCP 2 POS Crimp ST Conn Housing RCP 2 POS Crimp ST Product Highlights:HousingReceptacleNumber of Circuits = 2UL 94V-2Number of Rows = DualSearch Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Cabled Power, pcb connectors, discrete wire, crimp, Power Economy, Molex Mini-Fit Jr, VAL-U-LOK, 4.2mm, PE, PE Series Connector System, .165 Centerline PE, Valulok, PWRSIGALLP RECEPTACLE HOUSING, 94V-2, 2WAY Connector;Nylon;Natural;SoftShell;FreeHanging;AMPBrand/PESeries Plug; wire-board; female; PIN:2; w/o terminals; 4.2mm; for cable Female crimp housing Pitch4.2 mm Poles 2 x 1 VAL-U-LOK, 794954-2, TE Connectivity TE Connectivity VAL-U-LOK 系列 2 行 4.2mm 节距 2 路 直 母 压接连接器外壳 2P RCPT VAL-U-LOK V2 |
| 分类 |
商业参数
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 500 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | 认证机构 | :CSA, UL |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-2 |
电气参数
| 额定电压 | 600 V | 最大额定电流 | 9 A |
| 最小供电电压 | 600VAC | 连接器类型 - 电压输入 | w/o terminals |
机械参数
| 颜色 | Natural | 深度 | 20mm |
| 间距 | 4.2 mm | 长度 | 5.8mm |
| 重量 | 0.0065 | 材料（通用） | Nylon |
| 包装方式 | Bulk | 排间距 | 0.165" (4.20mm) |
| 触头类型 | Female Socket | 柱间距 | 4.2mm |
| 外壳颜色 | Natural | 安装类型 | Straight |
| 连接器类型 | Receptacle | 紧固类型 | Latch Lock |
| 安装样式 | Free Hanging | 排数 | 2 |
| 材料表面处理 | :- | 壳体材料 | Nylon |
| 总长度 | 5.8 mm | 包装数量 | 1 |
| 连接器 - 电缆 | plug | 端接样式 | Crimp |
| 第一触头极性 | Socket (Female) | 连接器颜色 | :White |
| 触点数 | 2 | 接触件端接 | Crimp |
| 位数 | 2 | 第一连接器安装特征 | 2x1 |
产品信息
| SPG | 1 | 备注 | Contacts Not Provided |
| 类型 | Housing | 连接器性别 | RCP |
| 系列 | PE | CAD图纸 | 3D CAD Model |
| 产品子类型 | Housing | 适配器系列 | VAL-U-LOK |
| 单元数量 | 1 | 电路数 | 2 |
| 适用产品/相关产品 | Wire-to-Board Connector, Wire-to-Panel Connector, Wire-to-Wire Connector | ||
