点击放大查看

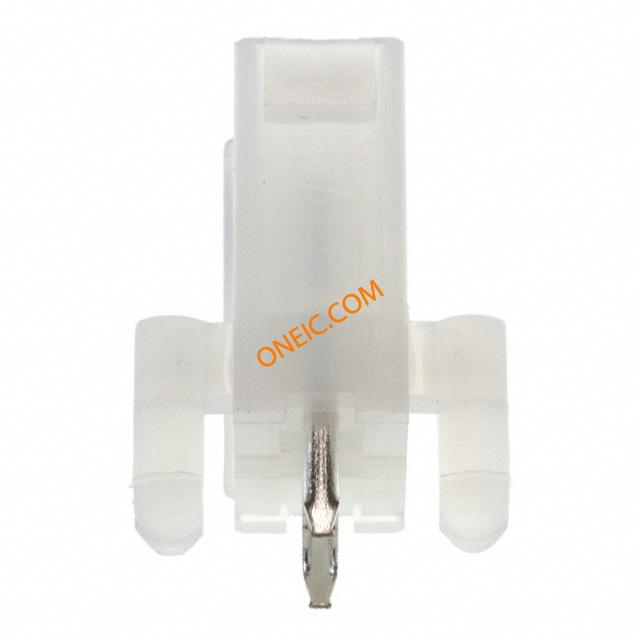

1586039-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Power HDR 2 POS 4.2mm Solder ST Thru-Hole 2 Terminal 1 Port VAL-U-LOK Series Connector System CONN HEADER 2POS VERT W/PEGS VAL-U-LOK Shrouded Pin Header 4.2 mm 2P Pin & Socket Connectors VERT HDR W/PEGS 2P Conn Power HDR 2 POS 4.2mm Solder ST Thru-Hole 2 Terminal 1 Port Product Highlights:Pin HeaderNumber of Circuits = 2UL 94V-2Number of Rows = DualVertical Mount AngleSearch Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Cabled Power, pcb connectors, discrete wire, crimp, Power Economy, Molex Mini-Fit Jr, VAL-U-LOK, 4.2mm, PE, PE Series Connector System, .165 Centerline PE, Valulok, PWRSIGALLP PLUG & SOCKET CONN, HEADER, 2POS, 4.2MM Connector;PinHeader;UL94V-2 2P VAL-U-LOK VRT HDR W/P V2 |
| 分类 |
商业参数
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Trays |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 标准 | DFE-230-5 |
| 海关税号 | 85369010 | 无铅定义 | Wave solder capable to 240°C |
| 认证机构 | CSA,UL | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-2 | ||
电气参数
| 额定电压 | 600 V | 最大额定电流 | 9A |
机械参数
| 间距 | 4.2 mm | 长度 | 0.21in |
| 重量 | 0 | 包装方式 | Bulk |
| 排间距 | 0.165" (4.20mm) | 端接方式 | Solder |
| 触头类型 | Male Pin | 引脚长度（针脚） | 0.14" |
| 安装类型 | Through Hole | 行程角度 | Straight |
| 连接器类型 | Header, Shrouded | 接触镀层 | Tin |
| 紧固类型 | Locking Ramp | 安装样式 | Through Hole |
| 排数 | Dual | 触头材料 | Brass |
| 壳体材料 | Nylon | 总长度 | 0.21" |
| 主要材料 | WiretoWire&WiretoBoard | 插针孔直径 | 0.165" |
| 第一触头极性 | Pin (Male) | 触点数 | 2 |
| 接触件端接 | :Through Hole Vertical | 位数 | 2 |
| 安装孔直径 | 0.055" | 第一连接器安装类型 | :PCB |
产品信息
| 类型 | Power | 连接器性别 | HDR |
| 系列 | PE | 产品特性 | Board Lock |
| 制造商全称 | PESeries | 产品子类型 | Pin Header |
| 电路数 | 2 | 加载位置数 | All |
相关型号
794657-2
te connectivity / amp
Conn Housing RCP 2 POS Crimp ST Cable Mount 4.2mm & 4.4mm Centerline, 600 V, 9 A max. Dual Action HOUSING RCPT 2POS POS LOCK Pin & Socket Connectors 02P RCPT HSG 94V-0 4.2mm (.165") Centerline, 600 V, 9 A max. Dual Action 4.2mm (.165") Centerline, 600 V, 9 A max. Dual Action Product Highlights:HousingAMP-DUACReceptacleNumber of Positions = 2UL 94V-0Search Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Lighting Interconnection, Cabled Power, discrete wire, crimp, pcb connectors, Molex Mini-Fit Jr, DUAC, DUAC UPC, DUAC PL, ATX power, power 02P RCPT HSG 94V-0
0039012020
molex
Conn Housing RCP 2 POS Crimp ST Bag CONN RECEPT 2POS DUAL
1586000-2
te connectivity / amp
Conn Housing PL 2 POS 4.2mm Crimp ST VAL-U-LOK Series Connector System CONN PLUG 2POS FREE HANGING Housing FH 2 way Rec 4.20mm Val-u-Lok Pin & Socket Connectors FREE HANGING PLUG 2P Conn Housing PL 2 POS Crimp ST Conn Housing PL 2 POS Crimp ST Product Highlights:HousingPlugNumber of Circuits = 2UL 94V-2Number of Rows = DualSearch Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Cabled Power, pcb connectors, discrete wire, crimp, Power Economy, Molex Mini-Fit Jr, VAL-U-LOK, 4.2mm, PE, PE Series Connector System, .165 Centerline PE, Valulok, PWRSIGALLP PLUG, FREE-HANGING, 2WAY Connector,SoftShell;Nylon;Natural;Wire-to-WireandWire-to-Board;2 Male crimp housing Pitch4.2 mm Poles 2 x 1 VAL-U-LOK, 1586000-2, TE Connectivity TE Connectivity VAL-U-LOK 系列 2 行 4.2mm 节距 2 路 直 公 压接连接器外壳 2P FH PLUG VAL-U-LOK V2
1586019-2
te connectivity / amp
Conn Housing RCP 2 POS Crimp ST Cable Mount VAL-U-LOK Series Connector System CONN RCPT HOUSING 2POS 4.2MM Housing FH 2 way Rec 4.20mm Val-u-Lok Pin & Socket Connectors HSG REC 2X01C F/P V0 Conn Housing RCP 2 POS Crimp ST Cable Mount Product Highlights:HousingReceptacleNumber of Circuits = 2UL 94V-0Number of Rows = DualSearch Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Cabled Power, pcb connectors, discrete wire, crimp, Power Economy, Molex Mini-Fit Jr, VAL-U-LOK, 4.2mm, PE, PE Series Connector System, .165 Centerline PE, Valulok, PWRSIGALLP HOUSING, RECEPTACLE, CRIMP, 4.2MM, 2WAY RECEPTACLE,HOUSING,VAL-U-LOK,2POS,DUALROW,UL94V-0 2P RCPT VAL-U-LOK V0

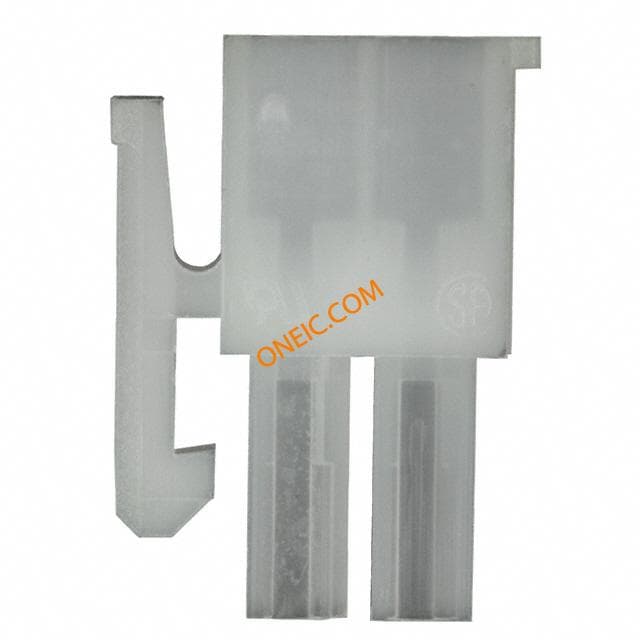

794954-2
