1375820-7
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 7 POS 2.54mm Crimp ST MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT HSNG 7POS CST-100 II CST-100 II Socket Housing 7P Headers & Wire Housings RCPT 7 POS CST-100 Conn Housing RCP 7 POS 2.54mm Crimp ST Product Highlights:CST-100 II HousingsNumber of Positions = 7Mating Type = ReceptacleWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP WIRE-BOARD CONNECTOR RECEPTACLE, 7POS, 2.54MM CST-100IIHOUSING7POS CST-100 II HOUSING 7 POS |
| 分类 |
商业参数
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366910 |
| 无铅定义 | Not relevant for lead free process | 认证机构 | CSA,UL |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 量程（°/s） | :TE - CST-100 II Series | 额定电压 | 250 V |
| 开关功能 | Latched | 最大额定电流 | 6.5 A |
| 最小供电电压 | 250VAC | ||
机械参数
| 颜色 | White | 深度 | 12.95 mm |
| 间距 | 2.54 mm | 高度 | 6.6 mm |
| 长度 | 0.72in | 重量 | 0.002 |
| 包装方式 | Bulk | 遮蔽类型 | No |
| 出线方向 | 180° | 导线线规 | 22-28 AWG |
| 触头类型 | Female Socket | 第二连接器 | With |
| 外壳颜色 | White | 安装类型 | Straight |
| 行程角度 | Straight | 连接器类型 | Crimp |
| 接触镀层 | 2.54 [0.100] | 紧固类型 | Locking Ramp |
| 安装样式 | Free Hanging | 排数 | 1 |
| 连接器用途 | Receptacle | 触头材料 | Phosphor Bronze |
| 壳体材料 | Polymer | 总长度 | 18.29 mm |
| 安装特性 | Without | 面板安装类型 | Without |
| 主要材料 | InterconnectSystem | 插针孔直径 | 0.1" |
| 端接样式 | Crimp | 第一触头极性 | Socket (Female) |
| 配接方向 | With | 触点数 | 7 |
| 接触件端接 | Crimp | 位数 | 7 |
产品信息
| 备注 | Not interchangeable with CST-100 contacts and housings.; Mates with all MTA-100 | 类型 | Housing |
| 连接器性别 | RCP | 系列 | CST-100 II |
| 制造商全称 | AMP | 产品子类型 | CST-100 II Housings |
| 应用细节 | Wire-to-Board | ||
环境参数
| 工作温度 | +105°C | ||
相关型号
641211-7
te connectivity / amp
Conn Unshrouded Header HDR 7 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 7POS STR .100 30GOLD Headers & Wire Housings 07P MTA100 HDR ASSY PL STR 30A 07P MTA100 HDR ASY PL STR 30A 07P MTA100 HDR ASY PL STR 30A Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP
3-641215-7
te connectivity / amp
Conn Wire to Board HDR 7 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 7POS .100 30AU Headers & Wire Housings FRICTION LCK HDR 7P Straight Post gold Conn Wire to Board HDR 7 POS 2.54mm Solder ST Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 7Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP WIRE-BOARD CONNECTOR HEADER 7POS, 2.54MM TE Connectivity MTA-100 系列 2.54mm节距 7路 (1排) 直 PCB 针座, 焊接端接, 5A , 通孔 07P MTA100 HDR ASSY FL/ST 30AU
3-644694-7
te connectivity / amp
Conn Unshrouded Header HDR 7 POS 2.54mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RTANG 7POS .100 TIN Headers & Wire Housings 7P R/A HDR RETENTIVE Conn Unshrouded Header HDR 7 POS 2.54mm Solder RA Thru-Hole Product Highlights:Connector7 PositionsConnector Type = Header - PinMTA-100 Product LineWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 07P MTA100 R/A HDR RETENTIVE
640454-7
te connectivity / amp
Conn Wire to Board HDR 7 POS 2.54mm Solder ST Thru-Hole Headers & Wire Housings POLARIZED HEADER 7P Straight Post tin MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 7POS .100 TIN Conn Wire to Board HDR 7 POS 2.54mm Solder ST Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 7Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP CONN, VERTI. PCB HEADER, 7 PIN HEADERASSEMBLY,MTA-100,POLARIZED,7POSITION,STRAIGHT 07P MTA100 HDR ASSY SQ STR POL
644875-7
te connectivity / amp
Conn Wire to Board HDR 7 POS 2.54mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 7POS R/A .100 TIN Headers & Wire Housings 07P MTA100 HDR ASSY F/L SP BND 07P MTA100 HDR ASSY F/L,SP BND 07P MTA100 HDR ASSY F/L,SP BND Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP
640453-7
te connectivity / amp
Conn Unshrouded Header HDR 7 POS 2.54mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RTANG 7POS .100 TIN Headers & Wire Housings FLAT HEADER 7P Right Angle Post tin Header;MTA-100;7;250VAC;Polyester;Tin;CopperAlloy;0.100in.;Tin;AMP 07P MTA100 HDR ASSY SQ R/A
640456-7
te connectivity / amp
Conn Wire to Board HDR 7 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 7POS .100 TIN TE Connectivity MTA-100 Series 2.54mm Pitch 7 Way 1 Row Straight PCB Header, Solder Termination, 5A Headers & Wire Housings FRICTION LCK HDR 7P Straight Post tin Conn Wire to Board HDR 7 POS 2.54mm Solder ST Thru-Hole Product Highlights:MTA-100 Connectors7 PositionMating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP HEADER, VERTICAL, 0.1", 7WAY Header,FrictionLock;MTA-100;7;250VAC;Polyester;Tin;CopperAlloy;Tin Connector: wire-board; MTA-100; socket; male; PIN:7; tinned; 2.54mm Pin header 7P, 640456-7, TE Connectivity TE Connectivity MTA-100 系列 2.54mm节距 7路 (1排) 直 PCB 针座, 焊接端接, 5A , 通孔 07P MTA100 HDR ASSY F/L SQ STR

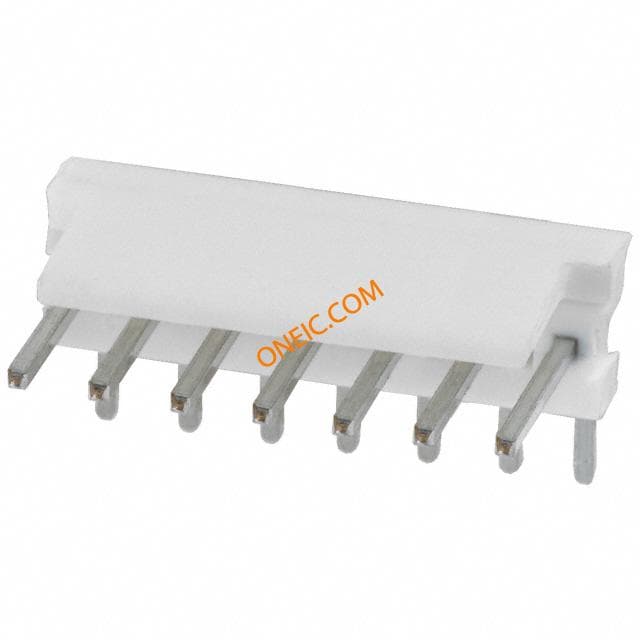

640457-7
