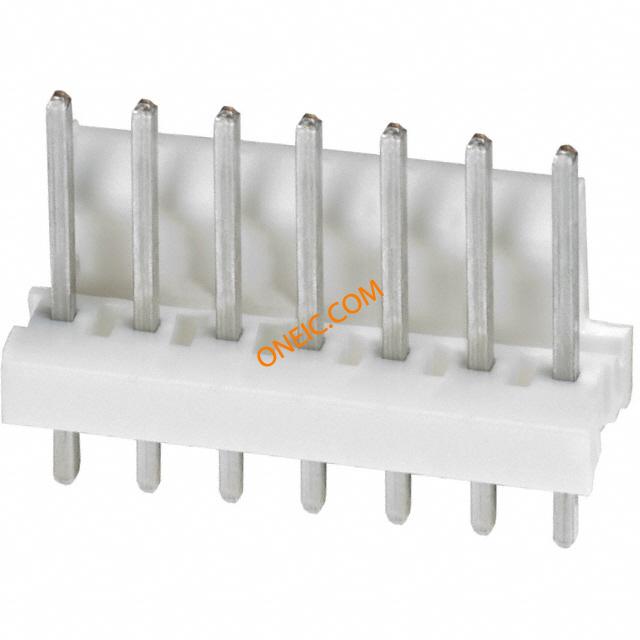

640454-7
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Wire to Board HDR 7 POS 2.54mm Solder ST Thru-Hole Headers & Wire Housings POLARIZED HEADER 7P Straight Post tin MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 7POS .100 TIN Conn Wire to Board HDR 7 POS 2.54mm Solder ST Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 7Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP CONN, VERTI. PCB HEADER, 7 PIN HEADERASSEMBLY,MTA-100,POLARIZED,7POSITION,STRAIGHT 07P MTA100 HDR ASSY SQ STR POL |
| 分类 |
商业参数
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 2000 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85411000 |
| 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94 V-0 | ||
电气参数
| 量程（°/s） | :TE - MTA-100 Series | 额定电压 | 250 V |
| 接触电阻 | 6 mohm | 额定交流电压 | 250 |
| 最大额定电流 | 5 A | 最小供电电压 | 250VAC |
机械参数
| 颜色 | Natural | 深度 | 5.72 mm |
| 间距 | 2.54 mm | 高度 | 10.03 mm |
| 重量 | 0.00068 | 包装方式 | Bulk |
| 遮蔽类型 | No | 端接方式 | Solder |
| 触头类型 | Male Pin | 引脚间距 | :2.54mm |
| 第二连接器 | Without | 触点形状 | Square |
| 外壳颜色 | White | 安装类型 | Vertical |
| 连接器类型 | Header, Unshrouded | 接触镀层 | Tin |
| 安装样式 | PCB | 排数 | 1 |
| 连接器用途 | Header | 触头材料 | Copper Alloy |
| 壳体材料 | Polyester | 总长度 | 17.78 mm |
| 安装特性 | Without | 面板安装类型 | Without |
| 主要材料 | InterconnectSystem | 尺寸/外形 | 0.64 [.025] |
| 端接样式 | Through Hole | 第一触头极性 | Pin (Male) |
| 配接方向 | With | 触点数 | 7 |
| 接触件端接 | :Through Hole Vertical | 位数 | 7 |
| 后壳中断功能 | Without | 典型触点布局 | 2.54 [0.100] |
| 接触长度 - 配合 | 0.295" (7.49mm) | 触点材料 - 柱 | Copper Alloy |
| 端子柱长度 | 3.56 [0.140] | 恢复后小径 | No |
产品信息
| 类型 | Wire to Board | 连接器性别 | HDR |
| 系列 | MTA-100 | 产品特性 | Polarizing Key |
| 制造商全称 | AMP | 产品子类型 | Headers - Unshrouded |
| 连接类型 | Printed Circuit Board | 应用细节 | Wire-to-Board |
| 加载位置数 | All | 跳过的位置数 | None |
环境参数
| 工作温度 | -55C to 105C | ||
