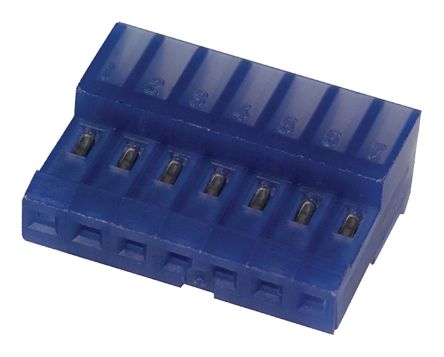

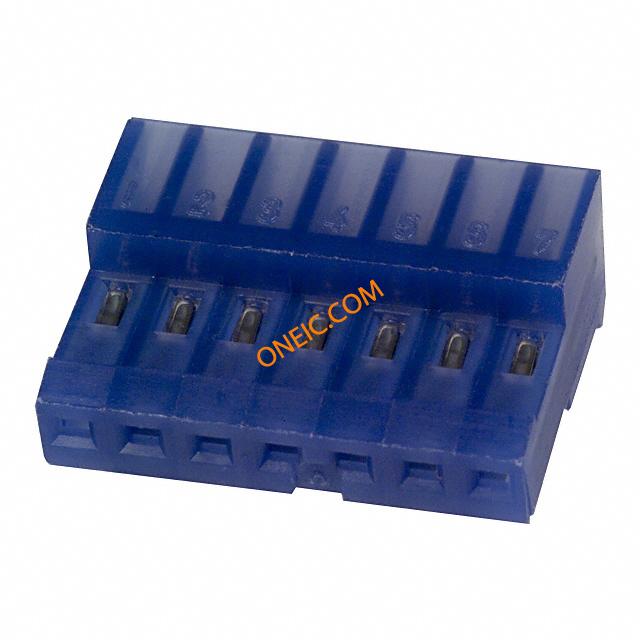

3-640442-7

点击放大查看

3-640442-7

制造商
TE Connectivity Ltd.
描述Conn IDC Connector F 7 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 7POS 26AWG MTA100 7 way MTA cable mount skt,2.54mm 26awg Headers & Wire Housings CLOSED W/O TABS 7P blue tin 26 AWG Conn IDC Connector F 7 POS 2.54mm IDT RA Cable Mount Loose Piece Product Highlights:MTA-100 ConnectorsNumber of Positions = 7Mating Type = ReceptacleConnector Type = Closed EndWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP CONNECTOR, RECEPTACLE, IDC, 26AWG, 7WAY 07PMTA100CONNASSYBLU TE Connectivity MTA-100 系列 7路 2.54mm节距 直角 母 IDC 连接器 , 电缆安装 07P MTA100 CONN ASSY BLU
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

产品类别Headers & Wire Housings标准包装数量Bulk
工厂包装数量1

合规参数

RoHSLead free / RoHS Compliant海关税号85369010
无铅定义Not relevant for lead free processRoHS/ELV合规状态RoHS compliant, ELV compliant
材料阻燃等级UL 94V-2

电气参数

量程（°/s）:TE - MTA-100 Series额定电压250 V ac
开关功能Ramp Lock额定交流电压250
最大额定电流5A

机械参数

颜色Blue间距2.54 mm
重量0.02包装方式Bulk
遮蔽类型No导线类型Discrete or Ribbon Cable
出线方向90°导线线规26 AWG
端接方式IDT触头类型Female Socket
第二连接器With外壳颜色Blue
安装类型Free Hanging (In-Line)连接器类型Closed End
接触镀层Tin Over Nickel紧固类型Locking Ramp
安装样式Wire排数1
连接器用途Receptacle触头材料Copper Alloy
壳体材料Nylon安装特性Without
包装数量Loose Piece面板安装类型Without
电缆端接方式IDC端接样式IDC
第一触头极性Socket (Female)配接方向Without
触点数7接触件端接:IDC
位数7典型触点布局2.54 [0.100]
接触镀层厚度80µin (2.03µm)恢复后小径No
线规或范围 - mm²0.12-0.15² [26]

产品信息

类型IDC Connector连接器性别F
系列MTA-100产品特性Closed End
制造商全称AMP产品子类型MTA-100 Connectors
连接类型Wire跳过的位置数None

环境参数

工作温度+105°C
