3-641214-7

点击放大查看

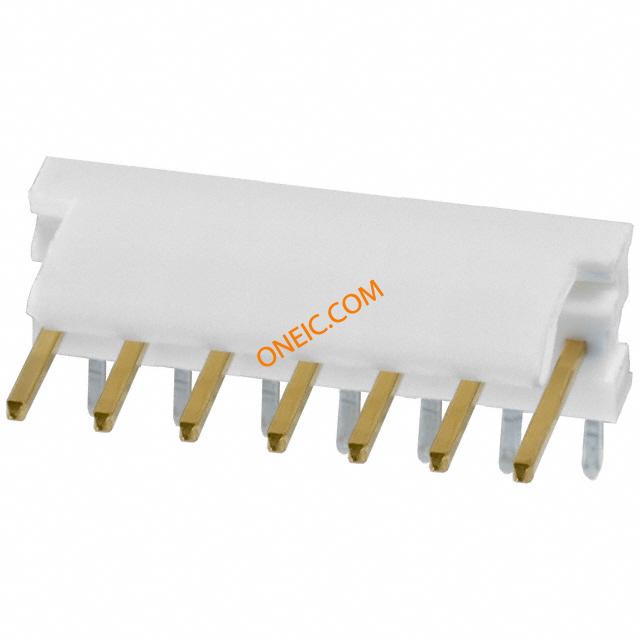

3-641214-7

制造商
TE Connectivity Ltd.
描述Conn Wire to Board HDR 7 POS 2.54mm Solder RA Thru-Hole Headers & Wire Housings 07P HDR ASSY PO/RA MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RT/A .100 7POS 30AU 07P MTA100 HDR ASSY PO/RA LF 07P MTA100 HDR ASSY PO/RA LF Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

标准包装规格1产品类别Headers & Wire Housings
标准包装数量Bulk

合规参数

RoHSRoHS CompliantUL等级获得认可
无铅定义Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder cUL档案号E28476
CSA档案号LR7189标准编号CSA, UL
CSA分类已认证RoHS/ELV合规状态RoHS compliant, ELV compliant
材料阻燃等级UL 94 V-0

电气参数

额定电压250 V供电电压250
额定交流电压250连接器阻抗焊接
最大额定电流5

机械参数

颜色Natural间距2.54 mm
高度7.75 mm [ .305 in ]长度17.78 mm [ .7 in ]
包装方式Bulk遮蔽类型No
壳体颜色自然引脚样式正方形
端接方式Solder触头类型Male Pin
第二连接器Without触点形状Square
外壳颜色White安装类型Right
连接器类型Header, Unshrouded接触镀层Gold Over Nickel
触点时序Without安装样式PCB
排数1外壳材料（壳体）极化
连接器用途Header插入件材料铜合金
触头材料Copper Alloy壳体材料Polyester
安装特性Without包装数量1
面板安装类型Without尺寸/外形0.64 [.025]
端接样式Through Hole第一触头极性Pin (Male)
配接方向With触点数7
端接表面处理不带位数7
执行器方向前部后壳中断功能Without
衬套/护套类型不带兼容外壳尺寸（如TM-700等）MTA .100 连接器组件
触头长度-柱3.56 mm [ .14 in ]安装孔直径不带
接触件表面处理 - 配合锡典型触点布局2.54 [0.100]
接触长度 - 配合0.295" (7.49mm)触点材料 - 柱Copper Alloy
端子柱长度3.56 [0.140]接触镀层厚度30µin (0.76µm)
恢复后小径No静电放电屏蔽不带
护套（绝缘）厚度1.27 µm, 50 µin

产品信息

类型Wire to Board连接器性别HDR
系列MTA-100产品特性Polarizing Key
可密封否制造商全称AMP
产品子类型Headers - Unshrouded连接类型Printed Circuit Board
应用细节Wire-to-Board加载位置数All
跳过的位置数None

环境参数

工作温度-55 – 105 °C [ -67 – 221 °F ]封装热阻1.6 mm [ .063 in ]

相关型号

643813-7

643813-7

te connectivity / amp

Conn IDC Connector F 7 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 7POS 22AWG MTA100 Headers & Wire Housings CLOSED WITH TABS 7P red tin 22 AWG Conn IDC Connector F 7 POS 2.54mm IDT RA Cable Mount Loose Piece Product Highlights:MTA-100 ConnectorsNumber of Positions = 7Mating Type = ReceptacleConnector Type = Closed EndWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP MTA-100CONNECTORTIN,07PMTA100CONNASSYPOLRIB 07P MTA100 CONN ASSY POL RIB
