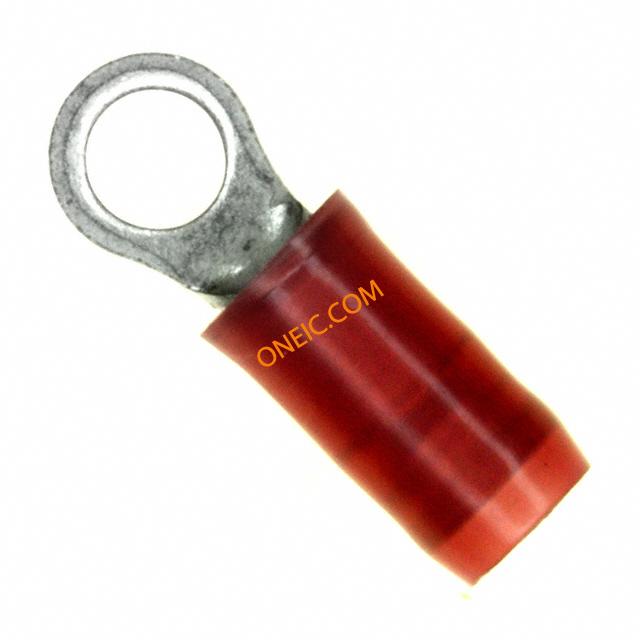

36149
| 制造商 | TE Connectivity Ltd. |

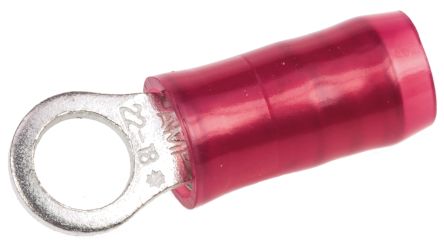

| 描述 | Ring Tongue Terminal 16-22AWG 17.07mm 5.54mm Tin Loose Piece Terminals PIDG RING 22-16 6 Ring and Spade Tongue Terminals CONN RING 16-22 AWG #6 PIDG RED Ring terminal,PIDG, red, AWG 22-16, M3.5 Ring Tongue Terminal 16-22AWG 17.07mm 5.54mm Tin Loose Piece Product Highlights:Terminal Shape = Ring TongueReceptacle Style = StraightBody Style = PIDGBarrel Type = Closed BarrelWire/Cable Type = Regular WireSearch Keywords:Pre-Insulated Diamond Grip, CERTI-SEAL, FASTON, terminals and splices, military/aerospace, PEEK PIDG, PEEK Terminals, AMPLI-BOND, AMPLIVAR, EURO-CRIMP, Duraseal, PIDG, PLASTI-GRIP, SolderGrip, SOLISTRAND, STRATO-THERM, TERMINYL, Standard B TERMINAL, RING, 22-16AWG AMP;TERMINAL;RINGTONGUE;AWG22-16;RED;STUDSIZE6 TE Connectivity PIDG 系列, 红色 绝缘 镀锡触芯 环形压接端子 , M3.5 螺栓 PIDG R 22-16 COMM 22-18 MIL 6 |
| 分类 |
商业参数
| 产品 | Ring Terminals | 零件号别名 | MS25036-101 |
| 产品类别 | Terminals | 标准包装数量 | Bulk |
| 工厂包装数量 | 1000 | ||
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85369010 | 抗辐射加固 | No |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 认证机构标志 | No | ||
电气参数
| 额定电压 | 300 VAC | 供电电压 | 300 |
机械参数
| 颜色 | Red | 深度 | 5.54 mm |
| 形状 | RING-041 | 表面处理 | Tin |
| 长度 | 17.07 mm | 重量 | 0.01 |
| 镀层 | Tin | 材料（通用） | Copper |
| 包装方式 | Bulk | 厚度 | 0.031" (0.79mm) |
| 电缆类型 | Regular Wire | 重型 | No |
| 绝缘类型 | Insulated | 螺钉尺寸 | 6 |
| 导线线规 | 16-22 AWG | 端接方式 | Crimp |
| 基体材料 | Copper | 触点形状 | Ring Tongue |
| 安装类型 | Free Hanging (In-Line) | 螺柱/焊片尺寸 | 3.68 mm |
| 端子类型 | Circular | 行程角度 | Straight |
| 连接器类型 | :Ring Tongue | 接触镀层 | Tin |
| 壳体镀层 | Tin | 连接器样式 | Straight |
| 总宽度 | 0.218" | 触头材料 | Copper |
| 绝缘颜色 | :Red | 总长度 | 17.07 [0.672] |
| 包装数量 | Loose Piece | 主要材料 | Ring |
| 绝缘高度 | Insulation Support | 连接器颜色 | Red |
| 接触件尾部长度 | 0.79 [0.031] | 绝缘直径 | 2.03-3.18 [.080-.125] |
| 绝缘材料 - 类型 | Nylon | 外缘宽度 | 0.218" (5.54mm) |
| 绝缘材料 - 材质 | Polyamide (PA), Nylon | 供应商器件封装 | PIDG |
| 线规或范围 - AWG | 509 â 3,260 | 线规或范围 - mm² | 0.30-1.40² [22-16] |
产品信息
| 类型 | Ring Tongue Terminal | 类别 | 1 & 2 |
| 连接器性别 | Female | 系列 | 361 |
| 产品特性 | Serrated Termination | 制造商全称 | AMP |
| 设备部件号 | MS25036-101 | ||
