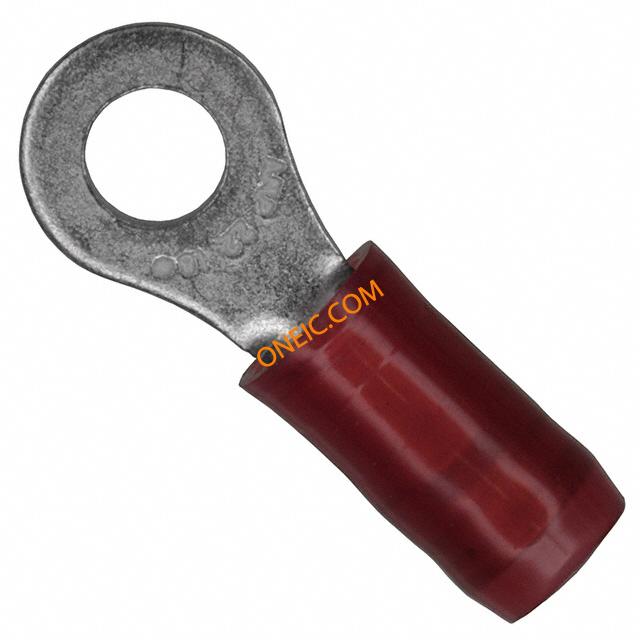

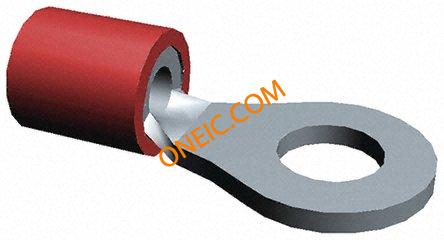

2-36151-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Ring Tongue Terminal 16-22AWG 20.24mm 7.14mm Tin Tape Mounted Terminals R 22-16 22-18 6 Ring and Spade Tongue Terminals CONN RING 16-22 AWG #6 RED PIDG Ring terminal,PIDG, red, AWG 22-16, M3.5 Ring Tongue Terminal 16-22AWG 20.24mm 7.14mm Tin Tape Mounted Product Highlights:Terminal Shape = Ring TongueReceptacle Style = StraightBody Style = PIDGBarrel Type = Closed BarrelWire/Cable Type = Regular WireSearch Keywords:Pre-Insulated Diamond Grip, CERTI-SEAL, FASTON, terminals and splices, military/aerospace, PEEK PIDG, PEEK Terminals, AMPLI-BOND, AMPLIVAR, EURO-CRIMP, Duraseal, PIDG, PLASTI-GRIP, SolderGrip, SOLISTRAND, STRATO-THERM, TERMINYL, Standard B TERMINAL, RING TONGUE, #6, CRIMP, RED PIDGNYLON&KD-TAPE,PIDGR22-16COMM22-18MIL6 22-16 AWG Insulation Support Straight Closed Barrel Ring Tongue Terminal TE Connectivity PIDG 系列, 红色 镀锡触芯 环形压接端子 , M3.5 螺栓, 3.68mm内环直径, 20.24mm总长 PIDG R 22-16 COMM 22-18MIL 6 |
| 分类 |
商业参数
| 产品 | Ring Terminals | 其他名称 | A27234CT |
| 零件号别名 | 31880 | 产品类别 | Terminals |
| 标准包装数量 | Tape & Reel | 工厂包装数量 | 5000 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| 抗辐射加固 | No | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 认证机构标志 | No |
电气参数
| 额定电压 | 300 VAC | 供电电压 | 300 |
机械参数
| 颜色 | Red | 深度 | 7.14 mm |
| 形状 | RING-041 | 表面处理 | Tin |
| 长度 | 20.24 mm | 重量 | 0 |
| 材料（通用） | Copper | 包装方式 | Reel |
| 厚度 | 0.031" (0.79mm) | 电缆类型 | Regular Wire |
| 重型 | No | 绝缘类型 | Insulated |
| 导线线规 | 16-22 AWG | 端接方式 | Crimp |
| 基体材料 | Copper | 触点形状 | Ring Tongue |
| 安装类型 | Free Hanging (In-Line) | 螺柱/焊片尺寸 | 3.5 mm |
| 端子类型 | Circular | 连接器类型 | :Ring Tongue |
| 接触镀层 | Tin | 壳体镀层 | Tin |
| 连接器样式 | Straight | 触头材料 | Copper |
| 绝缘颜色 | :Red | 总长度 | 20.24 [0.797] |
| 包装数量 | Tape Mounted | 绝缘高度 | Insulation Support |
| 连接器颜色 | Red | 接触件尾部长度 | 0.79 [0.031] |
| 绝缘直径 | 2.03-3.18 [.080-.125] | 绝缘材料 - 类型 | Nylon |
| 外缘宽度 | 0.281" (7.14mm) | 绝缘材料 - 材质 | Polyamide (PA), Nylon |
| 供应商器件封装 | PIDG | 线规或范围 - AWG | 509 â 3,260 |
| 线规或范围 - mm² | 0.30-1.40² [22-16] | ||
产品信息
| 类型 | Ring Tongue Terminal | 连接器性别 | Female |
| 系列 | 361 | 产品特性 | Serrated Termination |
| 制造商全称 | AMP | ||
