| 制造商 | TE Connectivity Ltd. |

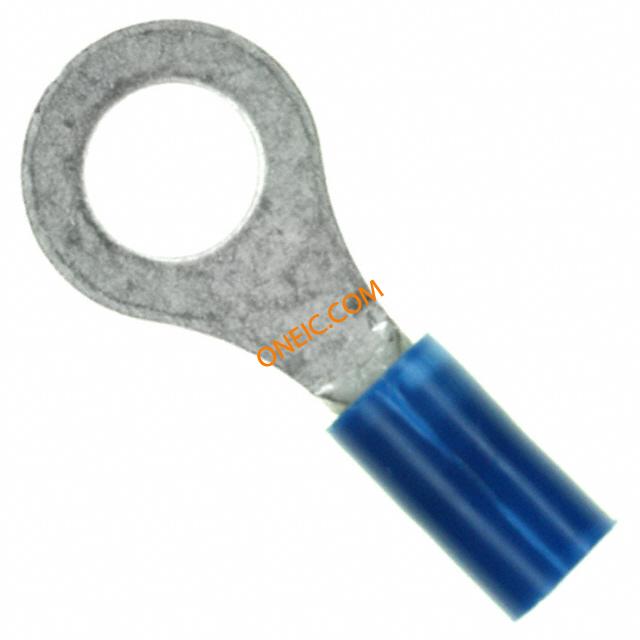

| 描述 | Ring Tongue Terminal 14-16AWG 27.69mm 11.91mm Tin Loose Piece Terminals RING TONGUE 16-14 SZ 1/4 Ring and Spade Tongue Terminals CONN RING 14-16 AWG #1/4 PL-GRP Ring Tongue Terminal 14-16AWG 27.69mm 11.91mm Tin Loose Piece Product Highlights:Terminal Shape = Ring TongueReceptacle Style = StraightBody Style = PLASTI-GRIPBarrel Type = Closed BarrelWire/Cable Type = Regular WireSearch Keywords:Pre-Insulated Diamond Grip, CERTI-SEAL, FASTON, terminals and splices, military/aerospace, PEEK PIDG, PEEK Terminals, AMPLI-BOND, AMPLIVAR, EURO-CRIMP, Duraseal, PIDG, PLASTI-GRIP, SolderGrip, SOLISTRAND, STRATO-THERM, TERMINYL, Standard B TERMINAL,PG R 16-14 1/4 |
| 分类 |
商业参数
| 产品 | Ring Terminals | 产品类别 | Terminals |
| 标准包装数量 | Bulk | 工厂包装数量 | 1000 |
合规参数
| RoHS | RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 认证机构标志 | No |
电气参数
| 最大电压 | 600 | 额定电压 | 600 VAC |
| 供电电压 | 600 | ||
机械参数
| 颜色 | Blue | 形状 | RING-043 |
| 表面处理 | Tin | 材料（通用） | Copper |
| 包装方式 | Bulk | 厚度 | 0.031" (0.79mm) |
| 电缆类型 | Regular Wire | 重型 | No |
| 绝缘类型 | Insulated | 螺钉尺寸 | M6 |
| 导线线规 | 14-16 AWG | 端接方式 | Crimp |
| 触点形状 | Ring Tongue | 安装类型 | Free Hanging (In-Line) |
| 螺柱/焊片尺寸 | 6 mm | 端子类型 | Circular |
| 电缆材料 | Solid or Stranded | 接触镀层 | Tin |
| 连接器样式 | Straight | 触头材料 | Copper |
| 绝缘颜色 | 蓝色 | 总长度 | 1.090" (27.69mm) |
| 包装数量 | Loose Piece | 绝缘高度 | Insulation Support |
| 端接样式 | Ring Tongue | 连接器颜色 | Blue |
| 材料厚度 | .79 mm [ .031 in ] | 接触件尾部长度 | 0.84 [0.033] |
| 绝缘直径 | 3.68 [.145] Max. | 绝缘材料 - 类型 | Vinyl |
| 位数 | 1 | 外缘宽度 | 0.469" (11.91mm) |
| 绝缘材料 - 材质 | Poly-Vinyl Chloride (PVC) | 舌片内部开口 | .84 mm [ .033 in ] |
| 螺纹/螺钉/孔尺寸 | 6.35 mm [ .25 in ] | 供应商器件封装 | PLASTI-GRIP |
| 支撑面板厚度 | Insulation Support | 线规或范围 - AWG | 2,050 â 5,180 |
| 线规或范围 - mm² | 1.25-2.00² [16-14] | 外径-未扩张 | 3.68 mm [ .145 in ] |
产品信息
| 类型 | Ring Tongue Terminal | 连接器性别 | Female |
| 产品特性 | Serrated Termination | 可密封 | 否 |
| 检查插槽 | 否 | 制造商全称 | AMP |
环境参数
| 工作温度 | 105 | ||
文档与媒体
相关型号
217202-1
te connectivity / amp
Terminals Tool Die Set Pneumatic Crimping Head Crimpers 626 T HD CRIMPER Hand Tools 626 T HD CRIMPER T-HEAD CRIMPER NORM CLOSED 626 T HD CRIMPER,NORM CLOSED
8-31894-1
te connectivity / amp
Ring Tongue Terminal 16-22AWG 27.38mm 11.91mm Tin Loose Piece Terminals NYL-RING 22-16 RED #1/4 Ring and Spade Tongue Terminals CONN RING 16-22AWG #1/4 RED PIDG Ring Tongue Terminal 16-22AWG 27.38mm 11.91mm Tin Loose Piece Product Highlights:Terminal Shape = Ring TongueReceptacle Style = StraightBody Style = PIDGBarrel Type = Closed BarrelWire/Cable Type = Regular WireSearch Keywords:Pre-Insulated Diamond Grip, CERTI-SEAL, FASTON, terminals and splices, military/aerospace, PEEK PIDG, PEEK Terminals, AMPLI-BOND, AMPLIVAR, EURO-CRIMP, Duraseal, PIDG, PLASTI-GRIP, SolderGrip, SOLISTRAND, STRATO-THERM, TERMINYL, Standard B TERMINAL, RING TONGUE, 1/4IN, CRIMP, RED SEE512-446931894 PIDG R 22-16 COMM 22-18MIL 1/4
8-34144-1
te connectivity / amp
Ring Tongue Terminal 16-22AWG 20.55mm 7.14mm Tin Box Terminals 22-16AWG RNG TERM Ring and Spade Tongue Terminals CONN RING 22-16AWG #6 P-G Ring Tongue Terminal 16-22AWG 20.55mm 7.14mm Tin Box Search Keywords:Pre-Insulated Diamond Grip, CERTI-SEAL, FASTON, terminals and splices, military/aerospace, PEEK PIDG, PEEK Terminals, AMPLI-BOND, AMPLIVAR, EURO-CRIMP, Duraseal, PIDG, PLASTI-GRIP, SolderGrip, SOLISTRAND, STRATO-THERM, TERMINYL, Standard B SEE512-442434144 PG 6 RING 22-16COMM 22-18MIL
59824-1
te connectivity / amp
Die Set For Connector/Terminal Tool Crimpers TETRA CRIMP TOOL TETRA-CRIMP HT ASSY TETRA-CRIMP crimp tool, PIDG, 22-10 AWG CRIMP TOOL, PIDG FASTON RECEPTACLES Crimper;Ratchet;22-10AWG;PIDG,PLASTI-GRIPSplice/Terminal;904139-1,662903-2Die TE Connectivity Tetra-Crimp 系列 手工压接工具 , 22 → 10 AWG 线规格, PIDG Splices/Terminals, Plasti-Grip Terminals
59827-1
te connectivity / amp
TETRA-CRIMP DIE 16-14 Punches & Dies TETRA-CRIMP DIE 16-1 TOOL TETRA-CRIMP DIE 16-14AWG
2-36151-2
te connectivity / amp
Ring Tongue Terminal 16-22AWG 20.24mm 7.14mm Tin Tape Mounted Terminals R 22-16 22-18 6 Ring and Spade Tongue Terminals CONN RING 16-22 AWG #6 RED PIDG Ring terminal,PIDG, red, AWG 22-16, M3.5 Ring Tongue Terminal 16-22AWG 20.24mm 7.14mm Tin Tape Mounted Product Highlights:Terminal Shape = Ring TongueReceptacle Style = StraightBody Style = PIDGBarrel Type = Closed BarrelWire/Cable Type = Regular WireSearch Keywords:Pre-Insulated Diamond Grip, CERTI-SEAL, FASTON, terminals and splices, military/aerospace, PEEK PIDG, PEEK Terminals, AMPLI-BOND, AMPLIVAR, EURO-CRIMP, Duraseal, PIDG, PLASTI-GRIP, SolderGrip, SOLISTRAND, STRATO-THERM, TERMINYL, Standard B TERMINAL, RING TONGUE, #6, CRIMP, RED PIDGNYLON&KD-TAPE,PIDGR22-16COMM22-18MIL6 22-16 AWG Insulation Support Straight Closed Barrel Ring Tongue Terminal TE Connectivity PIDG 系列, 红色 镀锡触芯 环形压接端子 , M3.5 螺栓, 3.68mm内环直径, 20.24mm总长 PIDG R 22-16 COMM 22-18MIL 6
58423-1
te connectivity / amp
DIE, RBY IS9252 Punches & Dies DIE SET INSUL. 22-10 DIESET SPLICE TERMINALS PRO-CRIMPER III PIDG PLASTI-GRIP die set Pro-Crimper Iii Hand Tool DIE, PIDG/PLASTIGRIP AMP;DIESETONLY;INSULATEDTERMINALS;22-10AWG Crimping dies, 58423-1, TE Connectivity TE Connectivity Pro-Crimper III 系列 压接工具模具 , 22 → 10 AWG 线规格
1-49935-0
te connectivity / amp
DA BAT TL HD 22-10 SOLIS Hand Tools DA BAT TL HD 22-10 SOLIS TOOL HEAD CRIMP 22-10AWG SOLIS
58433-3
te connectivity / amp
Hand Tool Assembly And Die Assembly Crimpers TOOL W/DIE INS TERM TOOL CRIMP INSUL TERM W/DIE SET PRO-CRIMPER III hand crimping tool Connector Accessories Terminal Crimp Hand Tool CRIMP TOOL, PIDG AND PLASTI-GRIP TERMINALS Crimper;Ratchet;22-10AWG;PIDG,PLASTI-GRIP,PIDGFASTONTerminals;58423-1Die TE Connectivity Pro-Crimper III 系列 PIDG Splices/Terminals, Plasti-Grip Terminals 压接工具 PRO CR ASSY, RBY IS9252
47387
te connectivity / amp
General Hand Tool Used In The Aircraft And Military Industries Crimpers 16-14AWG PIDG PLIER DAHT Hand Tools 16-14AWG PIDG PLIER DAHT TOOL HAND CRIMP PIDG 14-16 AWG CRIMP TOOL, PIDG, 16-14/20-16 AWG P.I.D.G. DAHT 16-14
314269-1
te connectivity / amp
Terminals Tool Die Set Pneumatic Crimping Head Hand Tools 16-14 PIDG IS9586 PNEU HD PNEU HEAD 16-14AWG PIDG IS9586 Pneumatic crimping head, PIDG, 16-14 AWG PNEUHD16-14PIDGIS9586
320571
TE Connectivity AMP Connectors
Ring Tongue Terminal 16-22AWG 27.38mm 11.91mm Tin Loose Piece Terminals PIDG R 22-16 COMM 22-18MIL 1/4 Ring and Spade Tongue Terminals CONN RING 16-22 AWG #1/4 PIDG Ring terminal, PIDG, red, AWG 22-16, M6 Ring Tongue Terminal 16-22AWG 27.38mm 11.91mm Tin Loose Piece Product Highlights:Terminal Shape = Ring TongueReceptacle Style = StraightBody Style = PIDGBarrel Type = Closed BarrelWire/Cable Type = Regular WireSearch Keywords:Pre-Insulated Diamond Grip, CERTI-SEAL, FASTON, terminals and splices, military/aerospace, PEEK PIDG, PEEK Terminals, AMPLI-BOND, AMPLIVAR, EURO-CRIMP, Duraseal, PIDG, PLASTI-GRIP, SolderGrip, SOLISTRAND, STRATO-THERM, TERMINYL, Standard B CRIMP TERMINAL, RING, 6MM, RED Terminal,RingTongue;RING-041;Copper;22-16AWG;300VAC;1/4(M6);PIDG Ring terminal; M6; Ø:6.35mm; 0.3÷1.42mm2; crimped; for cable; red PIDG Series 22 - 16 AWG Red Straight Closed Barrel Ring Tongue Terminal Ring terminal, 0.3...1.5 mm², 22...16 AWG, PIDG, 320571, TE Connectivity TE Connectivity PIDG 系列, 红色 绝缘 镀锡触芯 环形压接端子 , M6 螺栓, 6.73mm内环直径, 27.38mm总长 PIDG R 22-16 COMM 22-18MIL 1/4
8-31880-1
te connectivity / amp
Ring Tongue Terminal 16-22AWG 17.07mm 5.54mm Tin Loose Piece Terminals PIDG R 22-16 COMM 22 Ring and Spade Tongue Terminals CONN RING 16-22 AWG #4 RED PIDG Ring Tongue Terminal 16-22AWG 17.07mm 5.54mm Tin Loose Piece Product Highlights:Terminal Shape = Ring TongueReceptacle Style = StraightBody Style = PIDGBarrel Type = Closed BarrelWire/Cable Type = Regular WireSearch Keywords:Pre-Insulated Diamond Grip, CERTI-SEAL, FASTON, terminals and splices, military/aerospace, PEEK PIDG, PEEK Terminals, AMPLI-BOND, AMPLIVAR, EURO-CRIMP, Duraseal, PIDG, PLASTI-GRIP, SolderGrip, SOLISTRAND, STRATO-THERM, TERMINYL, Standard B TERMINAL, RING TONGUE, #4, CRIMP, RED SEE512-426331880 PIDG R 22-16 COMM 22-18 MIL 4
1-47387-0
te connectivity / amp
DA BAT TL HD 16-14 PIDG Hand Tools DA BAT TL HD 16-14 TOOL HEAD CRIMP 16-14AWG PIDG
91963-2
te connectivity / amp
S.D.E.PREM.DIE ASSY 16-14 PIDG Punches & Dies S.D.E.PREM.DIE ASSY 16-14 PIDG
8-34142-1
te connectivity / amp
Ring Tongue Terminal 16-22AWG 17.37mm 5.54mm Tin Loose Piece Terminals RING 22-16 #6 Ring and Spade Tongue Terminals CONN RING 16-22 AWG #6 P-G Ring Tongue Terminal 16-22AWG 17.37mm 5.54mm Tin Loose Piece Product Highlights:Terminal Shape = Ring TongueReceptacle Style = StraightBody Style = PLASTI-GRIPBarrel Type = Closed BarrelWire/Cable Type = Regular WireSearch Keywords:Pre-Insulated Diamond Grip, CERTI-SEAL, FASTON, terminals and splices, military/aerospace, PEEK PIDG, PEEK Terminals, AMPLI-BOND, AMPLIVAR, EURO-CRIMP, Duraseal, PIDG, PLASTI-GRIP, SolderGrip, SOLISTRAND, STRATO-THERM, TERMINYL, Standard B TERMINAL, RING TONGUE, #6, CRIMP, RED SEE512-442334142 PG R 22-16 COMM 22-18 MIL 6
679305-1
te connectivity / amp
Connector Accessories Crimping Head Hand Tools PLATFORM & TETRA CRMP HD ASSY TOOL HEAD TETRA CRIMP ADPT ASSY
47807-1
te connectivity / amp

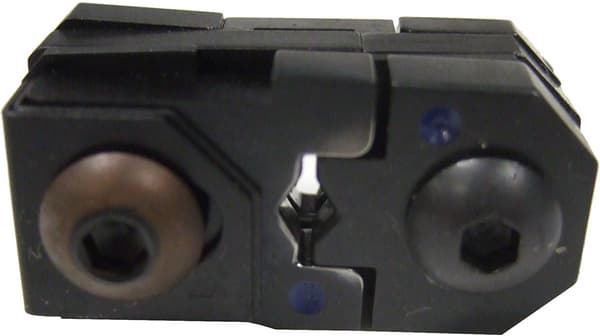

General Hand Tool Used In The Aircraft And Military Industries Punches & Dies DIE PIDG 69100 16-14 DIE PIDG 69100 16-14AWG Crimping dies, 47807-1, TE Connectivity DIE PIDG 69100 16-14
