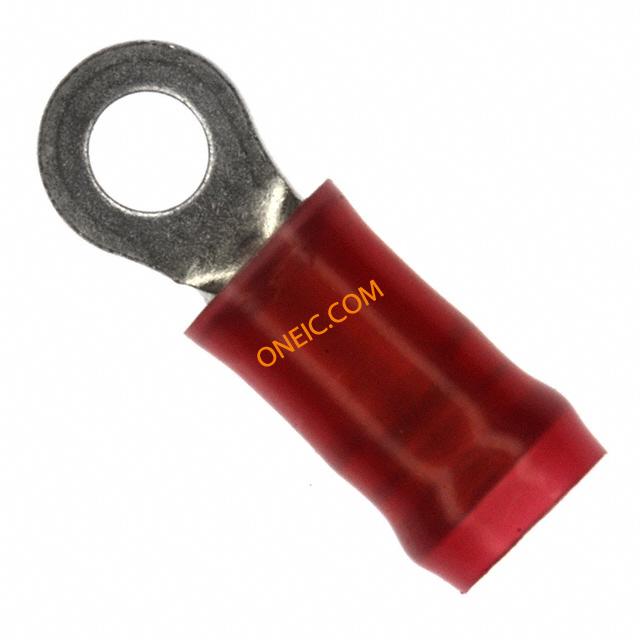

8-31880-1

点击放大查看

8-31880-1

制造商
TE Connectivity Ltd.
描述Ring Tongue Terminal 16-22AWG 17.07mm 5.54mm Tin Loose Piece Terminals PIDG R 22-16 COMM 22 Ring and Spade Tongue Terminals CONN RING 16-22 AWG #4 RED PIDG Ring Tongue Terminal 16-22AWG 17.07mm 5.54mm Tin Loose Piece Product Highlights:Terminal Shape = Ring TongueReceptacle Style = StraightBody Style = PIDGBarrel Type = Closed BarrelWire/Cable Type = Regular WireSearch Keywords:Pre-Insulated Diamond Grip, CERTI-SEAL, FASTON, terminals and splices, military/aerospace, PEEK PIDG, PEEK Terminals, AMPLI-BOND, AMPLIVAR, EURO-CRIMP, Duraseal, PIDG, PLASTI-GRIP, SolderGrip, SOLISTRAND, STRATO-THERM, TERMINYL, Standard B TERMINAL, RING TONGUE, #4, CRIMP, RED SEE512-426331880 PIDG R 22-16 COMM 22-18 MIL 4
分类
连接器解决方案压接与焊接端子/接头片形压接端子
对参数有疑问？问 AI 助手

商业参数

产品Ring Terminals其他名称8318801
产品类别Terminals标准包装数量Bulk
工厂包装数量100

合规参数

RoHSRoHS Compliant标准RoHSCompliant,ELVCompliant
海关税号85369010无铅定义Not relevant for lead free process
RoHS/ELV合规状态RoHS compliant, ELV compliant认证机构标志No

电气参数

电压范围300VAC额定电压300 VAC
供电电压300

机械参数

颜色Red形状RING-041
表面处理Tin长度17.07 mm
重量0.077材料（通用）Copper
包装方式Bulk厚度0.031" (0.79mm)
电缆类型Regular Wire重型No
绝缘类型Insulated螺钉尺寸4
导线线规16-22 AWG本体表面处理PIDG
端接方式Crimp触点形状Ring Tongue
安装类型Free Hanging (In-Line)螺柱/焊片尺寸2.84 mm
端子类型Circular行程角度Straight
连接器类型:Ring Tongue接触镀层Tin
连接器样式Straight总宽度0.218"
触头材料Copper柄部直径0.119in.
绝缘颜色:Red总长度17.07 [0.672]
刀片材料Copper包装数量Loose Piece
主要材料Ring绝缘高度Insulation Support
材料厚度0.031in.接触件尾部长度0.79 [0.031]
绝缘直径2.67-3.56 [.105-.140]绝缘材料 - 类型Nylon
外缘宽度0.218" (5.54mm)绝缘材料 - 材质Polyamide (PA), Nylon
供应商器件封装PIDG线规或范围 - AWG509 – 3,260
线规或范围 - mm²0.30-1.40² [22-16]

产品信息

类型Ring Tongue Terminal系列318
产品特性Serrated Termination制造商全称AMP

文档与媒体

在线文档
8-31880-1?RQPN=8-31880-1
在线文档
TE.Connect?C=1&PN=8-31880-1&M=BYPN&LG=1&I=13
