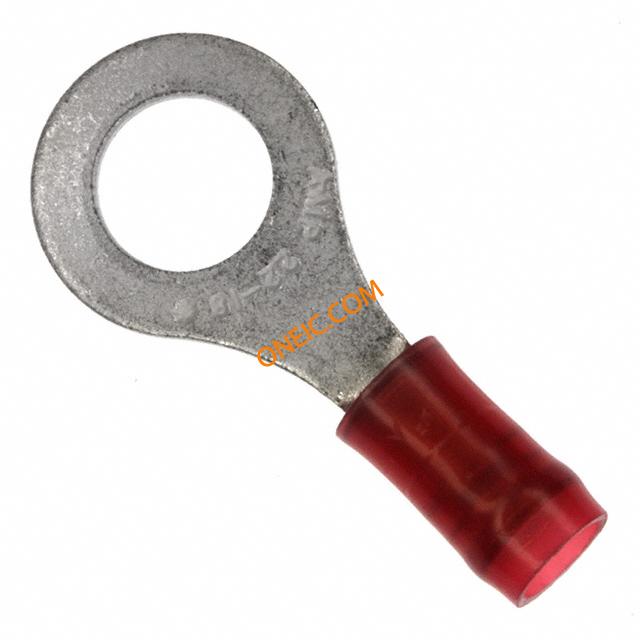

8-31894-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Ring Tongue Terminal 16-22AWG 27.38mm 11.91mm Tin Loose Piece Terminals NYL-RING 22-16 RED #1/4 Ring and Spade Tongue Terminals CONN RING 16-22AWG #1/4 RED PIDG Ring Tongue Terminal 16-22AWG 27.38mm 11.91mm Tin Loose Piece Product Highlights:Terminal Shape = Ring TongueReceptacle Style = StraightBody Style = PIDGBarrel Type = Closed BarrelWire/Cable Type = Regular WireSearch Keywords:Pre-Insulated Diamond Grip, CERTI-SEAL, FASTON, terminals and splices, military/aerospace, PEEK PIDG, PEEK Terminals, AMPLI-BOND, AMPLIVAR, EURO-CRIMP, Duraseal, PIDG, PLASTI-GRIP, SolderGrip, SOLISTRAND, STRATO-THERM, TERMINYL, Standard B TERMINAL, RING TONGUE, 1/4IN, CRIMP, RED SEE512-446931894 PIDG R 22-16 COMM 22-18MIL 1/4 |
| 分类 |
商业参数
| 产品 | Ring Terminals | 其他名称 | 8318941 |
| 产品类别 | Terminals | 标准包装数量 | Bulk |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 认证机构标志 | No | ||
电气参数
| 额定电压 | 300 VAC | 供电电压 | 300 |
机械参数
| 颜色 | Red | 形状 | RING-041 |
| 表面处理 | Tin | 重量 | 0.127 |
| 材料（通用） | Copper | 包装方式 | Bulk |
| 厚度 | 0.031" (0.79mm) | 电缆类型 | Regular Wire |
| 重型 | No | 绝缘类型 | Insulated |
| 导线线规 | 16-22 AWG | 端接方式 | Crimp |
| 触点形状 | Ring Tongue | 安装类型 | Free Hanging (In-Line) |
| 螺柱/焊片尺寸 | 6.35 mm | 端子类型 | Circular |
| 连接器类型 | :Ring Tongue | 接触镀层 | Tin |
| 连接器样式 | Straight | 触头材料 | Copper |
| 绝缘颜色 | :Red | 总长度 | 1.078" (27.38mm) |
| 包装数量 | Loose Piece | 绝缘高度 | Insulation Support |
| 绝缘直径 | 3.56 [.140] Max. | 绝缘材料 - 类型 | Nylon |
| 外缘宽度 | 0.469" (11.91mm) | 绝缘材料 - 材质 | Polyamide (PA), Nylon |
| 舌片内部开口 | 0.79 [0.031] | 供应商器件封装 | PIDG |
| 线规或范围 - AWG | 509 â 3,260 | 线规或范围 - mm² | 0.30-1.40² [22-16] |
产品信息
| 类型 | Ring Tongue Terminal | 系列 | 318 |
| 产品特性 | Serrated Termination | 制造商全称 | AMP |
