点击放大查看

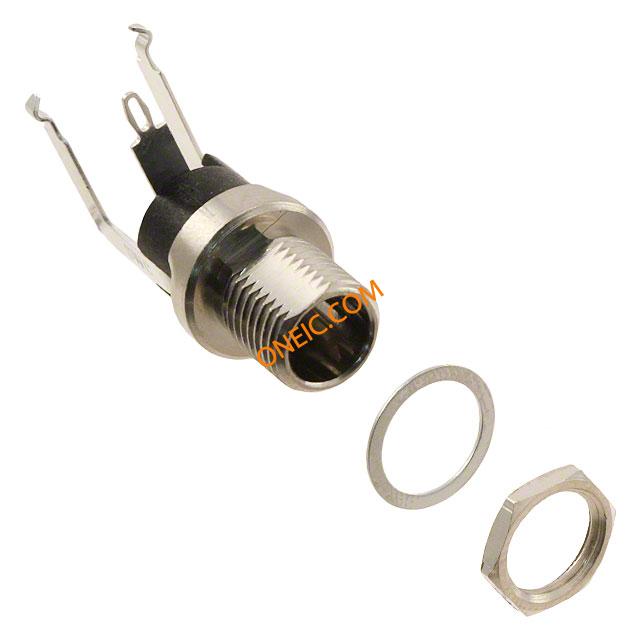

L722RA
| 制造商 | |
| 描述 | Conn Power PL 3 POS 3.3mm Solder RA Thru-Hole 3 Terminal 1 Port CONN JACK THREAD PWR RT ANG PC Jack; Power; Right Angle PC Mount; 0.080 in.; 0.319 in. (Bushing) DC Power Connectors R/A PC TERMINALS LONG BUSHING JACK SOCKET, DC Jack,Power;RightAnglePCMount;0.080in.;0.319in.(Bushing) |
| 分类 |
商业参数
| 产品 | Jacks | 产品类别 | DC Power Connectors |
| 标准包装数量 | 1 | 工厂包装数量 | 100 |
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85369010 |
电气参数
| 额定电压 | 12VDC | 极数 | 3 |
| 接触电阻 | 0.01Ohms(Max.)(Initial) | 最大额定电流 | 5A |
| 绝缘电阻 | 10000 MOhms | 最小输入电压 | 12VDC |
| 最小供电电压 | 12VDC | 直流开关电压 | 500VAC(Max.) |
机械参数
| 颜色 | Silver | 间距 | 3.3 mm |
| 长度 | 0.319in.(Bushing) | 重量 | 0.001 |
| 直径 | 10.92 mm | 屏蔽 | Unshielded |
| 交流输出口 | :1 | 端接方式 | Solder |
| 触头类型 | Pin | 引脚直径 | 0.080in. |
| 外壳颜色 | Black | 安装类型 | Through Hole |
| 连接器类型 | Jack | 安装样式 | PCB |
| 触头材料 | Copper Alloy | 壳体材料 | Plastic |
| 主要材料 | Power | 触点数 | 3 |
| 接触件端接 | :Solder | 接触镀层厚度 | 2.1 mm |
| 插头/配合插头直径（类型） | 2.1mm ID, 5.5mm OD | 触点材料 - 镀层 | Silver |
| 第一连接器安装类型 | :PCB | ||
产品信息
| 类型 | Power | 等级 | Instrumentation |
| 连接器性别 | PL | 系列 | Right Angle DC Locking Power Jacks |
| 产品特性 | Mounting Hardware, Thread Lock | 制造商全称 | RASeries |
| 端口数 | 1 | 内部开关 | Single Switch, Normally Closed |
| 位置/触点数量 | 2 Conductors, 2 Contacts | ||
文档与媒体
相关型号
35581X
Switchcraft
RCA Phono Connectors PLUG W/RED HANDLE Conn RCA M 2 POS Solder/Crimp ST Cable Mount 2 Terminal 1 Port CONN PLUG PHONO 2POS RED W/HDWR phono plug; red phonoplug,red
35582X
Switchcraft
RCA Phono Connectors BLACK PLUG W/CLAMP Conn RCA M 2 POS Solder/Crimp ST Cable Mount 2 Terminal 1 Port CONN PLUG PHONO 2POS BK W/HDWR phono plug; black phonoplug,black
3502
Switchcraft
RCA Phono Connectors Ni HD PLUG W/CLAMP Conn RCA M 2 POS Solder/Crimp ST Cable Mount 2 Terminal 1 Port CONN PLUG PHONO 2POS SHIELDED Phone Plug; 2; Solder; 0.285 in. (Max.); Copper Alloy; Nickel; 0.688 in. PhonePlug;2;Solder;0.285in.(Max.);CopperAlloy;Nickel;0.688in.
L722RA
Switchcraft
Conn Power PL 3 POS 3.3mm Solder RA Thru-Hole 3 Terminal 1 Port CONN JACK THREAD PWR RT ANG PC Jack; Power; Right Angle PC Mount; 0.080 in.; 0.319 in. (Bushing) DC Power Connectors R/A PC TERMINALS LONG BUSHING JACK SOCKET, DC Jack,Power;RightAnglePCMount;0.080in.;0.319in.(Bushing)

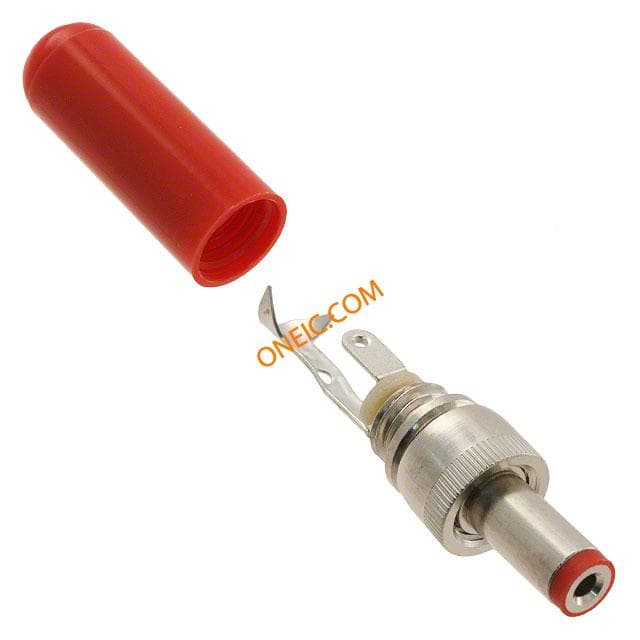

768K
Switchcraft
2.1MM CTR PIN LCK PW CONN POWER PLUG LOCKING RED DC Power Connectors 2.1mm Locking Plug Red Tip Red Handle 2.1MMCTRPINLCKPW

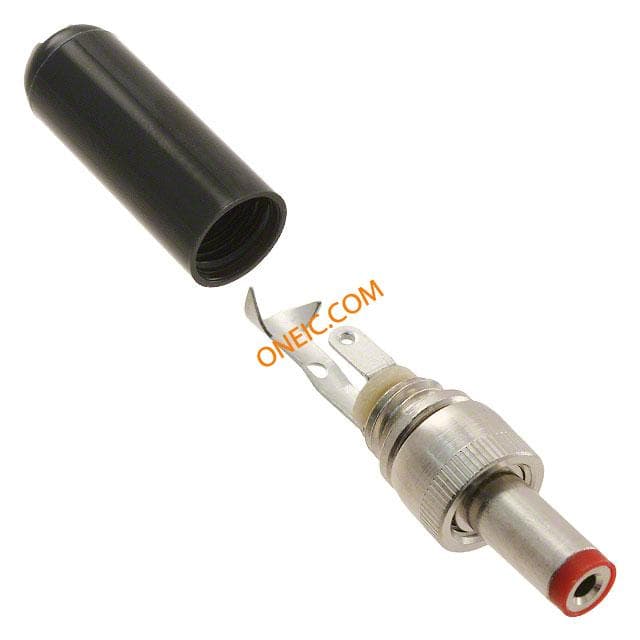

767K
