点击放大查看
35581X
| 制造商 | |
| 描述 | RCA Phono Connectors PLUG W/RED HANDLE Conn RCA M 2 POS Solder/Crimp ST Cable Mount 2 Terminal 1 Port CONN PLUG PHONO 2POS RED W/HDWR phono plug; red phonoplug,red |
| 分类 |
商业参数
| 其他名称 | SC1321 | 产品类别 | RCA Phono Connectors |
| 标准包装数量 | 500 | 工厂包装数量 | 500 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 信号线数 | Mono | 额定电压 | 250VAC, 140VDC |
| 最大额定电流 | 6A | 最小输入电压 | 140VDC|250VAC |
机械参数
| 颜色 | Black | 包装方式 | Bulk |
| 屏蔽 | Unshielded | 端接方式 | Solder|Crimp |
| 外壳颜色 | Red | 安装类型 | Cable Mount |
| 行程角度 | Straight | 连接器类型 | Phono (RCA) Plug |
| 接触镀层 | Nickel | 安装样式 | Cable |
| 触头材料 | Copper Alloy | 壳体材料 | Copper Alloy |
| 主要材料 | RCA(Phono) | 端接样式 | Crimp |
| 触点数 | 2 | 按钮/帽颜色 | Golden |
| 插头/配合插头直径（类型） | 3.20mm ID, 9.00mm OD (RCA) | 触点材料 - 镀层 | Gold |
产品信息
| 类型 | RCA | 连接器性别 | M |
| 系列 | 3502A | 产品特性 | Mounting Hardware |
| 端口数 | 1 | 内部开关 | Does Not Contain Switch |
| 位置/触点数量 | 2 Conductors, 2 Contacts | ||
环境参数
| 工作温度 | -40°C ~ 85°C | ||
文档与媒体
相关型号

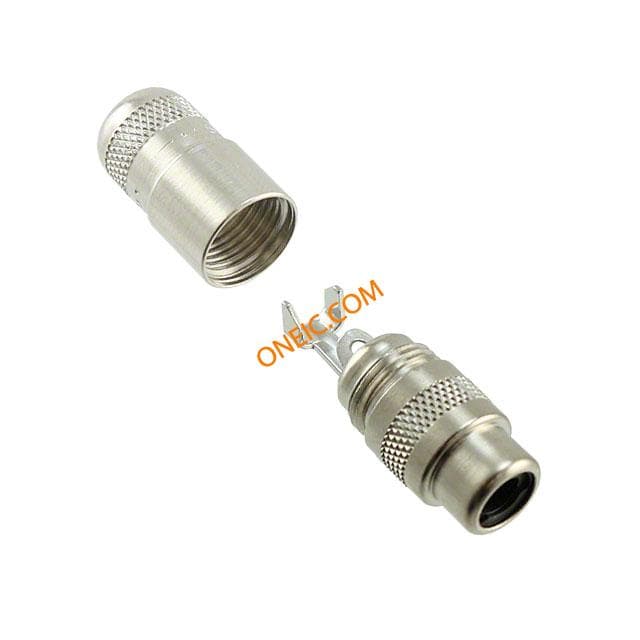

3503X
Switchcraft
RCA Phono Connectors EXT PHONO JAX Conn RCA F 2 POS Solder ST Cable Mount 2 Terminal 1 Port CONN JACK PHONO 2POS SHIELDED Jack; Phono Extension; 0.375 in.; Bright Nickel Plate; Nickel; 1.219 in CONNECTOR, RCA/PHONO, JACK, 2POS Jack,PhonoExtension;0.375in.;BrightNickelPlate;Nickel;1.219in Switchcraft RCA 插座 , 电缆安装, 镀镍触点
3501FRX
Switchcraft
RCA Phono Connectors REAR MOUNT JACK Conn RCA F 2 POS Solder ST Panel Mount 2 Terminal 1 Port CONN JACK PHONO 2POS REAR PNLMT Jack; Phone; Panel; 2; 0.203 Jack,Phone;Panel;2;0.203

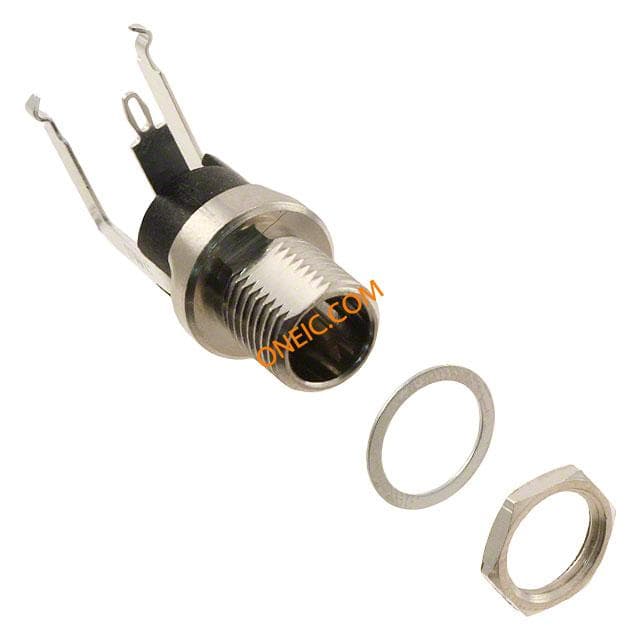

L722RA
