点击放大查看

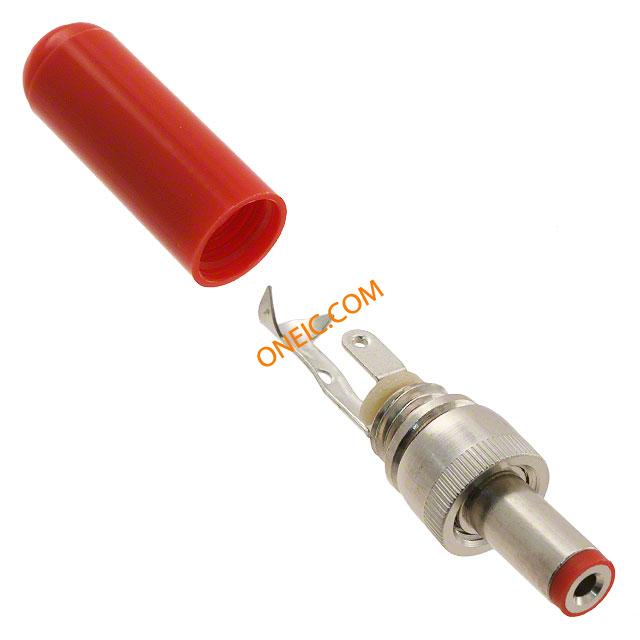

768K
| 制造商 | |
| 描述 | 2.1MM CTR PIN LCK PW CONN POWER PLUG LOCKING RED DC Power Connectors 2.1mm Locking Plug Red Tip Red Handle 2.1MMCTRPINLCKPW |
| 分类 |
商业参数
| 产品 | Plugs | 产品类别 | DC Power Connectors |
| 标准包装数量 | 100 | 工厂包装数量 | 100 |
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 最大额定电流 | 5A | ||
机械参数
| 颜色 | Red | 屏蔽 | Unshielded |
| 端接方式 | Solder Eyelet(s) | 外壳颜色 | Red |
| 安装类型 | Free Hanging (In-Line) | 连接器类型 | Plug |
| 接触镀层 | Nickel | 触头材料 | Copper Alloy |
| 壳体材料 | Plastic | 接触镀层厚度 | 2.1 mm |
| 中心距 | 25.4 mm | 插头/配合插头直径（类型） | 2.1mm ID, 5.5mm OD |
| 触点材料 - 镀层 | Nickel | ||
产品信息
| 连接器性别 | Female | 系列 | Miniature DC Power Plugs |
| 产品特性 | Thread Lock | 内部开关 | Does Not Contain Switch |
| 位置/触点数量 | 2 Conductors, 2 Contacts | ||
