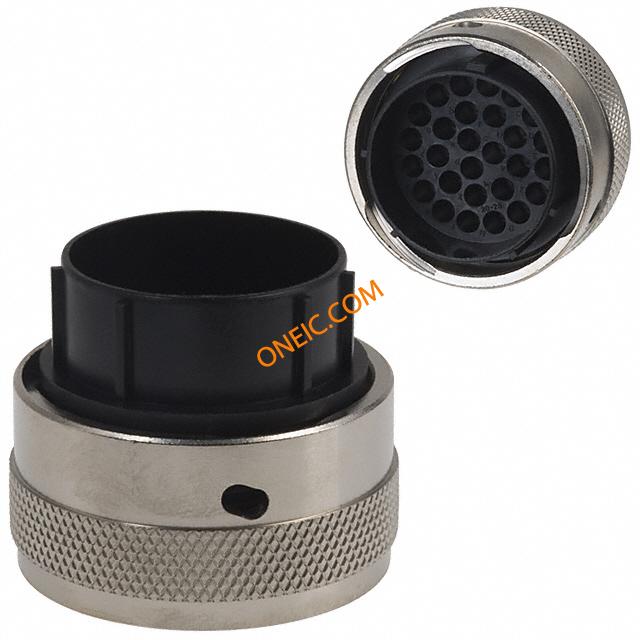

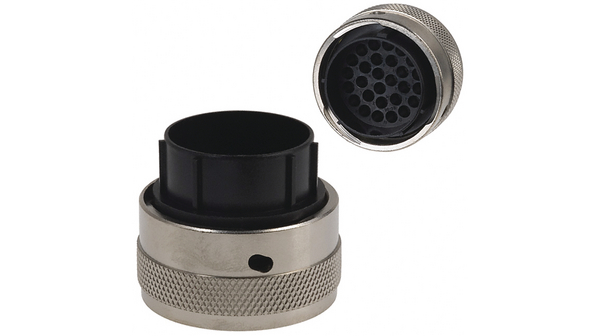

UTG622-35PN
| 制造商 | SOURIAU SAS |
| 描述 | Standard Circular Connector 35P Strt Pin Plug Shell Size 22 Conn Metalok Bantam PIN 35 POS Crimp ST Cable Mount 35 Terminal 1 Port CONN PLUG CABLE MALE 35POS connector;plastic circular;metal coupling ring;str plug;size 22;for 35 pin cont connector,plasticcircular,metalcouplingring,strplug,size22,for35pincont CONN HSG PLUG 35POS CABLE PIN Cable plug, Trim Trio 35-pin Male 22, UTG622-35PN, Souriau |
| 分类 |
商业参数
| 商标名 | Trim Trio | 产品类别 | Standard Circular Connector |
| 标准包装数量 | 25 | 工厂包装数量 | 50 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 额定电压 | 2 kV | 极数 | 35 |
| 最大额定电流 | 13 A | ||
机械参数
| 直径 | 40.7 | 包装方式 | Bulk |
| 壳体颜色 | 31.8 | 外壳尺寸 | 22 |
| 方向 | Keyed | 端接方式 | Crimp |
| 触点形式 | Crimp | 触点尺寸 | 16 |
| 触头类型 | 35Signal | 安装类型 | Cable Mount |
| 连接器类型 | Plug for Male Contacts | 紧固类型 | Bayonet Lock |
| 安装样式 | Wire | 外壳材料（壳体） | Thermoplastic |
| 连接器样式 | straight | 插入角度 | 22-35 |
| 锁定特性 | Bayonet locking | 触头材料 | CuNi+Au |
| 壳体材料 | Metal | 总长度 | 31.8 |
| 端接样式 | Crimp Connection | 第一触头极性 | PIN |
| 外径 | 30.4 | 触点数 | 35 |
| 位数 | 35 | 外壳尺寸-插件 | 22-35 |
| 第一连接器极性 | Male | 外壳材料及表面处理 | Thermoplastic, Glass Filled |
| 外壳尺寸-插入件（转换至） | 22-35 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Metalok Bantam |
| 连接器性别 | PL | 系列 | UTG |
| 产品子类型 | Cable Plugs | 放大器类型 | 40.7 |
| 输出配置 | Free Hanging (In-Line) | ||
环境参数
| 工作温度 | -55...+125 °C | ||
文档与媒体
相关型号
UT072235SH
Souriau
Standard Circular Connector 35P Sckt Receptacle Jam Nut Size 22 CONN RCPT FEMALE 35POS JAM NUT CONNECTOR, CIRCULAR, RCPT, 35POS, PANEL
UT002235SH
Souriau
Standard Circular Connector 35P Sckt Receptacle Wall Mount Size 22 CONN RCPT FEMALE 35POS WALL MNT CONNECTOR, CIRCULAR, RCPT, 35POS, PANEL Souriau UT0 系列 35路 壁挂式 直向 圆形连接器 插座 , 母触点, 卡口式接合
SM24ML-1TK6
Souriau
Standard Circular Contacts Trim Trio Pin Crimp 24 AWG Contact Sz 16 Contact PIN Crimp ST Cable Mount Loose Piece CONTACT PIN CRIMP 24-26AWG TIN Tin plate crimp pin contact,26-24awg connectorcomponent,stampedandformedcrimppincont,size16,for26-24awgwire Contact;Pin;Stamped;Sz16;Crimp;26-24AWG;TrimTrioSMSer;TinPlate Souriau 公 压接端接 圆形 连接器 触芯, 26 → 24 AWG 线规格

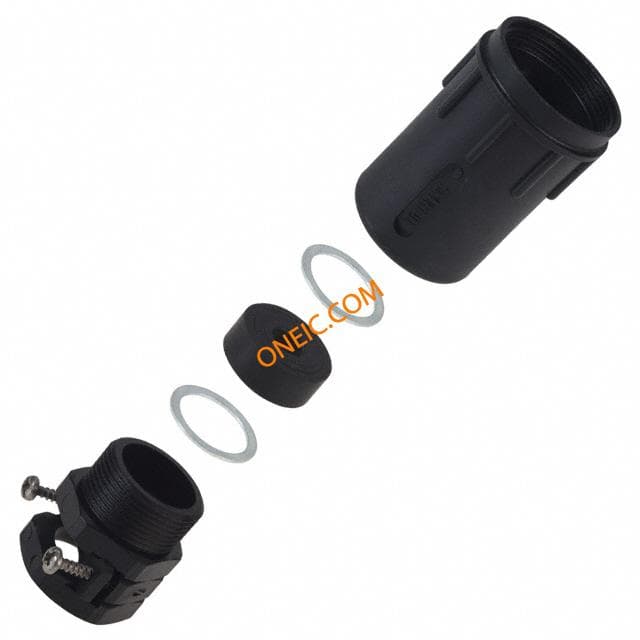

UTG22PG
Souriau
Standard Circular Connector Cable Clamp IP65 Shell Size 22 CABLECLAMP W/STR RELIEF IP65 #22 connector accessory;plastic cable clamp w/sealing gland;size 22;for utg&utp ser CABLE CLAMP, IP65, SIZE22 connectoraccessory,plasticcableclampw/sealinggland,size22,forutg&utpser Strain relief IP65 size 11...22 mm, UTG22PG, Souriau
SM14M-1S6
Souriau
Standard Circular Contacts Trim Trio Pin Crimp 14 AWG Contact Sz 16 Contact PIN Crimp ST Cable Mount Reel CONTACT PIN CRIMP 14AWG GOLD
SM24ML-1D70
Souriau
Standard Circular Contacts Trim Trio Pin Crimp 24 AWG Contact Sz 16 Contact PIN Crimp ST Cable Mount Loose Piece CONTACT PIN CRIMP 24-26AWG GOLD Gold flash crimp pin contact,26-24awg connectorcomponent,stampedandformedcrimppincont,size16,for26-24awgwire Contact;Pin;Stamped;Sz16;Crimp;26-24AWG;TrimTrioSMSer;GoldPlate Souriau 公 压接端接 圆形 连接器 触芯, 26 → 24 AWG 线规格
SM24M1TK6
Souriau
Standard Circular Connector Trim Trio Pin Crimp 24 AWG Contact Sz 16 Contact PIN Crimp ST Cable Mount Reel CONTACT PIN CRIMP 24-26AWG TIN CIRCULAR CONTACT, PIN, 26-24AWG, CRIMP tapeandreelcontacts
SM16M1TK6
Souriau
Standard Circular Contacts Trim Trio Pin Crimp 16 AWG Contact Sz 16 Contact PIN Crimp ST Cable Mount Reel CONTACT PIN CRIMP 16-18AWG TIN CIRCULAR CONTACT, PIN, 16AWG, CRIMP Male #16 Stamped and formed crimp contact 2PCSTRIPHYFPIN#18-16
RM16M23D28
Souriau
Standard Circular Contacts MACHINED PIN 20-16 Contact PIN Crimp ST Cable Mount Bulk CONTACT PIN CRIMP 16-20AWG GOLD connector comp;size 16 machined crimp pin contact;for 20-16awg wire;gold plated CONTACT, PIN, 20-16AWG, CRIMP connectorcomp,size16machinedcrimppincontact,for20-16awgwire,goldplated Contact;Pin;Machined;Sz16;Crimp;20-16AWG;TrimTrioRMSer;GoldPlate
SM14M1TK6
Souriau
Standard Circular Contacts Trim Trio Pin Crimp 14 AWG Contact Sz 16 CONTACT PIN CRIMP 14AWG TIN CIRCULAR CONTACT, PIN, 14AWG, CRIMP
UTG022-35S
Souriau
Standard Circular Connector 35P Sckt Receptacle Wall Mount Size 22 CONN RCPT FEMALE 35POS WALL MT connector;plastic circular;metal coupling ring;wall recept;size 22;for 35 socket connector,plasticcircular,metalcouplingring,wallrecept,size22,for35socket Female receptacle Trim Trio 35-pin Trim Trio UTG 35P Female 22, UTG022-35S, Souriau

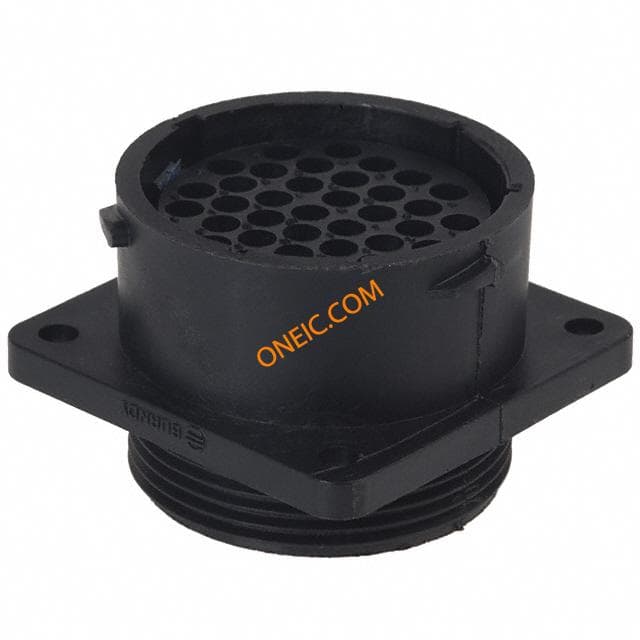

UTP02235S
