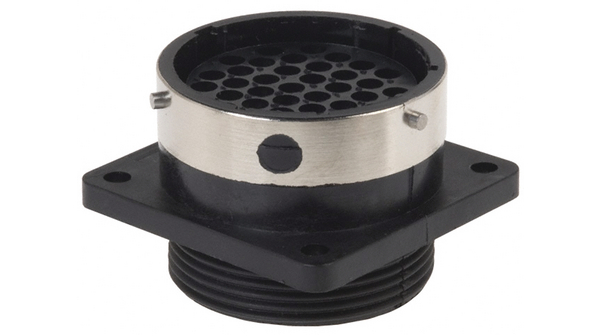

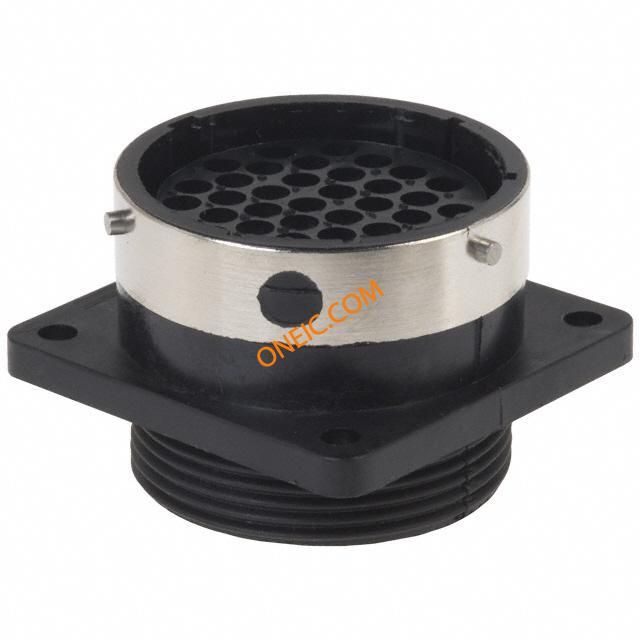

UTG022-35S
| 制造商 | SOURIAU SAS |
| 描述 | Standard Circular Connector 35P Sckt Receptacle Wall Mount Size 22 CONN RCPT FEMALE 35POS WALL MT connector;plastic circular;metal coupling ring;wall recept;size 22;for 35 socket connector,plasticcircular,metalcouplingring,wallrecept,size22,for35socket Female receptacle Trim Trio 35-pin Trim Trio UTG 35P Female 22, UTG022-35S, Souriau |
| 分类 |
商业参数
| 商标名 | Trim Trio | 产品类别 | Standard Circular Connector |
| 标准包装数量 | 50 | 工厂包装数量 | 25 |
合规参数
| RoHS | Compliant | ||
电气参数
| 频率 | 39.3 | 额定电压 | 500 |
| 极数 | 35 | 最大额定电流 | 13 A |
机械参数
| 包装方式 | Bulk | 外壳尺寸 | 22 |
| 方向 | Keyed | 外壳样式 | Square Flange |
| 触点尺寸 | 16 | 触头类型 | Crimp |
| 安装类型 | Panel Mount, Flange | 连接器类型 | Receptacle for Female Contacts |
| 紧固类型 | Bayonet Lock | 安装样式 | Wall |
| 外壳材料（壳体） | Thermoplastic | 连接器样式 | with flange |
| 插入角度 | 22-35 | 锁定特性 | Bayonet locking |
| 触头材料 | CuNi+Au | 壳体材料 | Metal |
| 端接样式 | Crimp Connection | 第一触头极性 | Without Socket Contacts |
| 外径 | 34.9 | 触点数 | 35 |
| 位数 | 35 | 外壳尺寸-插件 | 22-35 |
| 第一连接器极性 | Female | 外壳材料及表面处理 | Thermoplastic, Glass Filled |
产品信息
| 备注 | Contacts Not Provided | 系列 | UTG |
| 产品子类型 | Receptacles | 放大器类型 | 28 |
环境参数
| 工作温度 | -55...+125 °C | ||
