UT06128SH
| 制造商 | SOURIAU SAS |
| 描述 | Standard Circular Connector 8P Strt Socket Plug Size 12 CONN PLUG CABLE 8POS FEMALE Conn Metal Circular SKT 8 POS Crimp ST Cable Mount 8 Terminal 1 Port Bag SOCKET HOUSING, FREE, 8WAY connector,metalcircular,strplug,for8size16socketcont,ip68/ip69ksealing Cable socket UT0 8-pin Trim Trio UT0 8P Female 12, UT06128SH, Souriau Souriau 8路 电缆安装 连接器 插头 ,母触芯, 外壳尺寸12 |
| 分类 |
商业参数
| 商标名 | Trim Trio | 其他名称 | SOU1034 |
| 产品类别 | Standard Circular Connector | 标准包装数量 | 25 |
| 工厂包装数量 | 25 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| 抗辐射加固 | No | 材料阻燃等级 | :UL94V-0 |
电气参数
| 测试电压 | :2000V | 额定电压 | 250 V |
| 绝缘电阻 | :5000Mohm | ||
机械参数
| 重量 | 0.01795 | 直径 | 24.8 mm |
| 包装方式 | Bulk | 出线方向 | No |
| 外壳尺寸 | 12 | 方向 | N (Normal) |
| 端接方式 | Crimp | 触点形式 | 8Signal |
| 触点尺寸 | 16 | 触头类型 | Crimp |
| 安装类型 | Free Hanging (In-Line) | 外壳镀层 | Nickel |
| 连接器类型 | Plug for Female Contacts | 紧固类型 | Bayonet Lock |
| 安装样式 | Cable | 外壳材料（壳体） | Zinc Alloy |
| 插入角度 | 12-8 | 本体材料 | :Zinc Alloy |
| 总长度 | 31.8 mm | 第一触头极性 | Without Socket Contacts |
| 触点数 | 8 | 位数 | 8 |
| 外壳尺寸-插件 | 12-8 | 外壳材料及表面处理 | Zinc, Nickel Plated |
| 第一连接器安装类型 | :Cable | 外壳尺寸-插入件（转换至） | 12-8 |
产品信息
| 备注 | Contacts Not Provided | 类型 | Metal Circular |
| 连接器性别 | PL | 系列 | UT0 |
| 产品特性 | Shielded | 产品子类型 | Cable Plugs |
| 射频系列/标准 | UT0 | ||
环境参数
| 插拔次数 | :500 | NEMA 机架尺寸 | :IP67, IP68, IP69K |
| 防护等级 | IP 67 | 工作温度 | -40C to 105C |
文档与媒体
相关型号
UT07128PH
Souriau
Standard Circular Connector 8P Pin Receptacle Jam Nut Size 12 CONN RCPT MALE 8POS JAM NUT RECEPTACLE, MALE, SIZE12, 8WAY connector,metalcirc,jamnutrecept,for8size16pincont,ip68/ip69ksealing Souriau UTO 系列 8路 面板安装 直向 连接器 插座 , 公触点
UT012AC
Souriau
Standard Circular Connector Cable Clamp Size 12 With Strain Relief Connector Accessories Metal Cable Clamp With Strain Relief Shell Size 12 CONN CABLE CLAMP METAL #12 HOOD, METAL, STRAIN RELIEF, SIZE 12 UTO-UTOW cable clamp,strain relief,
UT00128PH
Souriau
Standard Circular Connector 8P Pin Receptacle Wall Mount Size 12 Conn Metal Circular PIN 8 POS Crimp ST Wall Mount 8 Terminal 1 Port Bag CONN RCPT MALE 8POS WALL MNT RECEPTACLE, MALE, SIZE12, 8WAY connector,metalcircular,wallrecept,for8size16pincont,ip68/ip69ksealing

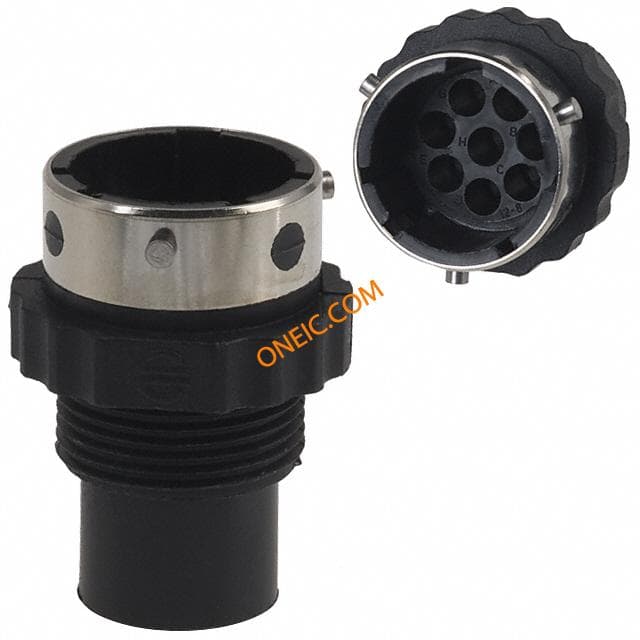

UTG1128P
Souriau
Standard Circular Connector 8P Pin Receptacle Cable Mount Size 12 CONN RCPT CABLE MALES 8POS
RC16M23D28
Souriau
Standard Circular Contacts Crimp Socket Contact 16-20 AWG Contact SKT Crimp ST Cable Mount Bulk CONTACT SKT CRIMP 16-20AWG GOLD connector comp;size 16 machined crimp socket contact;for 20-16awg wire;gold plt Female #16 Machined crimp contact connectorcomp,size16machinedcrimpsocketcontact,for20-16awgwire,goldplt Contact;Socket;Machined;Sz16;Crimp;20-16AWG;TrimTrioRCSer;GoldPlate
SC16ML-1D70
Souriau
Standard Circular Contacts Trim Trio Socket 16 AWG Contact Sz 16 CONTACT SKT CRIMP 16-18AWG GOLD connector component;stamped and formed crimp socket cont;size 16;18-16awg wire connectorcomponent,stampedandformedcrimpsocketcont,size16,18-16awgwire Contact;Socket;Stamped;Sz16;Crimp;18-16AWG;TrimTrioSCSer;GoldPlate
SC16M11S6
Souriau
Standard Circular Contacts Trim Trio Socket 16 AWG Contact Sz 16 Contact SKT Crimp ST Cable Mount Reel CONTACT SKT CRIMP 16-18AWG GOLD CIRCULAR CONTACT, SKT, 18-16AWG, CRIMP
SC20ML-1S6
Souriau
Standard Circular Contacts Trim Trio Socket 20 AWG Contact Sz 16 Contact SKT Crimp ST Cable Mount Loose Piece CONTACT SKT CRIMP 20-22AWG GOLD connectorcomponent,stampedandformedcrimpsocketcont,size16,22-20awgwire Contact;Socket;Stamped;Sz16;Crimp;22-20AWG;TrimTrioSCSer;GoldFlashAll
SC16M1TK6
Souriau
Standard Circular Contacts Trim Trio Socket 16 AWG Contact Sz 16 Contact SKT Crimp ST Cable Mount Reel CONTACT SKT CRIMP 16-18AWG TIN CIRCULAR CONTACT, SKT, 18-16AWG, CRIMP Female #16 Stamped and formed crimp contact tapeandreelcontacts
SC16ML-1TK6
Souriau
Standard Circular Contacts Trim Trio Socket 16 AWG Contact Sz 16 Contact SKT Crimp ST Cable Mount Loose Piece CONTACT SKT CRIMP 16-18AWG TIN G-Bantamate, MBG, SMS Qikmate, Series Size 16 13A Female Circular Connector Contact, Crimp,Wire size 18 to 16AWG connectorcomponent,stampedandformedcrimpsocketcont,size16,18-16awgwire Contact;Socket;Stamped;Sz16;Crimp;18-16AWG;TrimTrioSCSer;TinPlate Souriau 13A 母 压接端接 圆形 连接器 触芯, 18 → 16 AWG 线规格
SC24M1TK6
SOURIAU
Contact SKT Crimp ST Cable Mount Reel CONTACT SKT CRIMP 24-26AWG TIN Pin & Socket Connectors Trim Trio Socket 24 AWG Contact Sz 16 CIRCULAR CONTACT, SKT, 26-24AWG, CRIMP tapeandreelcontacts
SC14M-1S6
SOURIAU
Contact SKT Crimp ST Cable Mount Reel CONTACT SKT CRIMP 14AWG GOLD
SC20M-1TK6
SOURIAU
Contact SKT Crimp ST Cable Mount Reel CONTACT SKT CRIMP 20-22AWG TIN tapeandreelcontacts
SC14ML-1TK6
SOURIAU
Contact SKT Crimp ST Cable Mount Loose Piece CONTACT SKT CRIMP 14AWG TIN G-Bantamate, MBG, SMS Qikmate, Series Size 16 13A Female Circular Connector Contact, Crimp,Wire size 14AWG connectorcomponent,stampedandformedcrimpsocketcont,size16,for14awgwire Contact;Socket;Stamped;Sz16;Crimp;14AWG;TrimTrioSCSer;TinPlate Souriau 13A 母 压接端接 圆形 连接器 触芯, 14 AWG 线规格
SC24M-1S6
SOURIAU
Contact SKT Crimp ST Cable Mount Reel CONTACT SKT CRIMP 24-26AWG GOLD

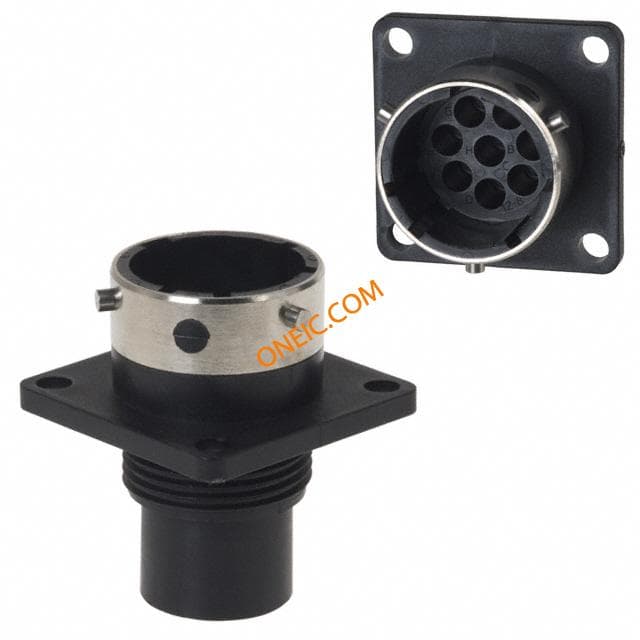

UTG0128P
SOURIAU
Conn CPC With Metal Coupling PIN 8 POS Crimp ST Wall Mount 8 Terminal 1 Port Bag CONN RCPT MALE 8POS WALL MT CIRCULAR CONN, RECEPTACLE, 8 WAY, PANEL Conn.;Circ.;Socket;12ShellSize;MaleInsert;8#16PinCnts;PnlMnt:UTG
SC14ML-1S6
SOURIAU
Contact SKT Crimp ST Cable Mount Loose Piece CONTACT SKT CRIMP 14AWG GOLD connectorcomponent,stampedandformedcrimpsocketcont,size16,for14awgwire Contact;Socket;Stamped;Sz16;Crimp;14AWG;TrimTrioSCSer;GoldFlashAll
SC16M-1S6
Souriau Connection Technology
CONTACT SKT CRIMP 16-18AWG GOLD
SC24M62TK6
Souriau Connection Technology
CONTACT SKT CRIMP 24-26AWG TIN

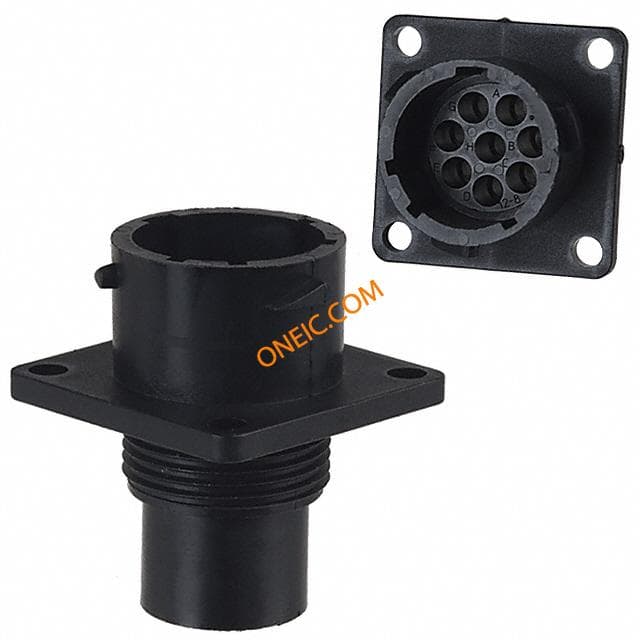

UTP0128P
