点击放大查看

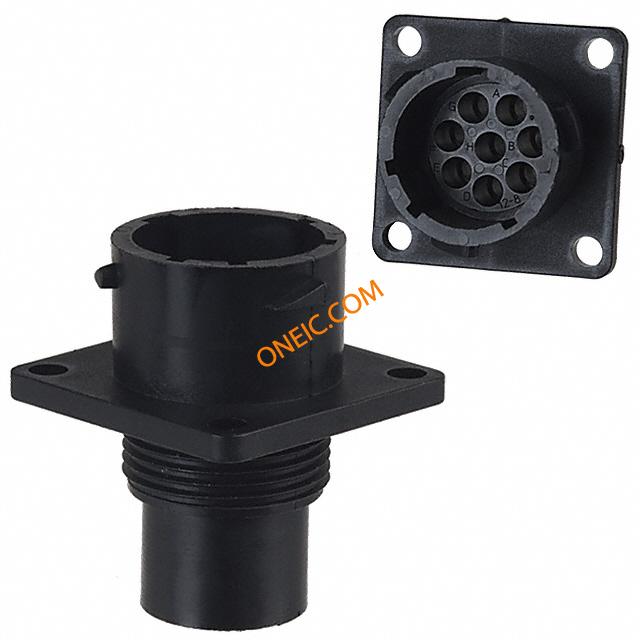

UTP0128P
| 制造商 | SOURIAU SAS |
| 描述 | CONN RCPT MALE 8POS WALL MNT PLUG, PANEL, 8WAY connector,plasticcircular,wallreceptacle,size12,for8size16pincontact |
| 分类 |
商业参数
| 其他名称 | SOU1142 | 标准包装数量 | 50 |
合规参数
| 海关税号 | 85369010 | 材料阻燃等级 | :UL94V-0 |
电气参数
| 额定电压 | :750V | 工作电压 | :750V |
| 绝缘电阻 | :5000Mohm | ||
机械参数
| 重量 | 0.012 | 包装方式 | Bulk |
| 方向 | Keyed | 触点尺寸 | 16 |
| 触头类型 | Crimp | 安装类型 | Panel Mount, Flange |
| 连接器类型 | Receptacle for Male Contacts | 紧固类型 | Bayonet Lock |
| 插入角度 | :12-8 | 本体材料 | :Glass Filled Thermoplastic |
| 第一触头极性 | :Pin | 连接器颜色 | :Black |
| 面板开孔形状 | :21.8mm | 位数 | 8 |
| 外壳尺寸-插件 | 12-8 | 外壳材料及表面处理 | Thermoplastic, Glass Filled |
| 第一连接器安装类型 | :Panel | ||
产品信息
| 备注 | Contacts Not Provided | 连接器性别 | :Socket |
| 系列 | :UTP | ||
环境参数
| 防护等级 | IP65 - Dust Tight, Water Resistant | 工作温度 | :125°C |
文档与媒体
相关型号
UT06128SH
Souriau
Standard Circular Connector 8P Strt Socket Plug Size 12 CONN PLUG CABLE 8POS FEMALE Conn Metal Circular SKT 8 POS Crimp ST Cable Mount 8 Terminal 1 Port Bag SOCKET HOUSING, FREE, 8WAY connector,metalcircular,strplug,for8size16socketcont,ip68/ip69ksealing Cable socket UT0 8-pin Trim Trio UT0 8P Female 12, UT06128SH, Souriau Souriau 8路 电缆安装 连接器 插头 ,母触芯, 外壳尺寸12
SM24ML-1TK6
Souriau
Standard Circular Contacts Trim Trio Pin Crimp 24 AWG Contact Sz 16 Contact PIN Crimp ST Cable Mount Loose Piece CONTACT PIN CRIMP 24-26AWG TIN Tin plate crimp pin contact,26-24awg connectorcomponent,stampedandformedcrimppincont,size16,for26-24awgwire Contact;Pin;Stamped;Sz16;Crimp;26-24AWG;TrimTrioSMSer;TinPlate Souriau 公 压接端接 圆形 连接器 触芯, 26 → 24 AWG 线规格

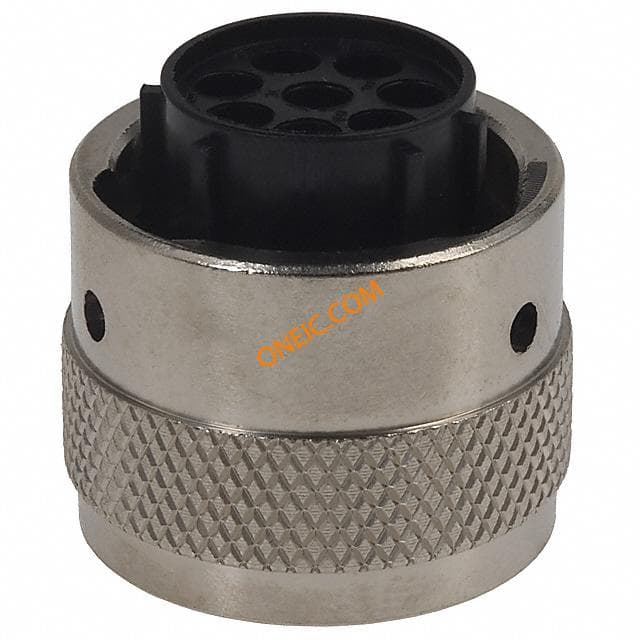

UTG612-8SN
Souriau
Standard Circular Connector 8P Strt Socket Plug Shell Size 12 Conn Metalok Bantam SKT 8 POS Crimp ST Cable Mount 8 Terminal 1 Port CONN PLUG CABLE FEMALE 8POS connector;plastic circular;metal coupling ring;str plug;size 12;for 8 socket con connector,plasticcircular,metalcouplingring,strplug,size12,for8socketcon Cable socket, Trim Trio 8-pin Trim Trio UTG 8P Female 12, UTG612-8SN, Souriau Souriau UTG 系列 8路 电缆安装 直向 连接器 插头 , 母触点, 插入式接合
SM14M-1S6
Souriau
Standard Circular Contacts Trim Trio Pin Crimp 14 AWG Contact Sz 16 Contact PIN Crimp ST Cable Mount Reel CONTACT PIN CRIMP 14AWG GOLD
SM24ML-1D70
Souriau
Standard Circular Contacts Trim Trio Pin Crimp 24 AWG Contact Sz 16 Contact PIN Crimp ST Cable Mount Loose Piece CONTACT PIN CRIMP 24-26AWG GOLD Gold flash crimp pin contact,26-24awg connectorcomponent,stampedandformedcrimppincont,size16,for26-24awgwire Contact;Pin;Stamped;Sz16;Crimp;26-24AWG;TrimTrioSMSer;GoldPlate Souriau 公 压接端接 圆形 连接器 触芯, 26 → 24 AWG 线规格
SM24M1TK6
Souriau
Standard Circular Connector Trim Trio Pin Crimp 24 AWG Contact Sz 16 Contact PIN Crimp ST Cable Mount Reel CONTACT PIN CRIMP 24-26AWG TIN CIRCULAR CONTACT, PIN, 26-24AWG, CRIMP tapeandreelcontacts
SM16M1TK6
Souriau
Standard Circular Contacts Trim Trio Pin Crimp 16 AWG Contact Sz 16 Contact PIN Crimp ST Cable Mount Reel CONTACT PIN CRIMP 16-18AWG TIN CIRCULAR CONTACT, PIN, 16AWG, CRIMP Male #16 Stamped and formed crimp contact 2PCSTRIPHYFPIN#18-16
RM16M23D28
Souriau
Standard Circular Contacts MACHINED PIN 20-16 Contact PIN Crimp ST Cable Mount Bulk CONTACT PIN CRIMP 16-20AWG GOLD connector comp;size 16 machined crimp pin contact;for 20-16awg wire;gold plated CONTACT, PIN, 20-16AWG, CRIMP connectorcomp,size16machinedcrimppincontact,for20-16awgwire,goldplated Contact;Pin;Machined;Sz16;Crimp;20-16AWG;TrimTrioRMSer;GoldPlate
SM14M1TK6
Souriau
Standard Circular Contacts Trim Trio Pin Crimp 14 AWG Contact Sz 16 CONTACT PIN CRIMP 14AWG TIN CIRCULAR CONTACT, PIN, 14AWG, CRIMP
SM24M-1S6
SOURIAU
Contact PIN Crimp ST Cable Mount Reel CONTACT PIN CRIMP 24-26AWG GOLD
SM20M-1S6
SOURIAU
Contact PIN Crimp ST Cable Mount Reel CONTACT PIN CRIMP 20-22AWG GOLD 2PCSTRIPHYFPIN#22-20
SM20ML-1TK6
SOURIAU
Contact PIN Crimp ST Cable Mount Loose Piece CONTACT PIN CRIMP 20-22AWG TIN Tin plate crimp pin contact,22-20awg connectorcomponent,stampedandformedcrimpcontact,size16,for22-20awgwire Contact;Pin;Stamped;Sz16;Crimp;22-20AWG;TrimTrioSMSer;TinPlate Souriau 公 压接端接 圆形 连接器 触芯, 22 → 20 AWG 线规格
SM24ML-1S6
SOURIAU
Contact PIN Crimp ST Cable Mount Loose Piece CONTACT PIN CRIMP 24-26AWG GOLD connectorcomponent,stampedandformedcrimppincontact,size16,26-24awgwire Contact;Pin;Stamped;Sz16;Crimp;26-24AWG;TrimTrioSMSer;GoldFlashAll
SM14ML-1TK6
SOURIAU
Contact PIN Crimp ST Cable Mount Loose Piece CONTACT PIN CRIMP 14AWG TIN Souriau G-Bantamate, MBG, SMS Qikmate, UT-Bantam, UTG, UTGS, UTP SeriesSize 16 Tin Plated Crimp Pin Connector, 14AWG connectorcomponent,stampedandformedcrimppincont,size16,for14awgwire Contact;Pin;Stamped;Sz16;Crimp;14AWG;TrimTrioSMSer;TinPlate Souriau 公 压接端接 圆形 连接器 触芯, 14 AWG 线规格
SM20M-1TK6
SOURIAU
Contact PIN Crimp ST Cable Mount Reel CONTACT PIN CRIMP 20-22AWG TIN tapeandreelcontacts
SM20ML-1S6
SOURIAU
Contact PIN Crimp ST Cable Mount Loose Piece CONTACT PIN CRIMP 20-22AWG GOLD connectorcomponent,stampedandformedcrimppincont,size16,for22-20awgwire Contact;Pin;Stamped;Sz16;Crimp;22-20AWG;TrimTrioSMSer;GoldFlashAll
SM16ML-1S6
SOURIAU
Contact PIN Crimp ST Cable Mount Loose Piece CONTACT PIN CRIMP 16-18AWG GOLD connectorcomponent,stampedandformedcrimppincont,size16,for18-16awgwire connectorcomp,size16stamped&formedcrimppincont,for18-16awgwire,gold
SM14ML-1S6
Souriau Connection Technology
CONTACT PIN CRIMP 14AWG GOLD connectorcomponent,stampedandformedcrimppincont,size16,for14awgwire Contact;Pin;Stamped;Sz16;Crimp;14AWG;TrimTrioSMSer;GoldFlashAll
SM16ML-1D70
Souriau Connection Technology
CONTACT PIN CRIMP 16-18AWG GOLD connector component;stamped and formed crimp pin cont;size 16;for 18-16awg wire connectorcomponent,stampedandformedcrimppincont,size16,for18-16awgwire Contact;Pin;Stamped;Sz16;Crimp;18-16AWG;TrimTrioSMSer;GoldPlate

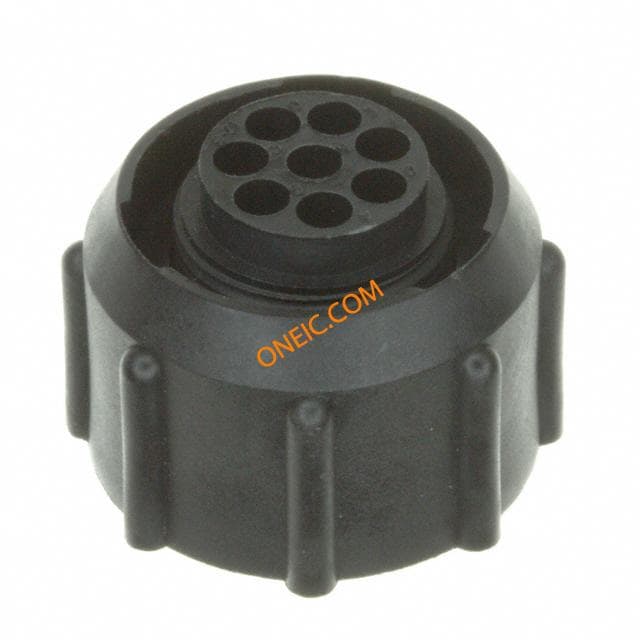

UTP6128S
