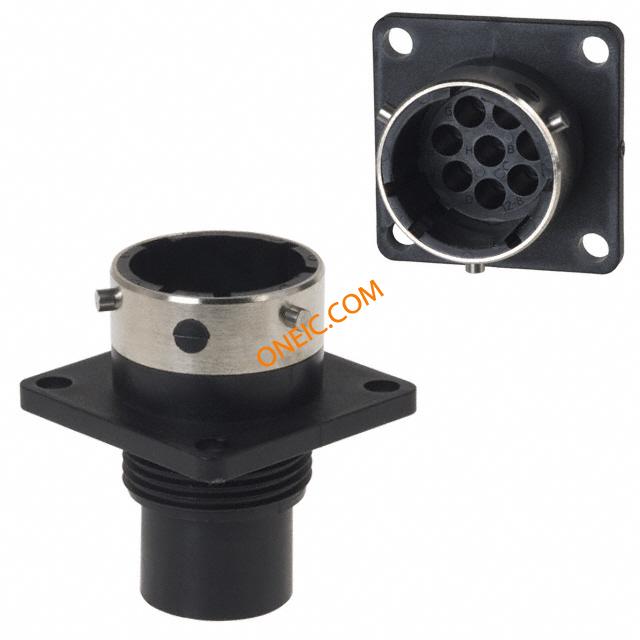

UTG0128P
| 制造商 | SOURIAU SAS |
| 描述 | Conn CPC With Metal Coupling PIN 8 POS Crimp ST Wall Mount 8 Terminal 1 Port Bag CONN RCPT MALE 8POS WALL MT CIRCULAR CONN, RECEPTACLE, 8 WAY, PANEL Conn.;Circ.;Socket;12ShellSize;MaleInsert;8#16PinCnts;PnlMnt:UTG |
| 分类 |
商业参数
| 其他名称 | SOU1107 | 标准包装数量 | 50 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85369010 | 材料阻燃等级 | :UL94V-0 |
电气参数
| 绝缘电阻 | :5000Mohm | ||
机械参数
| 深度 | 26.2 | 高度 | 26.2 |
| 重量 | 0.01075 | 包装方式 | Bag |
| 出线方向 | No | 方向 | Keyed |
| 端接方式 | Crimp | 触点尺寸 | 16 |
| 触头类型 | 8Signal | 安装类型 | Wall Mount |
| 连接器类型 | Receptacle for Male Contacts | 紧固类型 | Bayonet Lock |
| 插入角度 | :12-8 | 本体材料 | :Glass Filled Thermoplastic |
| 总长度 | 31.7 | 第一触头极性 | PIN |
| 触点数 | 8 | 位数 | 8 |
| 外壳尺寸-插件 | 12-8 | 外壳材料及表面处理 | Thermoplastic, Glass Filled |
| 第一连接器安装类型 | :Panel | 外壳尺寸-插入件（转换至） | 12-8 |
产品信息
| 备注 | Contacts Not Provided | 类型 | CPC With Metal Coupling |
| 连接器性别 | RCP | 系列 | :UTG |
环境参数
| NEMA 机架尺寸 | :IP67 | 工作温度 | :125°C |
