点击放大查看

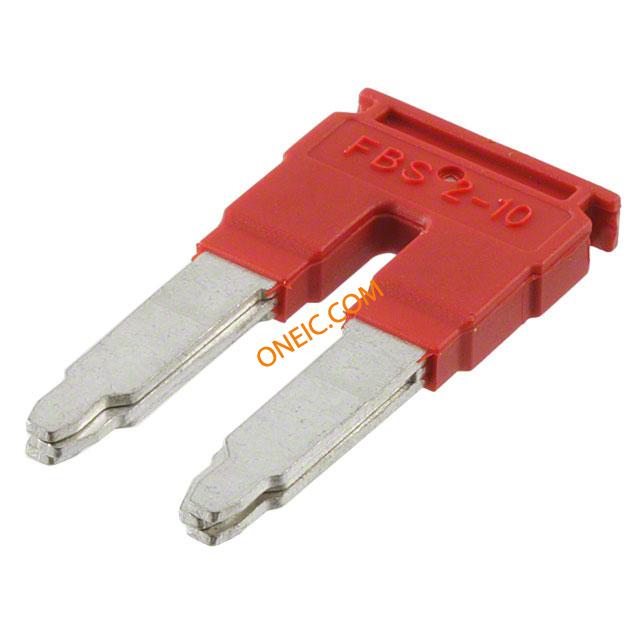

3005947

制造商	Phoenix Contact GmbH & Co. KG
描述	Terminal Block Tools & Accessories FBS 2-10 2 POS BRIDGE Conn Jumper M 2 POS ST BRIDGE TERM BLOCK 2POS Phoenix Contact 3005947 Plug In Bridge Terminal Block, Series: FBS Bridge;Plug-InBridge;2;Red;Crossconnectionsinthebridgeshaft. Comb bridge; ways:2; Width:10mm Phoenix Contact FBS 系列 2 极跳片
分类	连接器解决方案接线端子接线端子与连接器（通用型）

对参数有疑问？问 AI 助手

商业参数

产品	Tools & Accessories	交货时间	20 Days
商标名	CLIPLINE COMPLETE	子类别	Connector Jumpers and Shunts
产品类别	Terminal Block Tools & Accessories	标准包装数量	10
工厂包装数量	10

合规参数

RoHS

Lead free / RoHS Compliant

欧盟RoHS

Compliant

电气参数

极数

输出数量

2Circuits

机械参数

颜色	Red	宽度	10mm
重量	0.249387 oz	绝缘类型	Insulated
外壳颜色	Red	安装类型	Straight
排数	1	连接器用途	comb bridge
包装数量	10	主要材料	Bridge
插针孔直径	10mm	触点数	2
位数	2	绝缘材料 - 材质	PA

产品信息

SPG	10	类型	Jumper
样式	Flat Pins	连接器性别	M
系列	FBS	制造商全称	FBSSeries
附件类型	Plug In Bridge	单元数量	1
行业别名	FBS 2-10	基础产品编号	FBS2-10
适用产品/相关产品	CLIPLINE Series

文档与媒体

PDF 文档

3005947
