3049343
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | DIN Rail Terminal Blocks RTO 8 Conn Feed-Through Modular Terminal Blocks F 2 POS Screw 125A CONN TERM BLOCK TerminalBlock;FeedThrough;RTO8;14AWG;Gray;125A;1000V Splice terminal: rail; ways:1; terminals:2; grey; polyamide; 1000V |
| 分类 |
商业参数
| 商标名 | CLIPLINE RT | 其他名称 | RTO 8 |
| 产品类别 | DIN Rail Terminal Blocks | 标准包装数量 | 25 |
| 工厂包装数量 | 25 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 材料阻燃等级 | UL94 V-0 | ||
电气参数
| 电流 - UL | 115A | UL电压 | 600V |
| 电流 - IEC | 125A | IEC电压 | 1000V |
| 额定电压 | 1 kV | 极数 | 1 |
| 连接器阻抗 | rail | 最大额定电流 | 125 A |
| 最小输入电压 | 1000V | ||
机械参数
| 颜色 | Gray | 深度 | 20.2 |
| 宽度 | 20.2 mm | 高度 | 62.2mm |
| 长度 | 84 mm | 重量 | 2.865657 oz |
| 导线线规 | 2-14 | 端接方式 | Screw |
| 基体材料 | polyamide | 安装类型 | screw terminal |
| 安装样式 | DIN Rail | 排数 | 2 |
| 壳体材料 | Polyamide | 总长度 | 84 |
| 端子宽度 | 20.2mm | 内径（直径） | 8.4mm |
| 端接样式 | Bolt and Nut | 连接器颜色 | grey |
| 触点数 | 2 | 位数 | 2 |
| 绝缘材料 - 材质 | Polyamide (PA), Nylon | 螺纹/螺钉/孔尺寸 | M8 |
| 线规或范围 - AWG | 2-14 AWG | 线规或范围 - mm² | 2.5-35mm² |
产品信息
| 类型 | Feed-Through Modular Terminal Blocks | 连接器性别 | F |
| 系列 | RT | 单元数量 | 1 |
| 层数 | 1 | ||
文档与媒体
相关型号
1204119
Phoenix Contact
Mounting Hardware NS 35/7.5 PERF. WH PRICED PER METER Din Rail 35mm DIN RAIL 35MMX7.5MM SLOTTED 2M NS 35/ 7,5 WH PERF 2000MM NS35/7.5PERF.WH
0806602
Phoenix Contact
Mounting Hardware NS 35/15 - 2 METERS PRICED PER METER DIN RAIL 35MMX15MM SLOTTED 2M Din Rail 35mm DINrail35mmNS35/15PERFORATEDWH

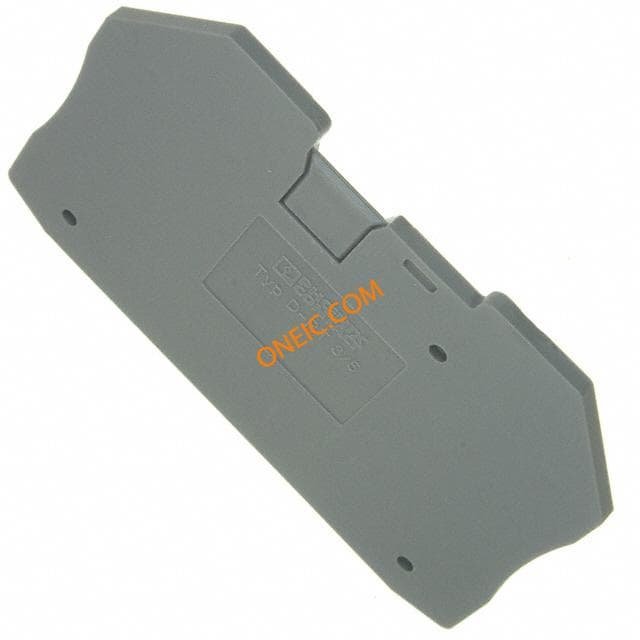

3049194
Phoenix Contact
ターミナルブロック・ツールとアクセサリ D-RT 8 END COVER Connector Accessories Cover Gray END COVER GRAY Terminal Block Tools & Accessories D-RT 8 END COVER Cover;TermBlk;RT-8Series;Gray;2.2mmW

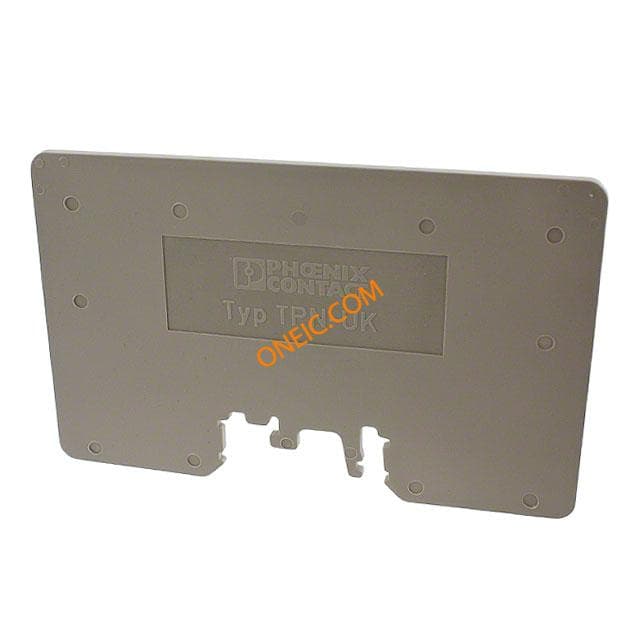

3003062
